Wellbore #00 Wellbore Classification: GW Status: PR - 12/6/2004 Measured TD: 8850 ft. Vertical TD: 8773 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 12/6/2004 | | Wellbore Permit | | | Permit #: | 20040340 | Expiration Date: | 3/8/2005 | | Proposed Depth/Form: | 8793 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139 , Unit Acreage: 640, Drill Unit: SEC. 1 |
| | |

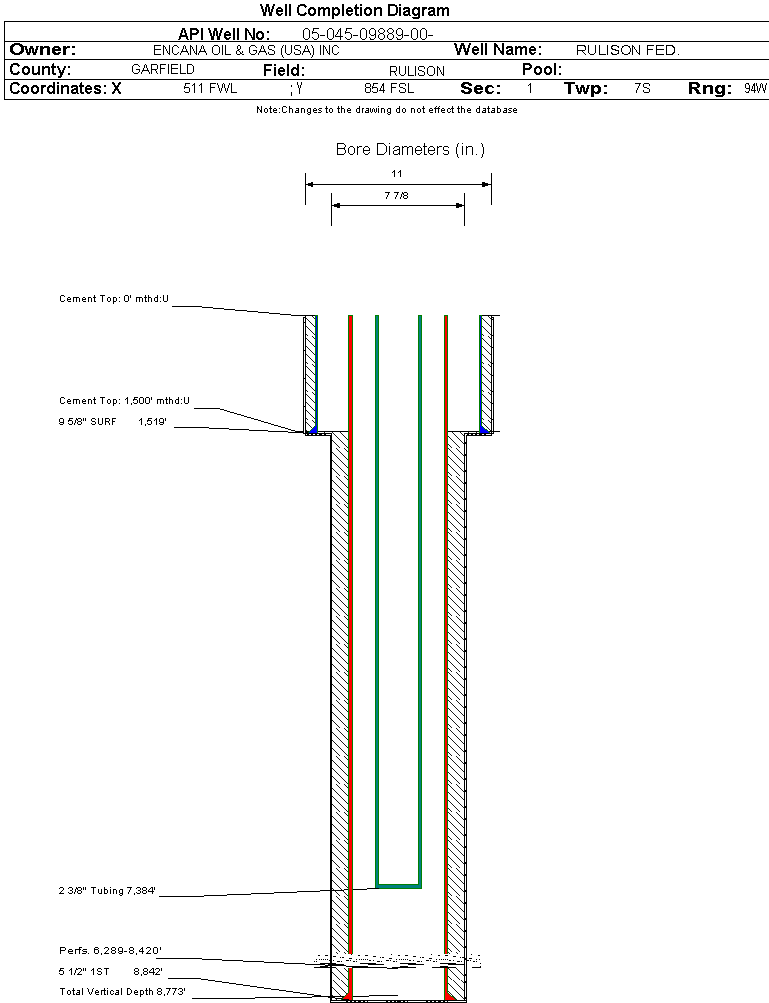

| Wellbore Completed | | Completion Date: | 12/5/2004 | | Spud Date: | 5/2/2004 | Spud Date Is: | ACTUAL | | Measured TD: | 8850 ft. | Measured PB depth: | 8725 ft. | | True Vertical TD: | 8773 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec: Twp: | Footage: 403 FSL 1229 FWL | | Bottom Hole Location: | Sec: Twp: | Footage: 341 FSL 1218 FWL | | Log Types: | RESERVOIR SATURATION TOOL/GR/CCL,CBL/GR/CCL/TEMP.LOG | | Log Types: | CBL/GR/CCL, RTS/GR/CCL | | Casing: | String Type: SURF, Hole Size: 11 in., Size: 9.625 in., Top: 0 ft., Depth: 1519 ft., Weight: 360 , Citings Type: ACTUAL | | Cement: | Sacks: 500, Top: 0 ft., Bottom: 1519 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 8842 ft., Weight: 17 , Citings Type: ACTUAL | | Cement: | Sacks: 1370, Top: 1500 ft., Bottom: 8850 ft., Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 5432 ft. | N | N | | WILLIAMS FORK | 5433 ft. | 8715 ft. | N | N | | ROLLINS | 8716 ft. | 8850 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 12/6/2004 Interval Top: 6289 ft. Interval Bottom: 8420 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | N/A | Choke Size: | 0.219 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 12/5/2004 | | Treatment Summary: | STAGES 1-8 TREATED WITH 24,006 BBLS OF SLICKWATER, 903,022 LBS 20/40 SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7384 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 12/6/2004 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 82 | | BBLS_OIL | 27 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 82 | | CALC_BBLS_OIL | 27 | | CALC_GOR | 51519 | | CALC_MCF_GAS | 1391 | | CASING_PRESS | 2205 | | MCF_GAS | 1391 | | TUBING_PRESS | 1804 |
| | Perforation Data: | | Interval Top: | 6289 ft. | # Of Holes: | 138 | | Interval Bottom: | 8420 ft. | Hole Size: | 0.36 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 22855 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 10.800 |
| Average MCFE per Day | 62.650 |
| Federal Financial Assurance | i | Y |
|
|
