COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09875		Well Classification: OW Status: PR - 7/1/2004
Well Name/No:AMERICAN SODA #GM 532-3
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date7/1/2004
FacilityID:271406LocationID:334802
County:GARFIELD #045Location:SWNE 3 7S96W 6
Field:GRAND VALLEY - #31290Elevation:5628 ft.
Basin:PICEANCE BASIN
Planned Location:2312FNL  1985 FELLat/Long: 39.466909 / -108.093036Lat/Long Source: Calculated From Footages
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PR - 7/1/2004             Measured TD: 6760 ft.    Vertical TD: 6636 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PR - 7/1/2004
Wellbore PermitDIRECTIONAL
Permit #:20040289 Expiration Date:2/26/2005
Proposed Top PZ Location:Sec: Twp: Footage: 2125 FNL  2189 FEL
Bottom Hole Location:Sec: Twp: Footage: 2123 FNL  2190 FEL
Proposed Depth/Form:6635 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 320, Drill Unit: N/2
Wellbore Completed
Completion Date:5/27/2004
Spud Date:4/29/2004Spud Date Is:ACTUAL
Measured TD:6760 ft.Measured PB depth:6647 ft.
True Vertical TD:6636 ft.True Vertical PB depth:6523 ft.
Top PZ Location:Sec:3 Twp: 7S 96WFootage: 1320 FNL  1897 FEL
Bottom Hole Location:Sec:3 Twp: 7S 96WFootage: 1320 FNL  1897 FEL
Log Types:HIGH RESOLUTION INDUCTION SPECTRAL DENSITY DUAL SPACED NEUTRON; CBL

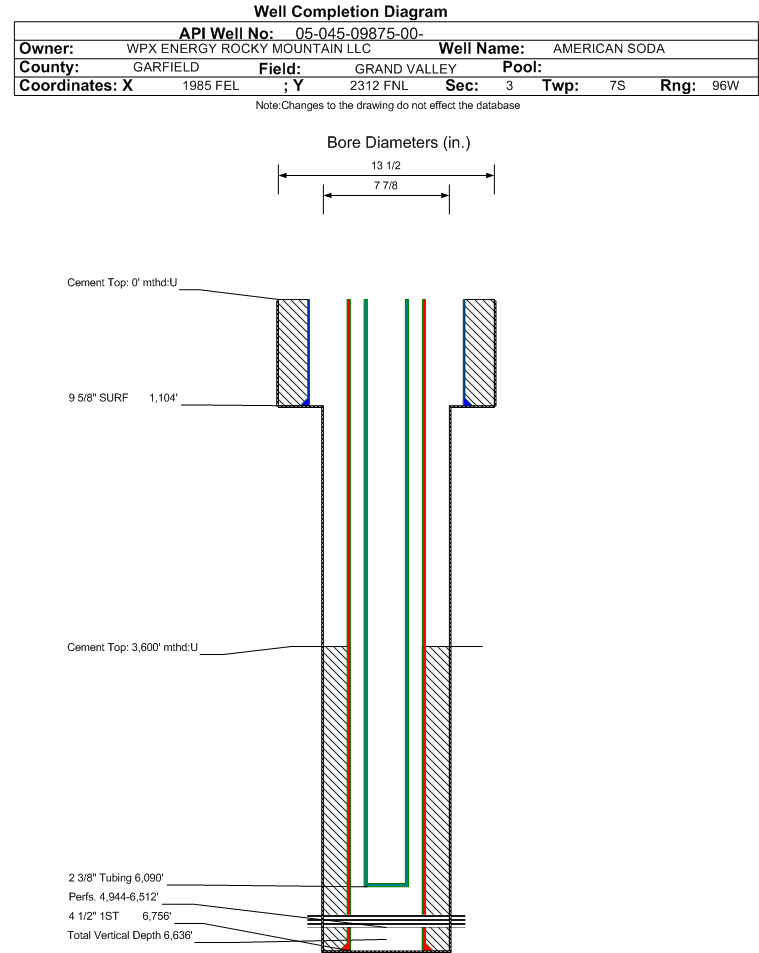

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 1104 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 515, Top: 0 ft., Bottom: 1104 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 6756 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 875, Top: 3600 ft., Bottom: 6756 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
FORT UNION2177 ft.NN
MESAVERDE3653 ft.NN
CAMEO6123 ft.NN
ROLLINS6640 ft.NN

Formation WFCM                     Formation Classification:  OW                     Status:  PR - 7/1/2004                  Interval Top: 4944 ft.    Interval Bottom: 6512 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.266 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:7/1/2004
Treatment Summary:SEE OGCC COMMENTS
Tubing Size:2.375 in.Tubing Setting Depth:6090 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/1/2004Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_GOR 128100
CALC_MCF_GAS 1281
CASING_PRESS 1135
MCF_GAS 1281
TUBING_PRESS 981
Perforation Data:
Interval Top:4944 ft.# Of Holes:69
Interval Bottom:6512 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)12
Total Gas Produced (MCF)6412
GOR534333
GOR DeterminationMCFE
Average BOE per Day3.063
Average MCFE per Day17.763

 Federal Financial Assurance  i

 Tribal Well  i No
