COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09872		Well Classification: GW Status: PR - 10/1/2020
Well Name/No:PA #512-34
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date10/1/2020
FacilityID:271409LocationID:335254
County:GARFIELD #045Location:SWNW 34 6S95W 6
Field:PARACHUTE - #67350Elevation:5302 ft.
Basin:PICEANCE BASIN
Planned Location:2121FNL  743 FWLLat/Long: 39.482449 / -107.991203Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.482549 / -107.991165Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 10/1/2020             Measured TD: 7119 ft.    Vertical TD: 7067 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 10/1/2020
Wellbore PermitDIRECTIONAL
Permit #:20040380 Expiration Date:2/26/2005
Proposed Top PZ Location:Sec: Twp: Footage: 2454 FNL  167 FWL
Bottom Hole Location:Sec: Twp: Footage: 2454 FNL  167 FWL
Proposed Depth/Form:7175 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 320, Drill Unit: N/2
Wellbore Completed
Completion Date:8/23/2004
Spud Date:7/25/2004Spud Date Is:ACTUAL
Measured TD:7119 ft.Measured PB depth:7057 ft.
True Vertical TD:7067 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 2454 FNL  167 FWL
Bottom Hole Location:Sec: Twp: Footage: 2454 FNL  167 FWL
Log Types:HI DEF INDUCTION COMP Z-DENSILOG COMP NEUTRON GR/CAL, CBL,MUD

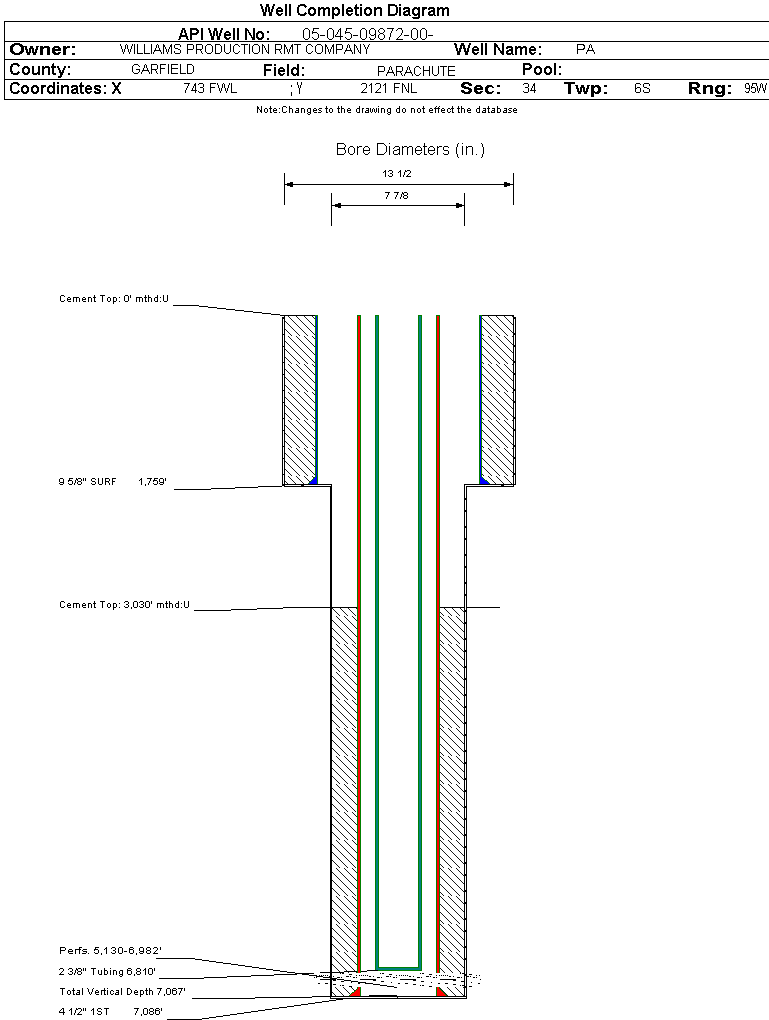

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1759 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 640, Top: 0 ft., Bottom: 1758 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7086 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 875, Top: 3030 ft., Bottom: 7085 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1565 ft.NN
FORT UNION1843 ft.NN
MESAVERDE3759 ft.NN
WILLIAMS FORK-CAMEO COAL6368 ft.NN
ROLLINS7086 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 10/1/2020                 Interval Top: 5130 ft.    Interval Bottom: 6982 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:0.203 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:8/23/2004
Treatment Summary:4000 GALS 7-1/2 HCL, 656476# 20/40, 15520 BBLS SLICK WTR.
Tubing Size:2.375 in.Tubing Setting Depth:6810 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/20/2004Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1068
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1261
CASING_PRESS 1537
TUBING_PRESS 1451
Perforation Data:
Interval Top:5130 ft.# Of Holes:98
Interval Bottom:6982 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)24
Total Gas Produced (MCF)19010
GOR792083
GOR DeterminationMCFE
Average BOE per Day9.047
Average MCFE per Day52.489

 Federal Financial Assurance  i

 Tribal Well  i No
