COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09865		Well Classification: GW Status: PA - 8/3/2022
Well Name/No:BENZEL #2-16B (I2W)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date8/3/2022
FacilityID:271324LocationID:334906
County:GARFIELD #045Location:NESE 2 7S93W 6
Field:MAMM CREEK - #52500Elevation:6176 ft.
Basin:PICEANCE BASIN
Planned Location:2099FSL  1131 FELLat/Long: 39.473071 / -107.737285Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.473170 / -107.737210Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 8/3/2022             Measured TD: 8112 ft.    Vertical TD: 7852 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 8/3/2022
Wellbore PermitDIRECTIONAL
Permit #:20040192 Expiration Date:2/19/2005
Proposed Top PZ Location:Sec:2 Twp: Footage: 670 FSL  1300 FEL
Bottom Hole Location:Sec:2 Twp: Footage: 670 FSL  1300 FEL
Proposed Depth/Form:8600 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit:HUNTER MESA UNI Unit Number:COC 55972X
Formation And Spacing:Code: RLNS , Formation: ROLLINS , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:8/2/2004
Spud Date:4/4/2004Spud Date Is:ACTUAL
Measured TD:8112 ft.Measured PB depth:8063 ft.
True Vertical TD:7852 ft.True Vertical PB depth:
Top PZ Location:Sec:2 Twp: Footage: 670 FSL  1300 FEL
Bottom Hole Location:Sec:2 Twp: Footage: 670 FSL  1300 FEL
Log Types:CBL/GR, RES SAT TEMP/GR

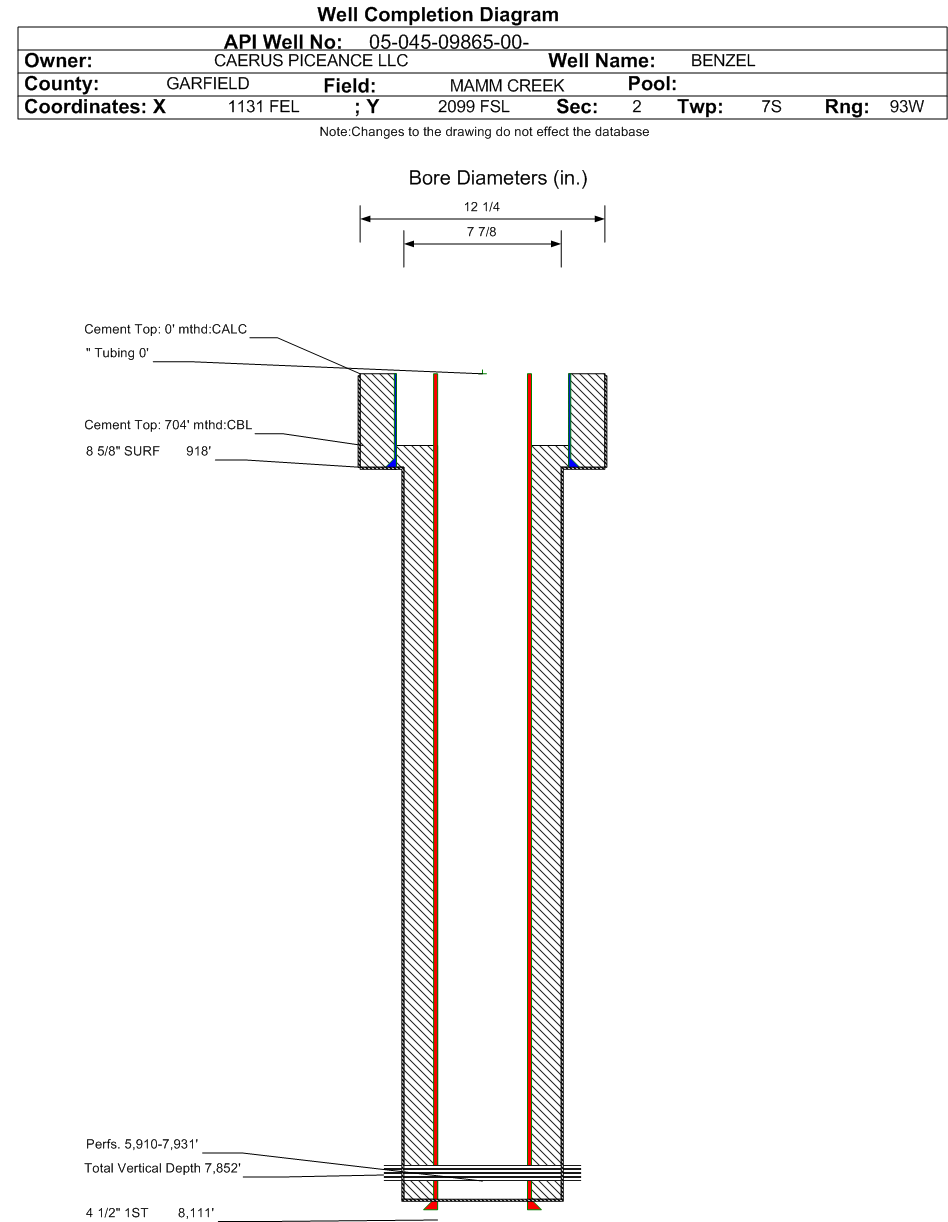

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 918 ft., Weight: 24# , Citings Type: ACTUAL
Cement:Sacks: 475, Top: 0 ft., Bottom: 918 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8111 ft., Weight: 11.6# , Citings Type: ACTUAL
Cement:Sacks: 1180, Top: 704 ft., Bottom: 8111 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.4576 ft.NN
WILLIAMS FORK4577 ft.8112 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  AB - 8/3/2022                  Interval Top: 5910 ft.    Interval Bottom: 7931 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORKCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/2/2004
Treatment Summary:STAGES 1 THROUGH 7 WERE TREATED WITH A TOTAL OF 28,014 BBLS SLICKWATER AND 870,560# 20-40 SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 238
BBLS_OIL 10
BTU_GAS 1170
CALC_BBLS_H2O 248
CALC_BBLS_OIL 10
CALC_GOR 159100
CALC_MCF_GAS 1660
CASING_PRESS 2108
MCF_GAS 1591
TUBING_PRESS 1792
Perforation Data:
Interval Top:5910 ft.# Of Holes:138
Interval Bottom:7931 ft.Hole Size:0.1 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY08/03/2022
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i Y

 Tribal Well  i No
