COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09860		Well Classification: GW Status: PR - 6/27/2004
Well Name/No:PA #434-28
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC 66632
Facility Status:PRStatus Date6/27/2004
FacilityID:271283LocationID:335343
County:GARFIELD #045Location:SWSE 28 6S95W 6
Field:PARACHUTE - #67350Elevation:5413 ft.
Basin:PICEANCE BASIN
Planned Location:732FSL  1589 FELLat/Long: 39.490259 / -107.999463Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.490330 / -107.999447Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 6/27/2004             Measured TD: 7465 ft.    Vertical TD: 7408 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 6/27/2004
Wellbore PermitDIRECTIONAL
Permit #:20040230 Expiration Date:2/18/2005
Proposed Top PZ Location:Sec: Twp: Footage: 1163 FSL  2102 FEL
Bottom Hole Location:Sec: Twp: Footage: 1168 FSL  2112 FEL
Proposed Depth/Form:7480 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 320, Drill Unit: E/2
Wellbore Completed
Completion Date:5/22/2004
Spud Date:4/4/2004Spud Date Is:ACTUAL
Measured TD:7465 ft.Measured PB depth:7433 ft.
True Vertical TD:7408 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 1163 FSL  2102 FEL
Bottom Hole Location:Sec: Twp: Footage: 1168 FSL  2112 FEL
Log Types:HI RES INDUCTION SPECTRAL DENSITY DUAL SPACED NEUTRON, CBL

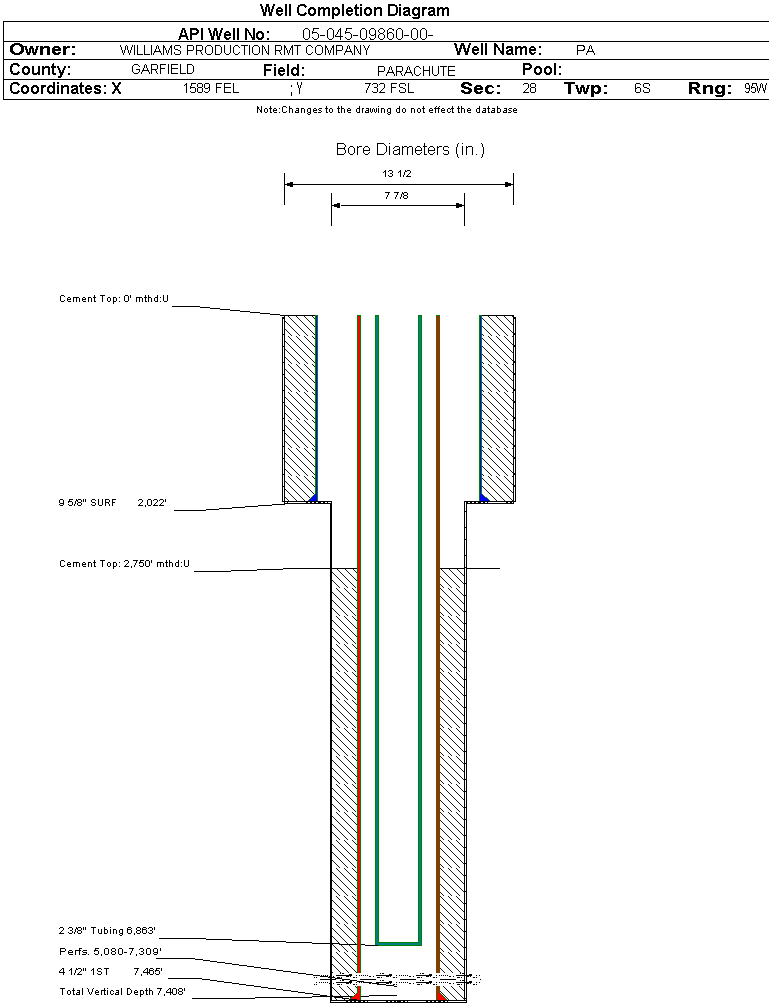

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2022 ft., Weight: 32.2 , Citings Type: ACTUAL
Cement:Sacks: 750, Top: 0 ft., Bottom: 2022 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7465 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 905, Top: 2750 ft., Bottom: 7465 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1786 ft.NN
FORT UNION2141 ft.NN
MESAVERDE4020 ft.NN
CAMEO6668 ft.NN
ROLLINS7369 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 6/27/2004                 Interval Top: 5080 ft.    Interval Bottom: 7309 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:5/22/2004
Treatment Summary:6680-7309';1000 GAL 7 1/2% HCL,133514#30/50,3048 BBL SLICK WATER;6508-6791;;750 GAL 7 1.2% HCL,140635# 30/50,3229 BBL SLICK WTR;5958-6364';750 GAL 7 1/2% HCL,127001#30/50,2963 BLS SLK WTR.;5476-5771'750GAL 7 1/2% HCL,129668#30/50,2985 BBL ;5080-5367';CONT
Tubing Size:2.375 in.Tubing Setting Depth:6863 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/27/2004Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
CALC_GOR 136300
CALC_MCF_GAS 1363
CASING_PRESS 1695
TUBING_PRESS 1578
Perforation Data:
Interval Top:5080 ft.# Of Holes:96
Interval Bottom:7309 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)13
Total Gas Produced (MCF)11030
GOR848461
GOR DeterminationMCFE
Average BOE per Day5.247
Average MCFE per Day30.437

 Federal Financial Assurance  i

 Tribal Well  i No
