COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09859		Well Classification: OW Status: PR - 5/27/2005
Well Name/No:PA #44-28
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC 66632
Facility Status:PRStatus Date5/27/2005
FacilityID:271285LocationID:335356
County:GARFIELD #045Location:SESE 28 6S95W 6
Field:PARACHUTE - #67350Elevation:5365 ft.
Basin:PICEANCE BASIN
Planned Location:200FSL  413 FELLat/Long: 39.488799 / -107.995313Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.488887 / -107.995330Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PR - 5/27/2005             Measured TD: 7402 ft.    Vertical TD: 7352 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PR - 5/27/2005
Wellbore PermitDIRECTIONAL
Permit #:20040229 Expiration Date:2/18/2005
Proposed Top PZ Location:Sec: Twp: Footage: 220 FSL  960 FEL
Bottom Hole Location:Sec: Twp: Footage: 220 FSL  960 FEL
Proposed Depth/Form:7425 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 320, Drill Unit: E/2
Wellbore Completed
Completion Date:3/31/2005
Spud Date:2/4/2005Spud Date Is:ACTUAL
Measured TD:7402 ft.Measured PB depth:7385 ft.
True Vertical TD:7352 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 220 FSL  960 FEL
Bottom Hole Location:Sec: Twp: Footage: 220 FSL  960 FEL
Log Types:RESERVOIR MONITOR TOOL ELITE, CBL

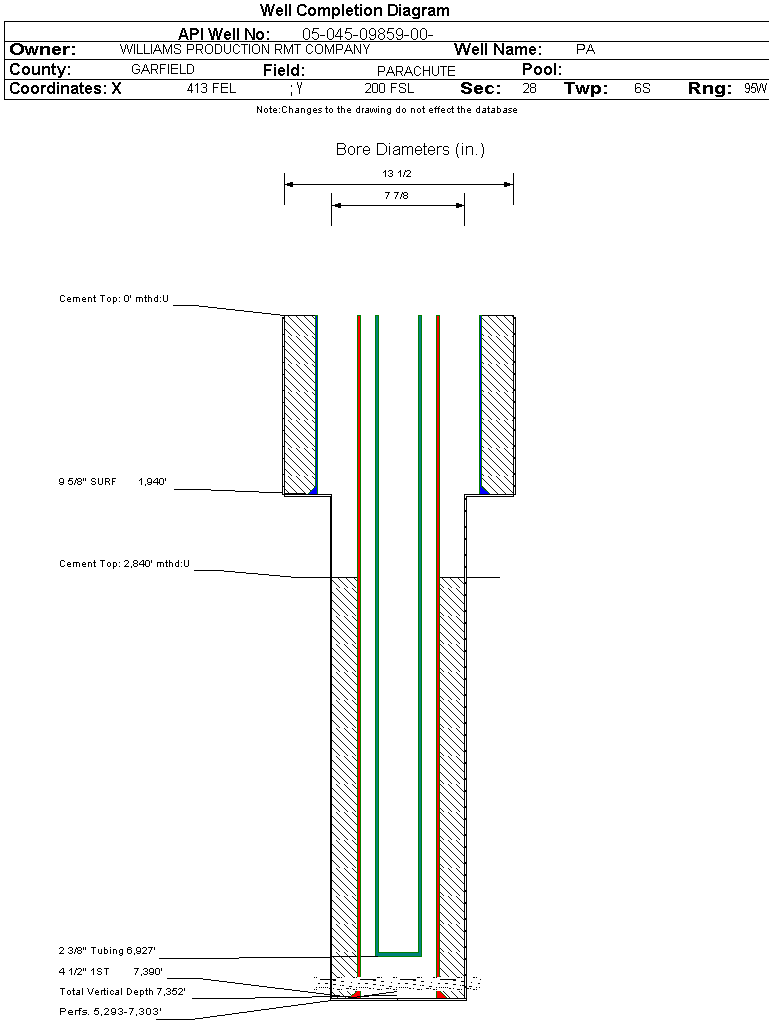

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1940 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 515, Top: , Bottom: 1939 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7390 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 913, Top: 2840 ft., Bottom: 7390 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1731 ft.NN
FORT UNION2012 ft.NN
MESAVERDE3966 ft.NN
CAMEO6613 ft.NN
ROLLINS7326 ft.NN

Formation WFCM                     Formation Classification:  OW                     Status:  PR - 5/27/2005                 Interval Top: 5293 ft.    Interval Bottom: 7303 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:3/31/2005
Treatment Summary:4750 GALS 7 1/2% HCL, 882500# 30/50, 16195 BBLS SLICK WATER (SUMMARY)
Tubing Size:2.375 in.Tubing Setting Depth:6927 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/6/2005Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1477
CASING_PRESS 1661
MCF_GAS 1477
TUBING_PRESS 1576
Perforation Data:
Interval Top:5293 ft.# Of Holes:112
Interval Bottom:7303 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)33
Total Gas Produced (MCF)15326
GOR464424
GOR DeterminationMCFE
Average BOE per Day7.334
Average MCFE per Day42.512

 Federal Financial Assurance  i

 Tribal Well  i No
