COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09833		Well Classification: GW Status: PR - 6/29/2004
Well Name/No:CLOUGH #RWF 414-21
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date6/29/2004
FacilityID:271029LocationID:335341
County:GARFIELD #045Location:SWSW 21 6S94W 6
Field:RULISON - #75400Elevation:5288 ft.
Basin:PICEANCE BASIN
Planned Location:1194FSL  240 FWLLat/Long: 39.506639 / -107.901890Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.506764 / -107.901929Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 6/29/2004             Measured TD: 7825 ft.    Vertical TD: 7793 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 6/29/2004
Wellbore PermitDIRECTIONAL
Permit #:20040060 Expiration Date:1/28/2005
Proposed Top PZ Location:Sec: Twp: Footage: 1305 FSL  753 FWL
Bottom Hole Location:Sec: Twp: Footage: 1304 FSL  754 FWL
Proposed Depth/Form:7795 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 320, Drill Unit: S/2
Wellbore Completed
Completion Date:5/22/2004
Spud Date:4/30/2004Spud Date Is:ACTUAL
Measured TD:7825 ft.Measured PB depth:7780 ft.
True Vertical TD:7793 ft.True Vertical PB depth:7748 ft.
Top PZ Location:Sec: Twp: Footage: 1305 FSL  753 FWL
Bottom Hole Location:Sec: Twp: Footage: 1304 FSL  754 FWL
Log Types:RESERVOIR MONITOR TOOL ELITE, CBL

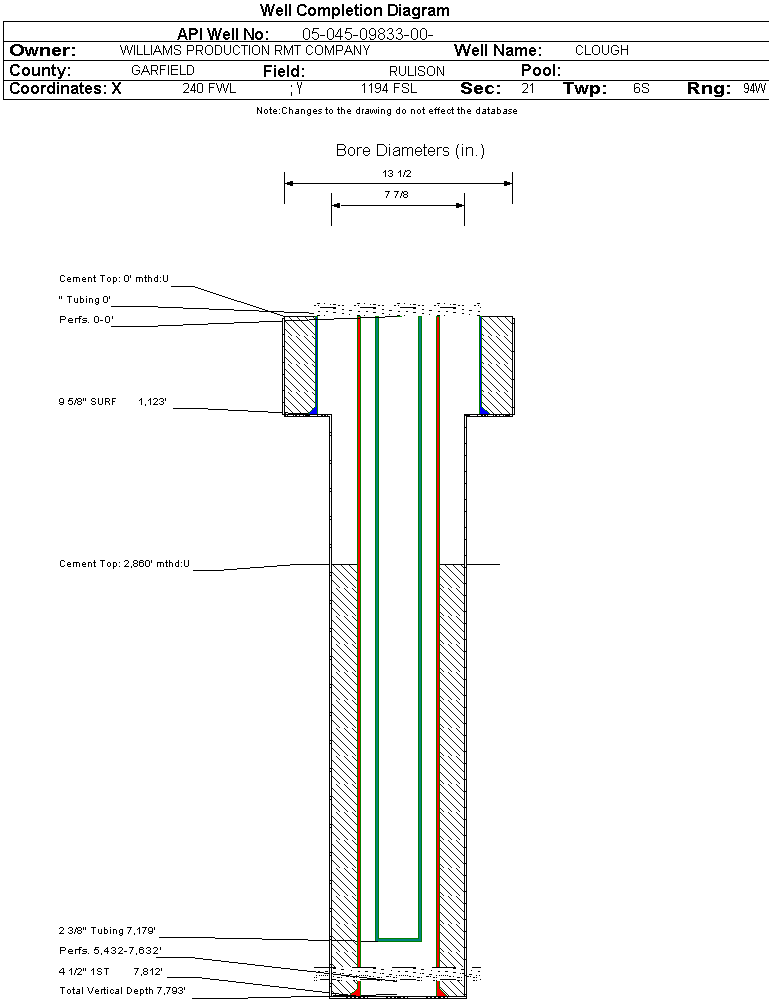

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1123 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 515, Top: 0 ft., Bottom: 1123 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7812 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1140, Top: 2860 ft., Bottom: 7812 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH1615 ft.NN
MESAVERDE4050 ft.NN
CAMEO6750 ft.NN
ROLLINS7699 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 6/29/2004                 Interval Top: 5432 ft.    Interval Bottom: 7632 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.234 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:5/22/2004
Treatment Summary:A) 7230'-7632' 1000 GALS 7 1/2% HCL, 122771# 20/40, 2825 BBLS SLICK WATER. B) 6516'-6875' 1000 GALS 7 1/2% HCL, 91933# 20/40, 2248 BBLS SLICK WATER. C) 6056'-6322' 750 GALS 7 1/2% HCL, 131349# 20/40, 3006 BBLS SLICK WATER. D) 5748'-5940' 750 GALS (CONT)
Tubing Size:2.375 in.Tubing Setting Depth:7179 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/29/2004Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_GOR 129200
CALC_MCF_GAS 1292
CASING_PRESS 1508
MCF_GAS 1292
TUBING_PRESS 1420
Perforation Data:
Interval Top:5432 ft.# Of Holes:86
Interval Bottom:7632 ft.Hole Size:0.34 in.

Formation WMFK                     Formation Classification:  GW                     Status:  CM - 6/29/2004

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORKCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:5/22/2004
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WMFK.
Perforation Data:
Interval Top:# Of Holes:
Interval Bottom:Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)31
Total Gas Produced (MCF)11888
GOR383483
GOR DeterminationMCFE
Average BOE per Day5.705
Average MCFE per Day33.066

 Federal Financial Assurance  i

 Tribal Well  i No
