COGIS - WELL SCOUT CARD

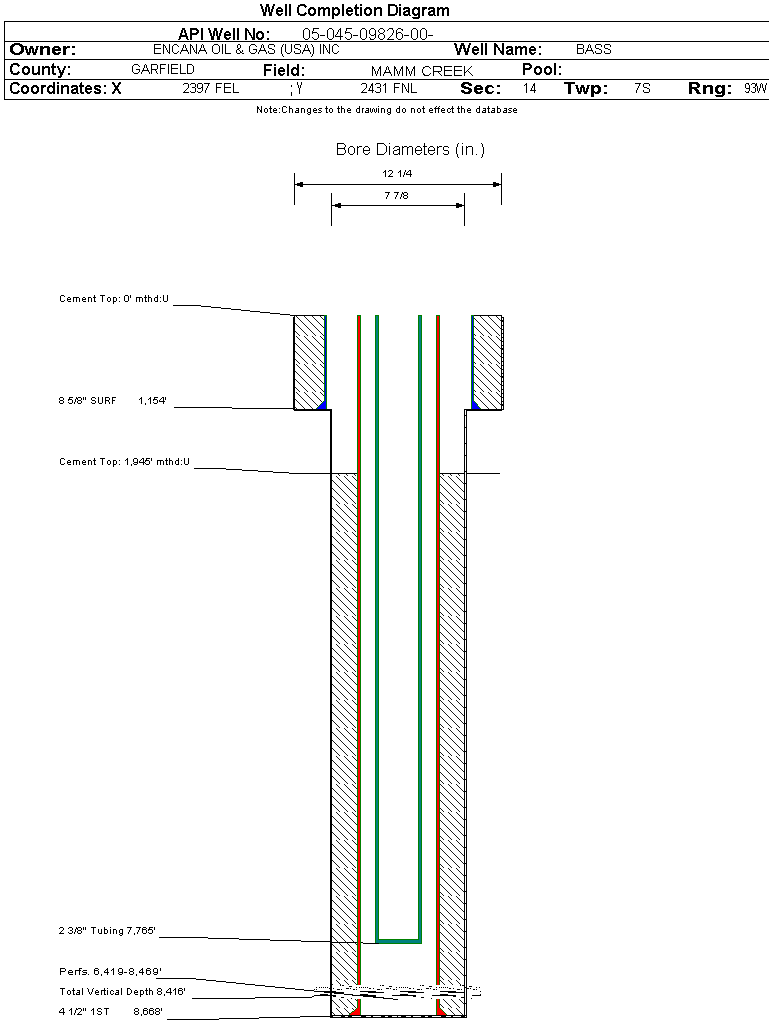

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09826		Well Classification: GW Status: PR - 12/15/2004
Well Name/No:BASS #14-11B(G14W)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date12/15/2004
FacilityID:271014LocationID:334610
County:GARFIELD #045Location:SWNE 14 7S93W 6
Field:MAMM CREEK - #52500Elevation:6553 ft.
Basin:PICEANCE BASIN
Planned Location:2431FNL  2397 FELLat/Long: 39.446081 / -107.741445Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.446230 / -107.741270Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 12/15/2004             Measured TD: 8668 ft.    Vertical TD: 8416 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 12/15/2004
Wellbore PermitDIRECTIONAL
Permit #:20040067 Expiration Date:1/27/2005
Proposed Top PZ Location:Sec:14 Twp: Footage: 2650 FSL  3960 FEL
Bottom Hole Location:Sec:14 Twp: Footage: 2630 FSL  1320 FWL
Proposed Depth/Form:8900 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit:HUNTER MESA UNI Unit Number:COC 55972X
Formation And Spacing:Code: RLNS , Formation: ROLLINS , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:12/13/2004
Spud Date:5/8/2004Spud Date Is:ACTUAL
Measured TD:8668 ft.Measured PB depth:8549 ft.
True Vertical TD:8416 ft.True Vertical PB depth:8298 ft.
Top PZ Location:Sec:14 Twp: Footage: 2650 FSL  3960 FEL
Bottom Hole Location:Sec:14 Twp: Footage: 2630 FSL  1320 FWL
Log Types:PEX, CBL/TEMP/GR/CCL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1154 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 585, Top: 0 ft., Bottom: 1154 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8668 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1145, Top: 1945 ft., Bottom: 8668 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.5498 ft.NN
WILLIAMS FORK5499 ft.8512 ft.NN
ROLLINS8513 ft.8668 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 12/15/2004                Interval Top: 6419 ft.    Interval Bottom: 8469 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:0.313 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:12/13/2004
Treatment Summary:STAGES 1 THROUGH 6 WERE TREATED WITH A TOTAL OF 23,781 BBLS SLICKWATER AND 1,084,940# OF 20-40 SAND.
Tubing Size:2.375 in.Tubing Setting Depth:7765 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/15/2004Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 100
BBLS_OIL 0
BTU_GAS 1170
CALC_BBLS_H2O 100
CALC_BBLS_OIL 0
CALC_GOR 0
CALC_MCF_GAS 1208
CASING_PRESS 1500
MCF_GAS 1208
TUBING_PRESS 900
Perforation Data:
Interval Top:6419 ft.# Of Holes:106
Interval Bottom:8469 ft.Hole Size:0.41 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)38
Total Gas Produced (MCF)22810
GOR600263
GOR DeterminationMCFE
Average BOE per Day10.877
Average MCFE per Day63.098

 Federal Financial Assurance  i Y

 Tribal Well  i No
