COGIS

Facility Detail

COGIS - WELL SCOUT CARD

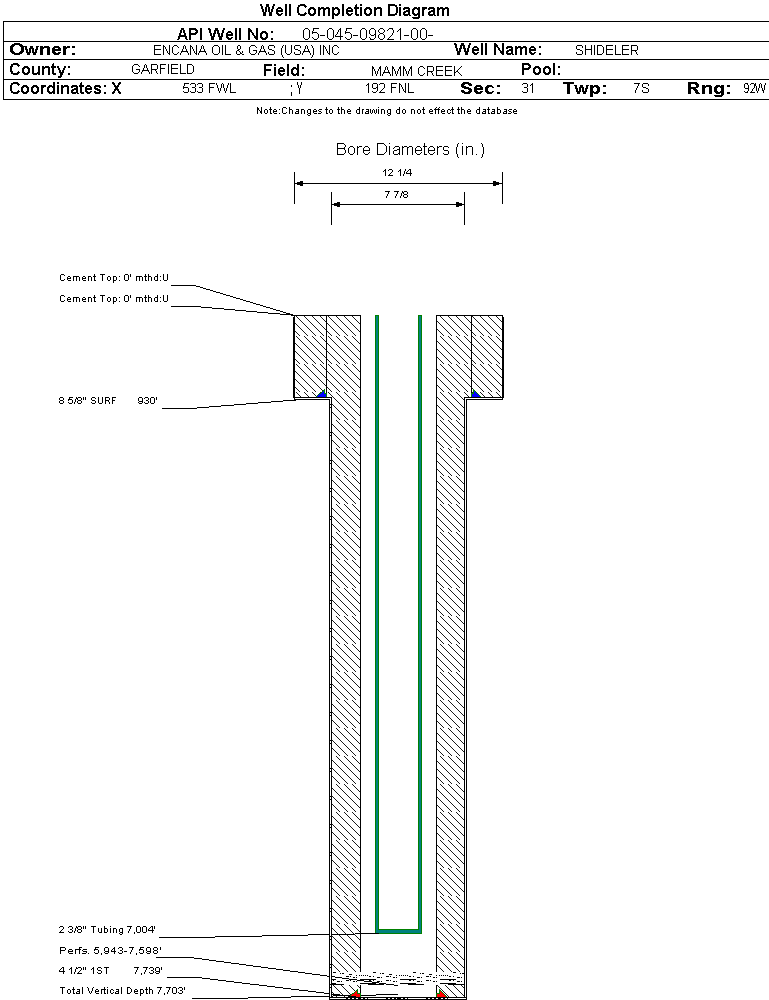

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09821		Well Classification: GW Status: SI - 6/1/2025
Well Name/No:SHIDELER #31-4A (C31E)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date6/1/2025
FacilityID:271009LocationID:414530
County:GARFIELD #045Location:NENW 31 7S92W 6
Field:MAMM CREEK - #52500Elevation:6750 ft.
Basin:PICEANCE BASIN
Planned Location:192FNL  533 FWLLat/Long: 39.409422 / -107.712354Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.409450 / -107.712240Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: SI - 6/1/2025             Measured TD: 7740 ft.    Vertical TD: 7703 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        SI - 6/1/2025
Wellbore PermitDIRECTIONAL
Permit #:20040062 Expiration Date:1/27/2005
Proposed Top PZ Location:Sec:25 Twp: Footage: 660 FSL  660 FEL
Bottom Hole Location:Sec:25 Twp: 7S 93W Footage: 660 FSL  660 FEL
Proposed Depth/Form:8800 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit:HUNTER MESA UNI Unit Number:COC 55972X
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:3/10/2004
Spud Date:2/26/2004Spud Date Is:ACTUAL
Measured TD:7740 ft.Measured PB depth:7602 ft.
True Vertical TD:7703 ft.True Vertical PB depth:
Top PZ Location:Sec:25 Twp: Footage: 660 FSL  660 FEL
Bottom Hole Location:Sec:25 Twp: 7S 93WFootage: 660 FSL  660 FEL
Log Types:CBL, PEX
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 884 ft., Depth: 930 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 480, Top: 0 ft., Bottom: 930 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 7696 ft., Depth: 7739 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1145, Top: 0 ft., Bottom: 7740 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.5059 ft.NN
WILLIAMS FORK5060 ft.7740 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  SI - 6/1/2025                  Interval Top: 5943 ft.    Interval Bottom: 7598 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:0.375 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:3/10/2004
Treatment Summary:STAGE 1: 7,367-7,598, 18 - 0.360" SHOTS 2818 BBLS OF SLICKWATER, 107000 LBS OF 20-40 SAND STAGE 2: 6,856-7,210, 22 - 0.360" SHOTS, 3668 BBLS OF SLICKWATER, 117000 LBS OF 20-40 SAND STAGE 3: 6,605-6,814, 16 - 0.360" SHOTS, 2497 BBLS OF SLICKWATER, (CONT)
Tubing Size:2.375 in.Tubing Setting Depth:7004 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/12/2004Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 10
BBLS_OIL 14
BTU_GAS 1170
CALC_BBLS_H2O 10
CALC_BBLS_OIL 14
CALC_GOR 166
CALC_MCF_GAS 2320
CASING_PRESS 1200
MCF_GAS 2320
Perforation Data:
Interval Top:5943 ft.# Of Holes:98
Interval Bottom:7598 ft.Hole Size:0.36 in.
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
10/2024 - 09/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)27
GOR
GOR DeterminationMCFE
Average BOE per Day0.013
Average MCFE per Day0.073

 Federal Financial Assurance  i Y

 Tribal Well  i No
