COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09797		Well Classification: GW Status: PR - 6/7/2004
Well Name/No:PUCKETT #GM 413-28
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC 46627
Facility Status:PRStatus Date6/7/2004
FacilityID:271034LocationID:335352
County:GARFIELD #045Location:NWSW 28 6S96W 6
Field:GRAND VALLEY - #31290Elevation:5445 ft.
Basin:PICEANCE BASIN
Planned Location:2039FSL  415 FWLLat/Long: 39.493278 / -108.121617Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.493411 / -108.121576Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 6/7/2004             Measured TD: 6755 ft.    Vertical TD: 6642 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 6/7/2004
Wellbore PermitDIRECTIONAL
Permit #:20032590 Expiration Date:1/28/2005
Proposed Top PZ Location:Sec: Twp: Footage: 2481 FSL  660 FWL
Bottom Hole Location:Sec: Twp: Footage: 2475 FSL  664 FWL
Proposed Depth/Form:6690 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 320, Drill Unit: W/2
Wellbore Completed
Completion Date:5/7/2004
Spud Date:3/13/2004Spud Date Is:ACTUAL
Measured TD:6755 ft.Measured PB depth:6723 ft.
True Vertical TD:6642 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 2481 FSL  660 FWL
Bottom Hole Location:Sec: Twp: Footage: 2475 FSL  664 FWL
Log Types:HIGH RESOLUTION IND.SPECTRAL DEN.DUAL SPACED NEU.,CBL

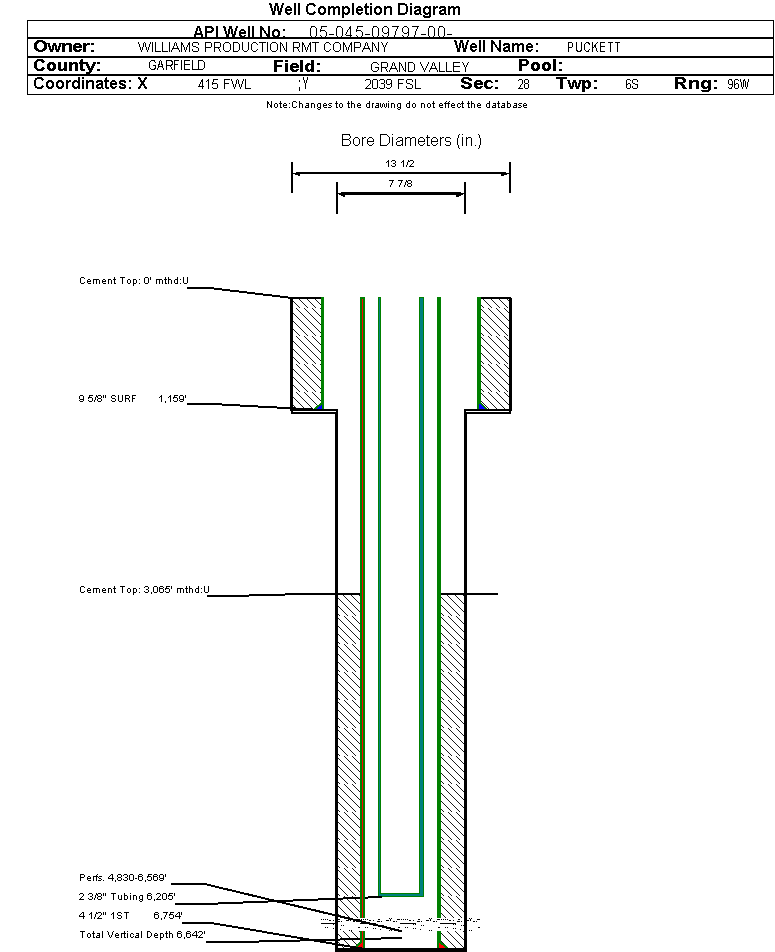

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 1159 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 530, Top: , Bottom: 1158 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 6754 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 650, Top: 3065 ft., Bottom: 6753 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1833 ft.NN
FORT UNION2161 ft.NN
MESAVERDE3606 ft.NN
CAMEO6153 ft.NN
ROLLINS6673 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 6/7/2004                  Interval Top: 4830 ft.    Interval Bottom: 6569 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:5/7/2004
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:6205 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/7/2004Test Method:
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
CALC_MCF_GAS 1345
CASING_PRESS 1618
TUBING_PRESS 1505
Perforation Data:
Interval Top:4830 ft.# Of Holes:73
Interval Bottom:6569 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)33
Total Gas Produced (MCF)27811
GOR842757
GOR DeterminationMCFE
Average BOE per Day13.190
Average MCFE per Day76.483

 Federal Financial Assurance  i

 Tribal Well  i No
