COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09794		Well Classification: GW Status: PR - 5/11/2004
Well Name/No:PUCKETT #GM 512-28
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC 46627
Facility Status:PRStatus Date5/11/2004
FacilityID:270837LocationID:335327
County:GARFIELD #045Location:SWNW 28 6S96W 6
Field:GRAND VALLEY - #31290Elevation:5555 ft.
Basin:PICEANCE BASIN
Planned Location:1558FNL  546 FWLLat/Long: 39.498258 / -108.121257Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.498196 / -108.121209Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 5/11/2004             Measured TD: 6845 ft.    Vertical TD: 6742 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 5/11/2004
Wellbore PermitDIRECTIONAL
Permit #:20032552 Expiration Date:1/11/2005
Proposed Top PZ Location:Sec: Twp: Footage: 2410 FNL  670 FWL
Bottom Hole Location:Sec: Twp: Footage: 2410 FNL  670 FWL
Proposed Depth/Form:6830 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 320, Drill Unit: W/2
Wellbore Completed
Completion Date:3/23/2004
Spud Date:2/24/2004Spud Date Is:ACTUAL
Measured TD:6845 ft.Measured PB depth:
True Vertical TD:6742 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 2410 FNL  670 FWL
Bottom Hole Location:Sec: Twp: Footage: 2410 FNL  670 FWL
Log Types:HIGH RESOLUTION INDUCTION SPECTRAL DENSITY DUAL SPACED NEUTRON, CBL

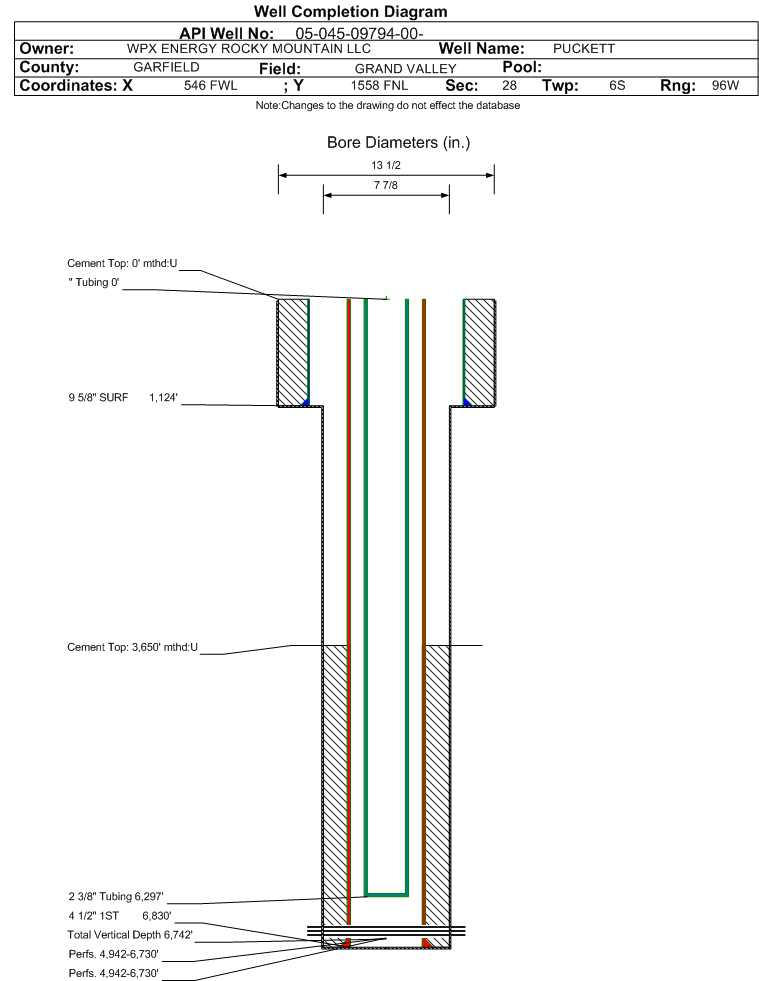

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 1124 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 515, Top: 0 ft., Bottom: 1124 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 6830 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 880, Top: 3650 ft., Bottom: 6830 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH2027 ft.NN
FORT UNION2358 ft.NN
MESAVERDE3765 ft.NN
CAMEO6257 ft.NN
ROLLINS6774 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 5/11/2004                 Interval Top: 4942 ft.    Interval Bottom: 6730 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.219 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:3/23/2004
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:6297 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/11/2004Test Method:
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
CALC_MCF_GAS 1280
CASING_PRESS 1398
TUBING_PRESS 1297
Perforation Data:
Interval Top:4942 ft.# Of Holes:91
Interval Bottom:6730 ft.Hole Size:0.43 in.

Formation WMFK                     Formation Classification:  GW                     Status:  CM - 5/11/2004                 Interval Top: 4942 ft.    Interval Bottom: 6730 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORKCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:3/23/2004
Treatment Summary:6406-6730' - 1000 GALS 7 1/2% HCL, 109716# 30/50, 2110 BBLS SLICK WATER. 5948-6303' - 750 GALS 7 1/2% HCL, 161569# 30/50, 2536 BBLS SLICK WATER. 5558-5786'- 750 GALS 7 1/2% HCL, 166258# 30/50, 2343 BBLS SLICK WATER. 5268-5457'- 750 GALS 7 1/2% (CONT)
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WMFK.
Perforation Data:
Interval Top:4942 ft.# Of Holes:91
Interval Bottom:6730 ft.Hole Size:0.43 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)18
Total Gas Produced (MCF)14765
GOR820277
GOR DeterminationMCFE
Average BOE per Day7.023
Average MCFE per Day40.752

 Federal Financial Assurance  i

 Tribal Well  i No
