COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09786		Well Classification: GW Status: PR - 8/14/2004
Well Name/No:CLOUGH #RWF 511-20
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date8/14/2004
FacilityID:270695LocationID:335283
County:GARFIELD #045Location:NWNW 20 6S94W 6
Field:RULISON - #75400Elevation:5630 ft.
Basin:PICEANCE BASIN
Planned Location:537FNL  638 FWLLat/Long: 39.516169 / -107.919021Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.516263 / -107.919029Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 8/14/2004             Measured TD: 8150 ft.    Vertical TD: 7995 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 8/14/2004
Wellbore Permit
Permit #:20032504 Expiration Date:1/4/2005
Proposed Depth/Form:8200 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 320, Drill Unit: W/2
Wellbore Completed
Completion Date:6/15/2004
Spud Date:5/17/2004Spud Date Is:ACTUAL
Measured TD:8150 ft.Measured PB depth:8061 ft.
True Vertical TD:7995 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 1240 FNL  699 FWL
Bottom Hole Location:Sec: Twp: Footage: 1239 FNL  698 FWL
Log Types:THERMAL MULTIGATE DECAY LITHOLOGY LOG, CBL

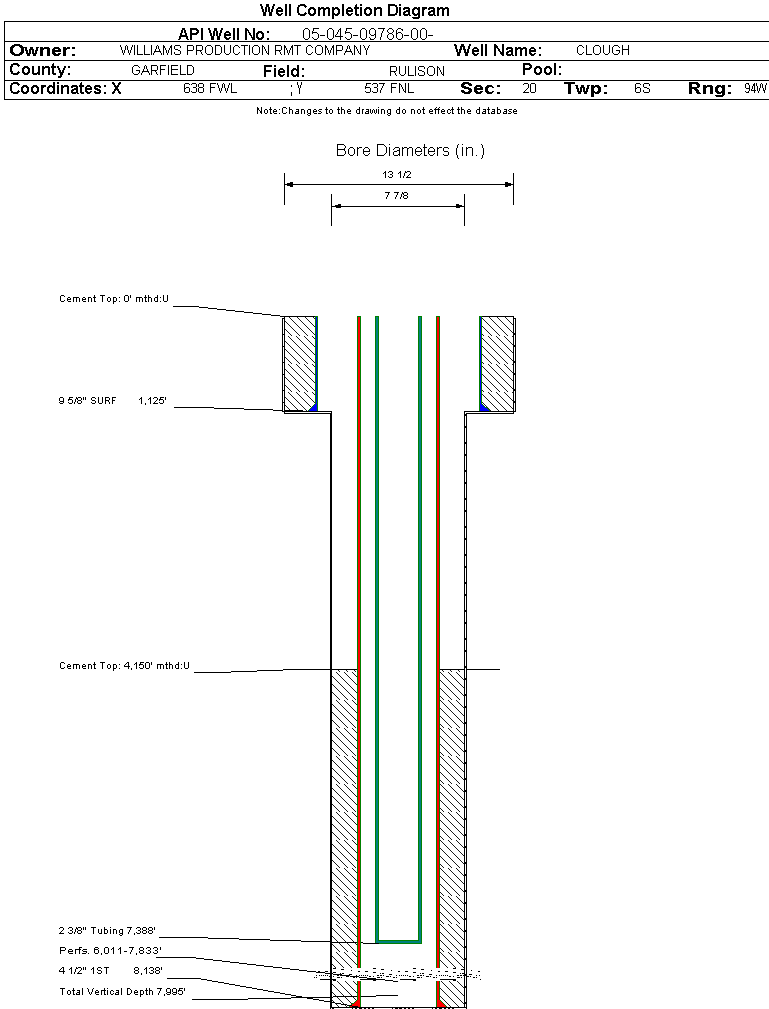

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1125 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 515, Top: 0 ft., Bottom: 1125 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8138 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1100, Top: 4150 ft., Bottom: 8138 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
MESAVERDE4588 ft.NN
CAMEO7262 ft.NN
ROLLINS8242 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 8/14/2004                 Interval Top: 6011 ft.    Interval Bottom: 7833 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.219 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:6/15/2004
Treatment Summary:SEE OGCC COMMENTS
Tubing Size:2.375 in.Tubing Setting Depth:7388 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/14/2004Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1392
CASING_PRESS 1384
MCF_GAS 1392
TUBING_PRESS 1306
Perforation Data:
Interval Top:6011 ft.# Of Holes:87
Interval Bottom:7833 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)40
Total Gas Produced (MCF)17172
GOR429300
GOR DeterminationMCFE
Average BOE per Day8.227
Average MCFE per Day47.687

 Federal Financial Assurance  i

 Tribal Well  i No
