COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09779		Well Classification: GW Status: PR - 12/4/2003
Well Name/No:CLOUGH #RWF 532-21
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date12/4/2003
FacilityID:270639LocationID:335340
County:GARFIELD #045Location:SWNE 21 6S94W 6
Field:RULISON - #75400Elevation:5398 ft.
Basin:PICEANCE BASIN
Planned Location:1787FNL  1938 FELLat/Long: 39.513179 / -107.890800Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.513258 / -107.890901Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 12/4/2003             Measured TD: 7692 ft.    Vertical TD: 7677 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 12/4/2003
Wellbore Permit
Permit #:20032464 Expiration Date:12/29/2004
Proposed Depth/Form:7760 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 320, Drill Unit: N/2
Wellbore Completed
Completion Date:4/29/2004
Spud Date:4/3/2004Spud Date Is:ACTUAL
Measured TD:7692 ft.Measured PB depth:7692 ft.
True Vertical TD:7677 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 1878 FNL  1583 FEL
Bottom Hole Location:Sec: Twp: Footage: 1904 FNL  1578 FEL
Log Types:RESERVOIR MONITOR TOOL ELITE LOG, CHI PROCESSED TRIPLE COMBO,CBL

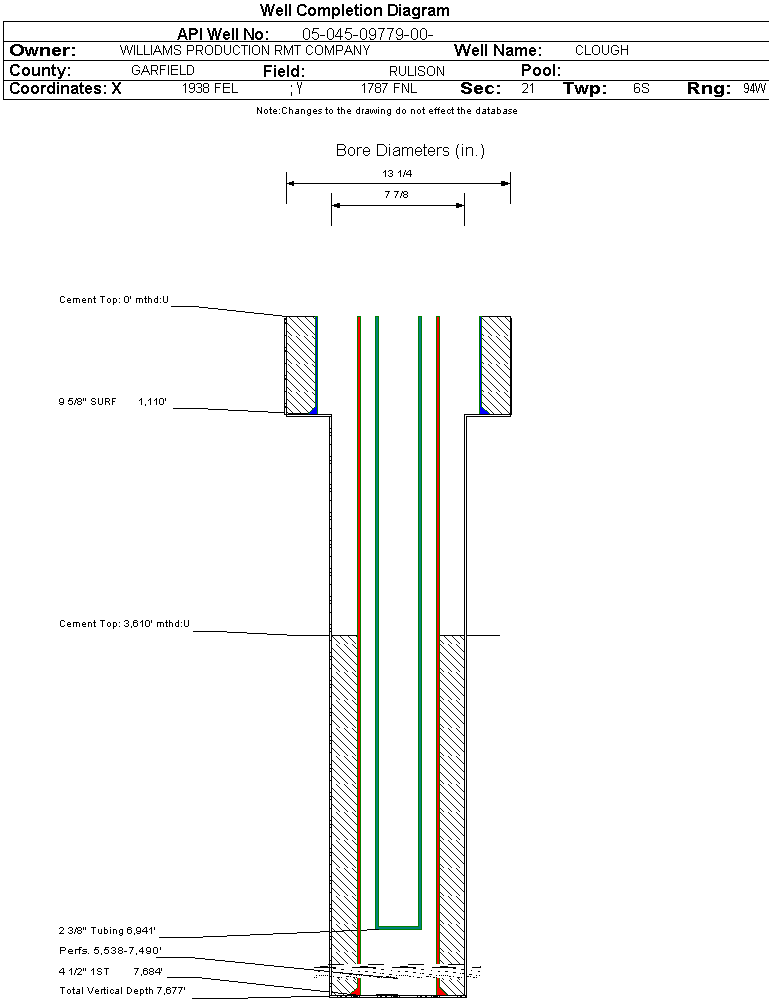

Casing:String Type: SURF, Hole Size: 13.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1110 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 515, Top: 0 ft., Bottom: 1110 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7684 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1135, Top: 3610 ft., Bottom: 7684 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1679 ft.NN
MESAVERDE4142 ft.NN
CAMEO6955 ft.NN
ROLLINS7905 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 12/4/2003                 Interval Top: 5538 ft.    Interval Bottom: 7490 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:4/29/2004
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:6941 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/7/2004Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
CALC_MCF_GAS 1364
CASING_PRESS 1458
MCF_GAS 1364
TUBING_PRESS 1372
Perforation Data:
Interval Top:5538 ft.# Of Holes:96
Interval Bottom:7490 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)37
Total Gas Produced (MCF)12610
GOR340810
GOR DeterminationMCFE
Average BOE per Day6.058
Average MCFE per Day35.138

 Federal Financial Assurance  i

 Tribal Well  i No
