COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09577		Well Classification: OW Status: PR - 12/4/2003
Well Name/No:GM #524-1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date12/4/2003
FacilityID:270626LocationID:334878
Municipality/County:PARACHUTE / GARFIELD #045Location:SESW 1 7S96W 6
Field:GRAND VALLEY - #31290Elevation:5162 ft.
Basin:PICEANCE BASIN
Planned Location:444FSL  1558 FWLLat/Long: 39.460829 / -108.062345Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.460887 / -108.062598Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PR - 12/4/2003             Measured TD: 6583 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PR - 12/4/2003
Wellbore PermitDIRECTIONAL
Permit #:20032458 Expiration Date:12/29/2004
Proposed Top PZ Location:Sec: Twp: Footage: 230 FSL  2304 FWL
Bottom Hole Location:Sec: Twp: Footage: 230 FS
Proposed Depth/Form:6380 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 320, Drill Unit: S/2
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 645 ft., Weight: 32.3 , Citings Type: PLANNED
Cement:Sacks: 400, Top: 0 ft., Bottom: 645 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 6380 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 200, Top: , Bottom:
Wellbore Completed
Completion Date:3/9/2004
Spud Date:2/12/2004Spud Date Is:ACTUAL
Measured TD:6583 ft.Measured PB depth:6532 ft.
True Vertical TD:True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 230 FSL  2304 FWL
Bottom Hole Location:Sec: Twp: Footage: 230 FSL   FL
Log Types:RESERVOIR PERFORMANCE MONITOR LOG, CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1473 ft.NN
FORT UNION1711 ft.NN
MESAVERDE3406 ft.NN
CAMEO5923 ft.NN
ROLLINS6425 ft.NN

Formation WFCM                     Formation Classification:  OW                     Status:  PR - 12/4/2003                 Interval Top: 4770 ft.    Interval Bottom: 6312 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.219 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:3/9/2004
Treatment Summary:

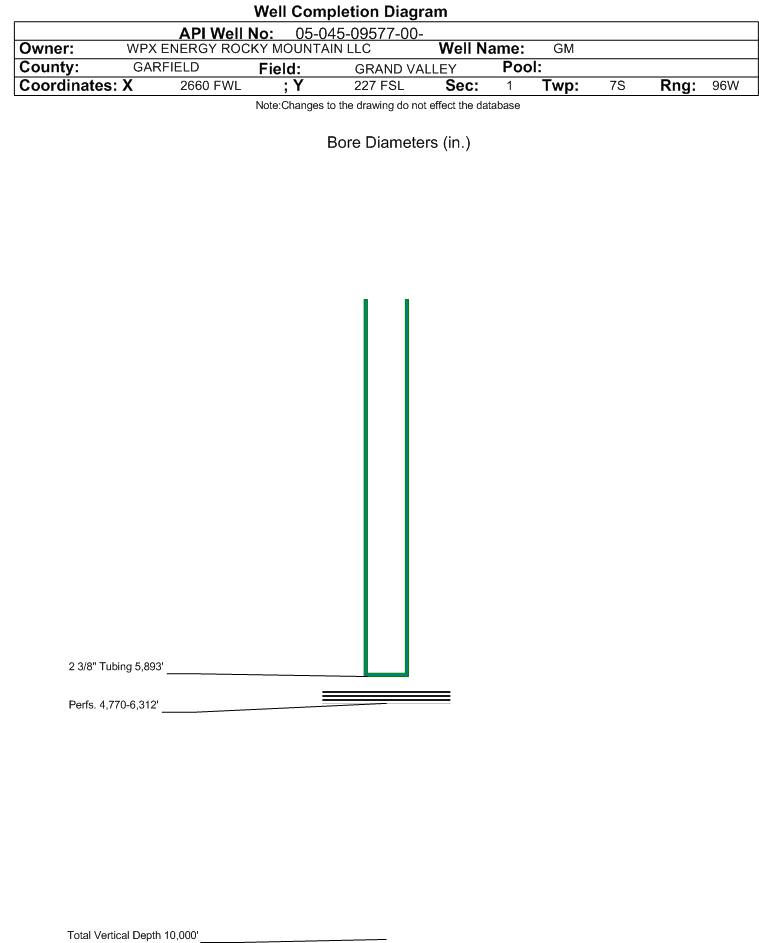

Tubing Size:2.375 in.Tubing Setting Depth:5893 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/8/2004Test Method:
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
CALC_MCF_GAS 1210
CASING_PRESS 1240
TUBING_PRESS 1180
Perforation Data:
Interval Top:4770 ft.# Of Holes:88
Interval Bottom:6312 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)25
Total Gas Produced (MCF)18889
GOR755560
GOR DeterminationMCFE
Average BOE per Day8.997
Average MCFE per Day52.184

 Federal Financial Assurance  i

 Tribal Well  i No
