COGIS - WELL SCOUT CARD

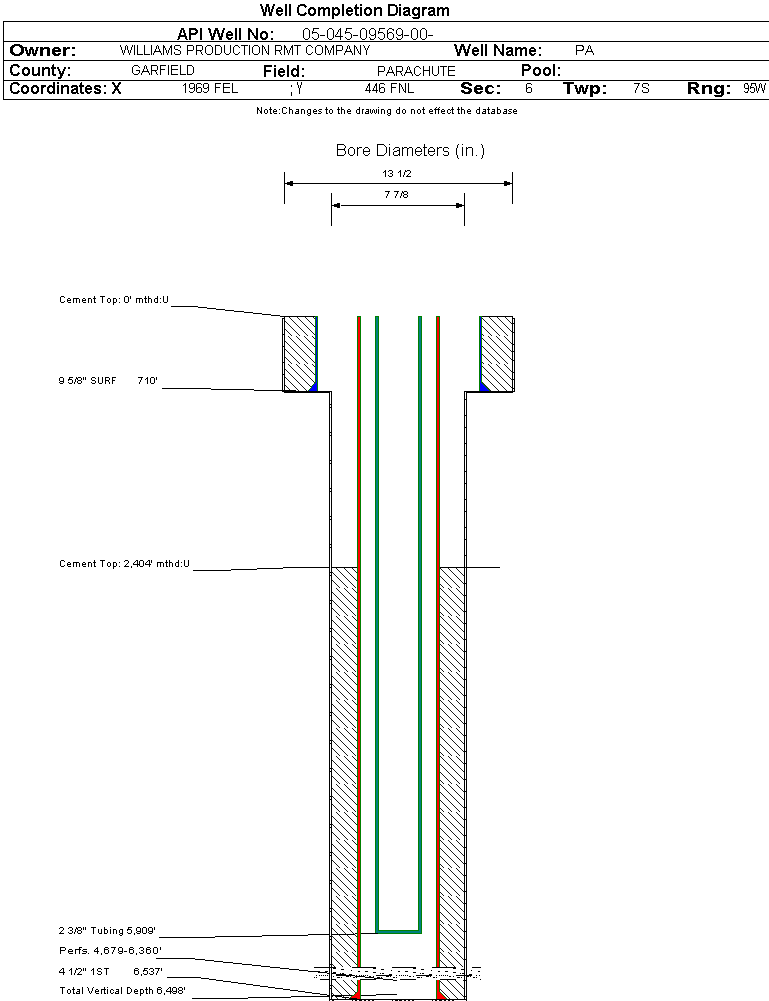

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09569		Well Classification: GW Status: PR - 7/1/2024
Well Name/No:PA #331-6
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date7/1/2024
FacilityID:270610LocationID:334920
County:GARFIELD #045Location:NWNE 6 7S95W 6
Field:PARACHUTE - #67350Elevation:5202 ft.
Basin:PICEANCE BASIN
Planned Location:446FNL  1969 FELLat/Long: 39.472819 / -108.038054Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.472676 / -108.038078Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 7/1/2024             Measured TD: 6551 ft.    Vertical TD: 6498 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 7/1/2024
Wellbore PermitDIRECTIONAL
Permit #:20032467 Expiration Date:12/28/2004
Proposed Top PZ Location:Sec: Twp: Footage: 530 FNL  1836 FEL
Bottom Hole Location:Sec: Twp: Footage: 530 FNL  1836 FEL
Proposed Depth/Form:6655 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 160, Drill Unit: NE/4
Wellbore Completed
Completion Date:6/19/2004
Spud Date:5/11/2004Spud Date Is:ACTUAL
Measured TD:6551 ft.Measured PB depth:6498 ft.
True Vertical TD:6498 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 530 FNL  1836 FEL
Bottom Hole Location:Sec: Twp: Footage: 530 FNL  1836 FEL
Log Types:HIGH RESOLUTION IND.SPECTRAL DEN.DUAL SPACED NEU,CBL
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 710 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 350, Top: 0 ft., Bottom: 710 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6537 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 840, Top: 2404 ft., Bottom: 6537 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1455 ft.NN
FORT UNION1761 ft.NN
MESAVERDE3457 ft.NN
CAMEO5992 ft.NN
ROLLINS6545 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 7/1/2024                  Interval Top: 4679 ft.    Interval Bottom: 6360 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:6/19/2004
Treatment Summary:TREATED WITH 385544# 30/50 SAND, 8809 BBLS SLICKWATER, 2500 GALS 7.5% HCL
Tubing Size:2.375 in.Tubing Setting Depth:5909 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/12/2004Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_GOR 141200
CALC_MCF_GAS 1412
CASING_PRESS 1540
MCF_GAS 1412
TUBING_PRESS 1476
Perforation Data:
Interval Top:4679 ft.# Of Holes:53
Interval Bottom:6360 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)11
Total Gas Produced (MCF)7154
GOR650363
GOR DeterminationMCFE
Average BOE per Day3.412
Average MCFE per Day19.784

 Federal Financial Assurance  i

 Tribal Well  i No
