COGIS - WELL SCOUT CARD

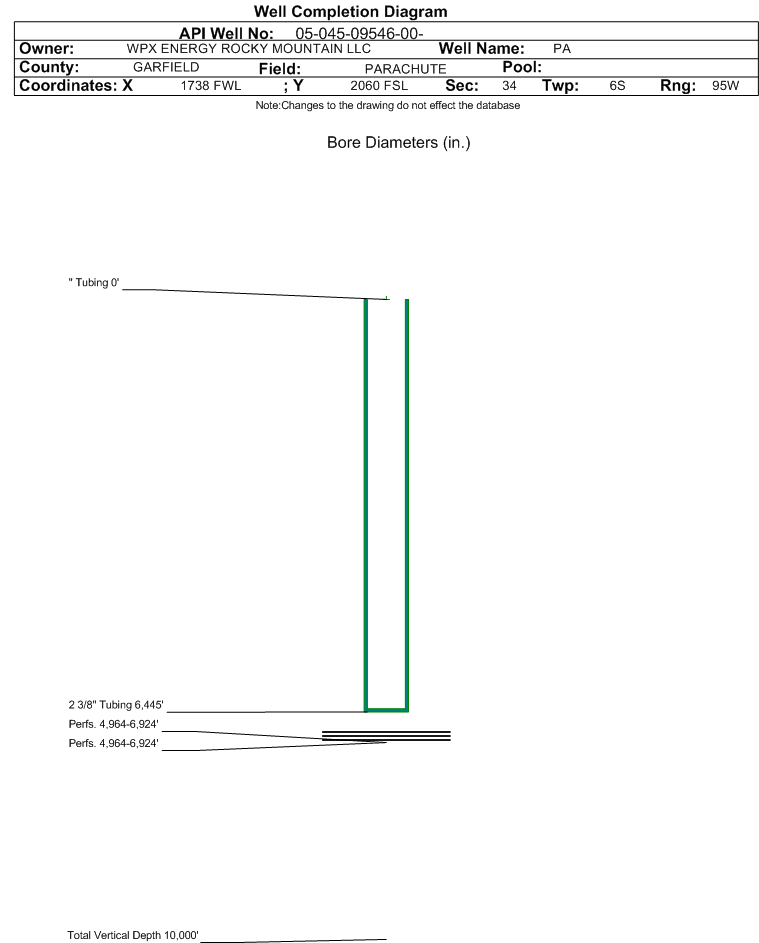

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09546		Well Classification: GW Status: PR - 5/10/2004
Well Name/No:PA #423-34
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date5/10/2004
FacilityID:270394LocationID:335299
County:GARFIELD #045Location:NESW 34 6S95W 6
Field:PARACHUTE - #67350Elevation:5204 ft.
Basin:PICEANCE BASIN
Planned Location:2060FSL  1738 FWLLat/Long: 39.479469 / -107.987663Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.479112 / -107.987590Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 5/10/2004             Measured TD: 7137 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 5/10/2004
Wellbore PermitDIRECTIONAL
Permit #:20032365 Expiration Date:12/11/2004
Proposed Top PZ Location:Sec: Twp: Footage: 2340 FSL  1859 FWL
Bottom Hole Location:Sec: Twp: Footage: 2340 FSL  1859 FWL
Proposed Depth/Form:7105 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 320, Drill Unit: S/2
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 1613 ft., Weight: 32.3 , Citings Type: PLANNED
Cement:Sacks: 575, Top: 0 ft., Bottom: 1613 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7105 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 200, Top: , Bottom:
Wellbore Completed
Completion Date:4/14/2004
Spud Date:3/2/2004Spud Date Is:ACTUAL
Measured TD:7137 ft.Measured PB depth:7015 ft.
True Vertical TD:True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 2340 FSL  1859 FWL
Bottom Hole Location:Sec: Twp: Footage: 2340 FSL  1859 FWL
Log Types:ARRAY INDUCTION TRIPLE-COMBO PRESENTATION, GAMMA RAY CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1422 ft.NN
FORT UNION1764 ft.NN
MESAVERDE3646 ft.NN
CAMEO6322 ft.NN
ROLLINS7012 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 5/10/2004                 Interval Top: 4964 ft.    Interval Bottom: 6924 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:5/10/2004Choke Size:0.210 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:Yes
Production Method:FLOWING
Open Hole Completion:
Tubing Size:2.375 in.Tubing Setting Depth:6445 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/10/2004Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
CASING_PRESS 1400
MCF_GAS 1476
TUBING_PRESS 1422
Perforation Data:
Interval Top:4964 ft.# Of Holes:98
Interval Bottom:6924 ft.Hole Size:0.34 in.

Formation WMFK                     Formation Classification:  GW                     Status:  CM - 5/10/2004                 Interval Top: 4964 ft.    Interval Bottom: 6924 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORKCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/14/2004
Treatment Summary:4964-5111' 750 GAL 7 1/2% HCI,194139# 30/50, 3075 BBL SLICK WTR;5664-5917'750 GAL 7 1/2% HCI,204097# 30/50, 3199 BBS SLICK WTR;5202-5510'750 GAL 7 1/2% HCI 223938# 30/50,3457 BBL SLICK WTR;6502-6924';1000 GAL 7 1/2% HCI,208015# 30/50,3250(CONT)
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WMFK.
Perforation Data:
Interval Top:4964 ft.# Of Holes:98
Interval Bottom:6924 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)25
Total Gas Produced (MCF)19316
GOR772640
GOR DeterminationMCFE
Average BOE per Day9.193
Average MCFE per Day53.332

 Federal Financial Assurance  i

 Tribal Well  i No
