COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09545		Well Classification: OW Status: PR - 5/13/2004
Well Name/No:PA #523-34
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date5/13/2004
FacilityID:270390LocationID:335299
County:GARFIELD #045Location:NESW 34 6S95W 6
Field:PARACHUTE - #67350Elevation:5204 ft.
Basin:PICEANCE BASIN
Planned Location:2066FSL  1752 FWLLat/Long: 39.479484 / -107.987581Lat/Long Source: Calculated From Footages
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PR - 5/13/2004             Measured TD: 7075 ft.    Vertical TD: 7039 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PR - 5/13/2004
Wellbore PermitDIRECTIONAL
Permit #:20032364 Expiration Date:12/11/2004
Proposed Top PZ Location:Sec: Twp: Footage: 1397 FSL  1950 FWL
Bottom Hole Location:Sec: Twp: Footage: 1397 FSL  1950 FWL
Proposed Depth/Form:7040 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 320, Drill Unit: S/2
Wellbore Completed
Completion Date:4/1/2000
Spud Date:3/17/2004Spud Date Is:ACTUAL
Measured TD:7075 ft.Measured PB depth:6975 ft.
True Vertical TD:7039 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 1397 FSL  1950 FWL
Bottom Hole Location:Sec: Twp: Footage: 1397 FSL  1950 FWL
Log Types:RESERVOIR MONITOR TOOL ELITE (CASED HOLE PULSED NEUTRON), CBL

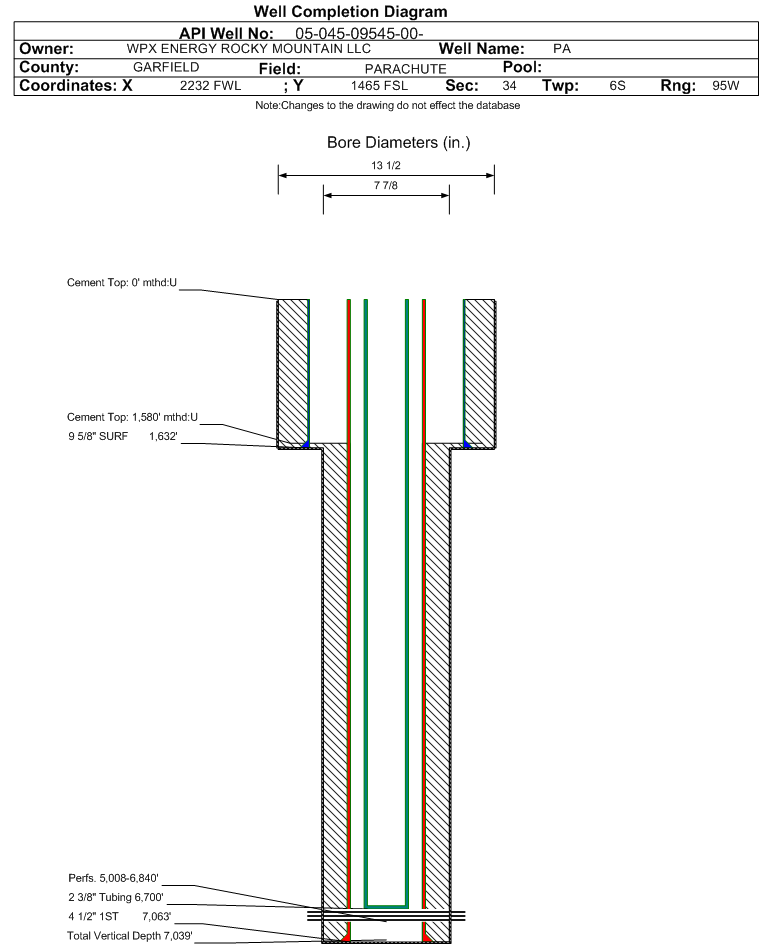

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1632 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 645, Top: 0 ft., Bottom: 1631 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7063 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 957, Top: 1580 ft., Bottom: 7062 ft., Determination Method:
FormationInterval TopLog BottomCoredDSTs
WASATCH G1401 ft.NN
FORT UNION1755 ft.NN
MESAVERDE3588 ft.NN
CAMEO6225 ft.NN
ROLLINS6919 ft.NN

Formation WFCM                     Formation Classification:  OW                     Status:  PR - 5/13/2004                 Interval Top: 5008 ft.    Interval Bottom: 6840 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:4/1/2000
Treatment Summary:SIZE ALSO .43. SEE OGCC COMMENTS FOR FORMATION TREATMENT
Tubing Size:2.375 in.Tubing Setting Depth:6700 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/13/2004Test Method:
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
CALC_MCF_GAS 1635
CASING_PRESS 1641
TUBING_PRESS 1576
Perforation Data:
Interval Top:5008 ft.# Of Holes:77
Interval Bottom:6840 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)12
Total Gas Produced (MCF)10779
GOR898250
GOR DeterminationMCFE
Average BOE per Day5.119
Average MCFE per Day29.734

 Federal Financial Assurance  i

 Tribal Well  i No
