COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09535		Well Classification: GW Status: PR - 5/30/2004
Well Name/No:CLOUG #RMV 219-21
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date5/30/2004
FacilityID:270357LocationID:335244
County:GARFIELD #045Location:SESW 21 6S94W 6
Field:RULISON - #75400Elevation:5271 ft.
Basin:PICEANCE BASIN
Planned Location:745FSL  1493 FWLLat/Long: 39.505419 / -107.897440Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.505533 / -107.897475Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 5/30/2004             Measured TD: 7740 ft.    Vertical TD: 7652 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 5/30/2004
Wellbore PermitDIRECTIONAL
Permit #:20032333 Expiration Date:12/9/2004
Proposed Top PZ Location:Sec: Twp: Footage: 239 FSL  1987 FWL
Bottom Hole Location:Sec: Twp: Footage: 239 FSL  1987 FWL
Proposed Depth/Form:7796 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 320, Drill Unit: S/2
Wellbore Completed
Completion Date:N/A
Spud Date:2/16/2004Spud Date Is:ACTUAL
Measured TD:7740 ft.Measured PB depth:7665 ft.
True Vertical TD:7652 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 239 FSL  1987 FWL
Bottom Hole Location:Sec: Twp: Footage: 239 FSL  1987 FWL
Log Types:RESERVOIR MONITOR TOOL ELITE, C B L

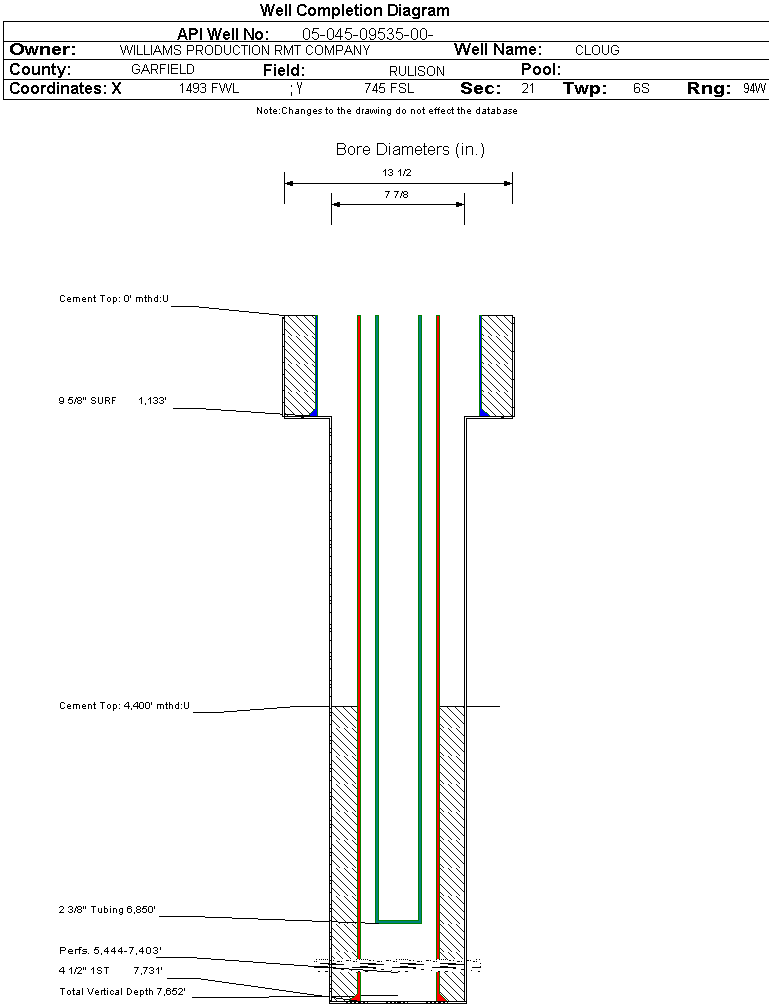

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1133 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 515, Top: , Bottom: 1132 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7731 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1100, Top: 4400 ft., Bottom: 7730 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1551 ft.NN
MESAVERDE3973 ft.NN
CAMEO6788 ft.NN
ROLLINS7701 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 5/30/2004                 Interval Top: 5444 ft.    Interval Bottom: 7403 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.219 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:5/30/2004
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:6850 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/30/2004Test Method:
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
CALC_MCF_GAS 1543
CASING_PRESS 1625
TUBING_PRESS 1538
Perforation Data:
Interval Top:5444 ft.# Of Holes:98
Interval Bottom:7403 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)14
Total Gas Produced (MCF)11680
GOR834285
GOR DeterminationMCFE
Average BOE per Day5.557
Average MCFE per Day32.235

 Federal Financial Assurance  i

 Tribal Well  i No
