COGIS - WELL SCOUT CARD

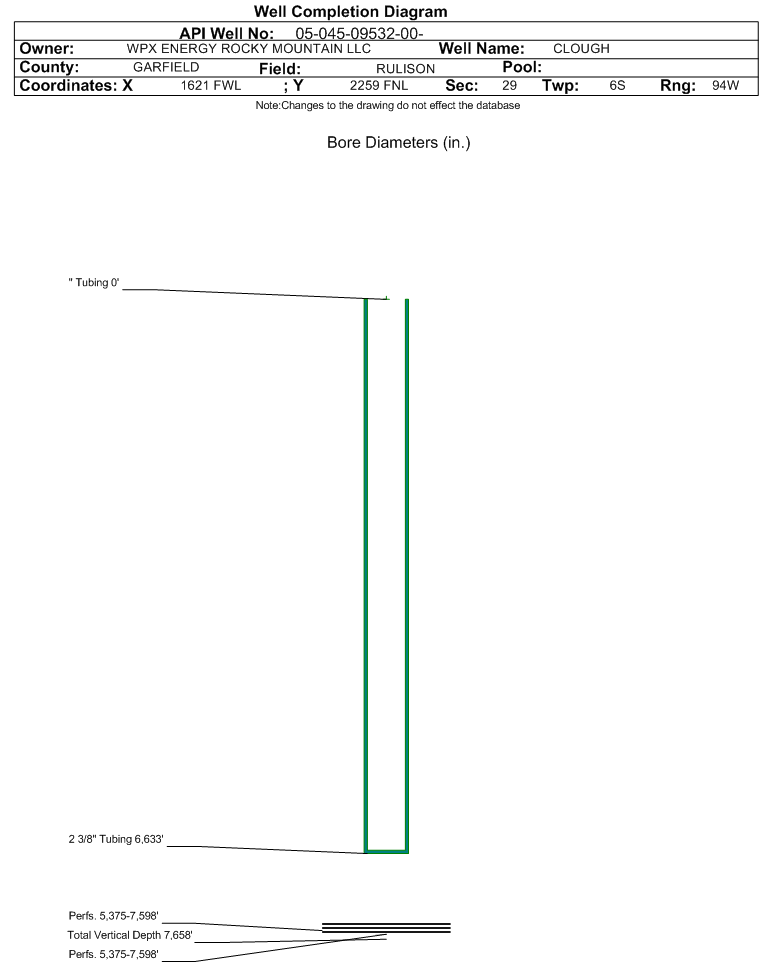

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09532		Well Classification: GW Status: PR - 5/11/2004
Well Name/No:CLOUGH #RWF 22-29
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date5/11/2004
FacilityID:270359LocationID:335076
County:GARFIELD #045Location:SENW 29 6S94W 6
Field:RULISON - #75400Elevation:5204 ft.
Basin:PICEANCE BASIN
Planned Location:2259FNL  1621 FWLLat/Long: 39.497099 / -107.915181Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.497165 / -107.915575Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 5/11/2004             Measured TD: 7734 ft.    Vertical TD: 7658 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 5/11/2004
Wellbore PermitDIRECTIONAL
Permit #:20032328 Expiration Date:12/9/2004
Proposed Top PZ Location:Sec: Twp: Footage: 1639 FNL  1997 FWL
Bottom Hole Location:Sec: Twp: Footage: 1646 FNL  1982 FWL
Proposed Depth/Form:7625 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 479-7 , Unit Acreage: 320, Drill Unit: N/2
Casing:String Type: CONDUCTOR, Hole Size: , Size: 16 in., Top: , Depth: 45 ft., Weight: , Citings Type: PLANNED
Cement:Sacks: , Top: , Bottom:
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 1110 ft., Weight: 32.3 , Citings Type: PLANNED
Cement:Sacks: 475, Top: 0 ft., Bottom: 1110 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7625 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 200, Top: , Bottom:
Wellbore Completed
Completion Date:4/14/2004
Spud Date:3/7/2004Spud Date Is:ACTUAL
Measured TD:7734 ft.Measured PB depth:7699 ft.
True Vertical TD:7658 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 1639 FNL  1997 FWL
Bottom Hole Location:Sec: Twp: Footage: 1646 FNL  1982 FWL
Log Types:HIGH RESOLUTION INDUCTION, SPECTRAL DENSITY, DUAL SPACED NEUTRON, CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH1701 ft.NN
MESAVERDE4068 ft.NN
CAMEO6718 ft.NN
ROLLINS7666 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 5/11/2004                 Interval Top: 5375 ft.    Interval Bottom: 7598 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.172 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:4/14/2004
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:6633 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/11/2004Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
CALC_MCF_GAS 2007
CASING_PRESS 3098
MCF_GAS 2007
TUBING_PRESS 3113
Perforation Data:
Interval Top:5375 ft.# Of Holes:102
Interval Bottom:7598 ft.Hole Size:

Formation WMFK                     Formation Classification:  GW                     Status:  CM - 5/11/2004                 Interval Top: 5375 ft.    Interval Bottom: 7598 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORKCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/14/2004
Treatment Summary:A) 7212-7598' 1000 GALS 7.5% HCL; 90692# 20/40 SAND & 2319 BBLS SLICK WATER. B) 6798-7114' 750 GALS 7.5% HCL; 126128# 20/40 SAND & 3072 BBLS SLICK WATER. C) 6369-6676' 750 GALS 7.5% HCL; 98474# 20/40 SAND & 2273 BBLS SLICK WATER. D) 5890-6276' (CONT)
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WMFK.
Perforation Data:
Interval Top:5375 ft.# Of Holes:102
Interval Bottom:7598 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)16
Total Gas Produced (MCF)13273
GOR829562
GOR DeterminationMCFE
Average BOE per Day6.316
Average MCFE per Day36.647

 Federal Financial Assurance  i

 Tribal Well  i No
