COGIS - WELL SCOUT CARD

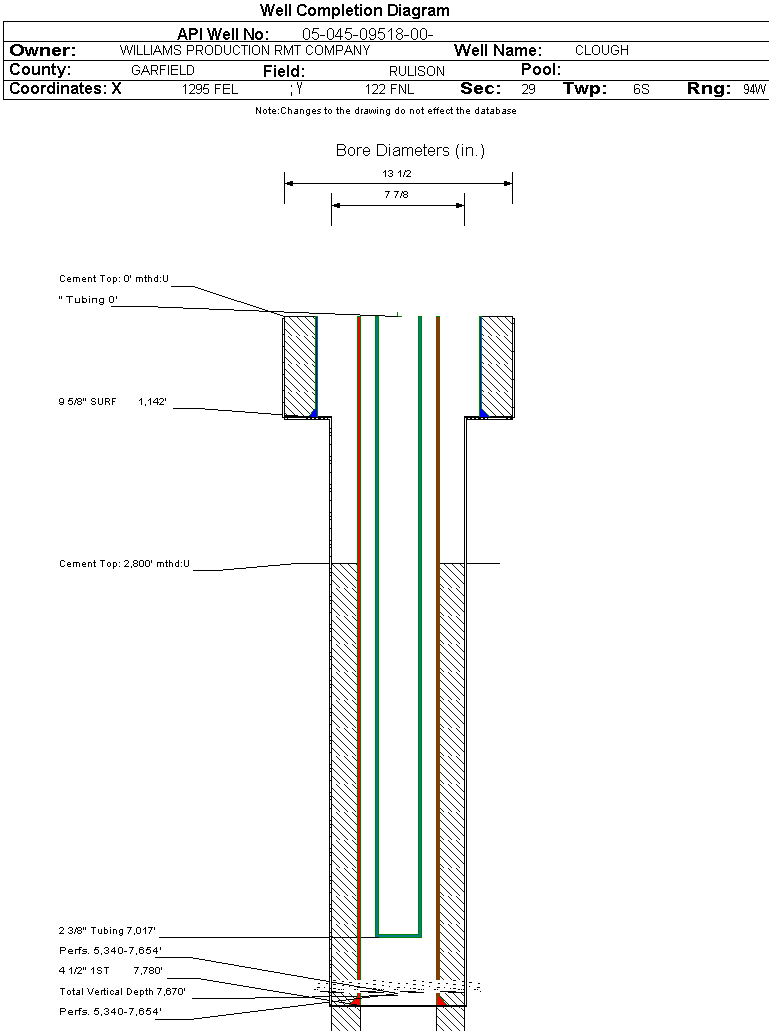

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09518		Well Classification: GW Status: PR - 5/7/2004
Well Name/No:CLOUGH #RWF 541-29
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC 62978
Facility Status:PRStatus Date5/7/2004
FacilityID:270288LocationID:335323
County:GARFIELD #045Location:NENE 29 6S94W 6
Field:RULISON - #75400Elevation:5271 ft.
Basin:PICEANCE BASIN
Planned Location:122FNL  1295 FELLat/Long: 39.503009 / -107.907290Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.503111 / -107.907314Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 5/7/2004             Measured TD: 7790 ft.    Vertical TD: 7670 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 5/7/2004
Wellbore PermitDIRECTIONAL
Permit #:20032274 Expiration Date:12/3/2004
Proposed Top PZ Location:Sec: Twp: Footage: 999 FNL  939 FEL
Bottom Hole Location:Sec: Twp: Footage: 991 FNL  945 FEL
Proposed Depth/Form:7660 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 320, Drill Unit: N/2
Wellbore Completed
Completion Date:3/16/2004
Spud Date:2/6/2004Spud Date Is:ACTUAL
Measured TD:7790 ft.Measured PB depth:7600 ft.
True Vertical TD:7670 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 999 FNL  939 FEL
Bottom Hole Location:Sec: Twp: Footage: 991 FNL  945 FEL
Log Types:RESERVOIR MONITOR TOOL ELITE, CHI PROCESSED TRIPLE COMBO, CBL
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1142 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 515, Top: 0 ft., Bottom: 1129 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7780 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1040, Top: 2800 ft., Bottom: 8074 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1648 ft.NN
MESAVERDE4106 ft.NN
CAMEO6821 ft.NN
ROLLINS7714 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 5/7/2004                  Interval Top: 5340 ft.    Interval Bottom: 7654 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.313 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:3/16/2004
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:7017 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/7/2004Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
CALC_MCF_GAS 1147
CASING_PRESS 1129
MCF_GAS 1147
TUBING_PRESS 1056
Perforation Data:
Interval Top:5340 ft.# Of Holes:96
Interval Bottom:7654 ft.Hole Size:0.34 in.

Formation WMFK                     Formation Classification:  GW                     Status:  CM - 5/7/2004                  Interval Top: 5340 ft.    Interval Bottom: 7654 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORKCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:3/16/2004
Treatment Summary:7338-7654';1000 GAL 7 1/2% HCI,163159# 20/40 SAND,3754 BBL SLK WTR;6547-7003';1000GAL 7 1/2% HCI 183679# 20/40,4032 BBL SLK WTR;5917-6299';750 GAL 7 1/2% HCI,142989# 20/40 SAND,3298 BBL SLK WTR;(CONT)
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WMFK.
Perforation Data:
Interval Top:5340 ft.# Of Holes:96
Interval Bottom:7654 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)23
Total Gas Produced (MCF)18535
GOR805869
GOR DeterminationMCFE
Average BOE per Day8.815
Average MCFE per Day51.148

 Federal Financial Assurance  i

 Tribal Well  i No
