COGIS - WELL SCOUT CARD

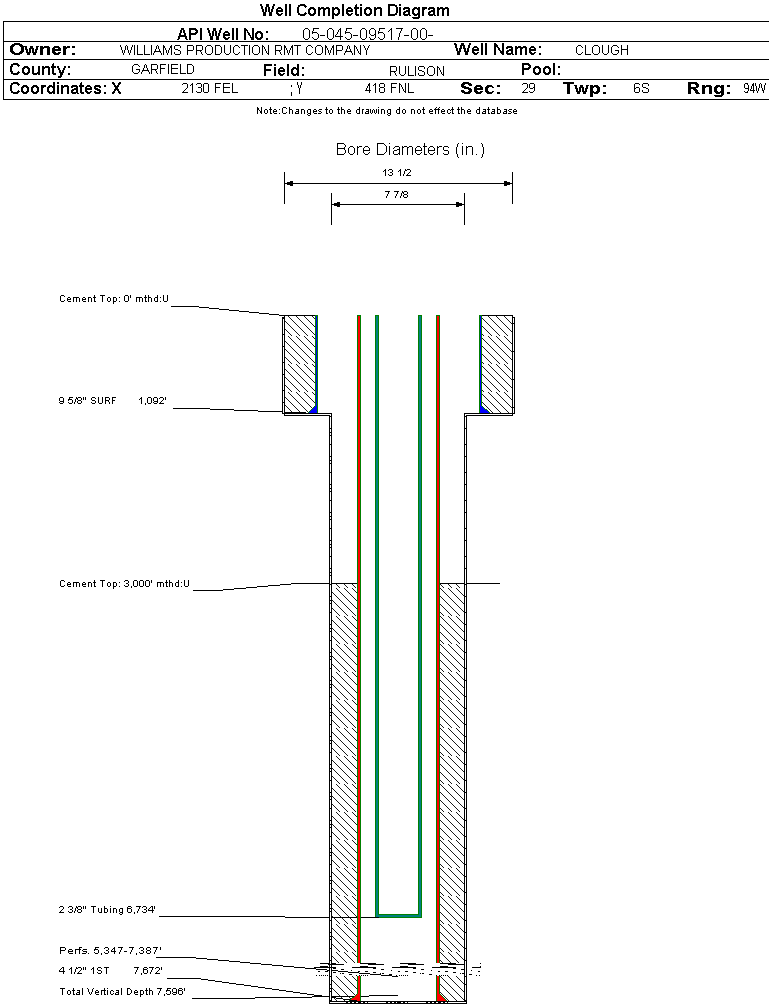

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09517		Well Classification: GW Status: PR - 6/6/2004
Well Name/No:CLOUGH #RWF 431-29
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date6/6/2004
FacilityID:270289LocationID:335252
County:GARFIELD #045Location:NWNE 29 6S94W 6
Field:RULISON - #75400Elevation:5279 ft.
Basin:PICEANCE BASIN
Planned Location:418FNL  2130 FELLat/Long: 39.502179 / -107.910211Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.502273 / -107.910232Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 6/6/2004             Measured TD: 7680 ft.    Vertical TD: 7596 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 6/6/2004
Wellbore PermitDIRECTIONAL
Permit #:20032276 Expiration Date:12/3/2004
Proposed Top PZ Location:Sec: Twp: Footage: 1065 FNL  2173 FEL
Bottom Hole Location:Sec: Twp: Footage: 1065 FNL  2175 FEL
Proposed Depth/Form:7660 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 320, Drill Unit: N/2
Wellbore Completed
Completion Date:5/4/2004
Spud Date:4/2/2004Spud Date Is:ACTUAL
Measured TD:7680 ft.Measured PB depth:7630 ft.
True Vertical TD:7596 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 1065 FNL  2173 FEL
Bottom Hole Location:Sec: Twp: Footage: 1065 FNL  2175 FEL
Log Types:RESERVOIR MONITOR TOOL ELITE, C B L
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1092 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 455, Top: 0 ft., Bottom: 1092 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7672 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1025, Top: 3000 ft., Bottom: 7672 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1867 ft.NN
MESAVERDE4126 ft.NN
CAMEO6799 ft.NN
ROLLINS7674 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 6/6/2004                  Interval Top: 5347 ft.    Interval Bottom: 7387 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:5/4/2004
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:6734 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/6/2004Test Method:
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
CALC_MCF_GAS 1585
CASING_PRESS 1620
TUBING_PRESS 1535
Perforation Data:
Interval Top:5347 ft.# Of Holes:96
Interval Bottom:7387 ft.Hole Size:0.43 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)32
Total Gas Produced (MCF)16022
GOR500687
GOR DeterminationMCFE
Average BOE per Day7.663
Average MCFE per Day44.419

 Federal Financial Assurance  i

 Tribal Well  i No
