Wellbore #00 Wellbore Classification: GW Status: PR - 10/3/2005 Measured TD: 5975 ft. Vertical TD: 5835 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 10/3/2005 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20032241 | Expiration Date: | 12/2/2004 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1275 FSL 1075 FWL | | Bottom Hole Location: | Sec: Twp: | Footage: 1275 FSL 1075 FWL | | Proposed Depth/Form: | 7563 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | GIBSON GULCH UN | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: |
| | |

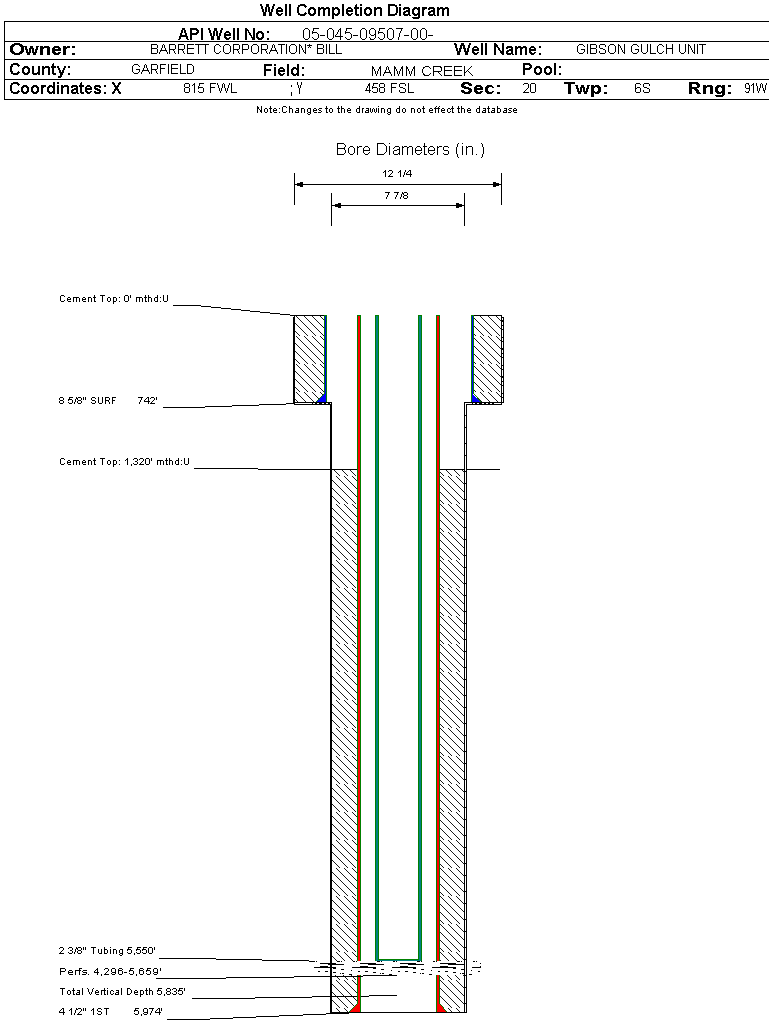

| Wellbore Completed | | Completion Date: | 4/8/2004 | | Spud Date: | 2/10/2004 | Spud Date Is: | ACTUAL | | Measured TD: | 5975 ft. | Measured PB depth: | 5949 ft. | | True Vertical TD: | 5835 ft. | True Vertical PB depth: | 5809 ft. | | Top PZ Location: | Sec: Twp: | Footage: 1275 FSL 1075 FWL | | Bottom Hole Location: | Sec: Twp: | Footage: 1275 FSL 1075 FWL | | Log Types: | INDUCTION & DENSITY | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 742 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 320, Top: 0 ft., Bottom: 742 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 5974 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1200, Top: 1320 ft., Bottom: 5974 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 3550 ft. | N | N | | OHIO CREEK | 3550 ft. | 4076 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 10/3/2005 Interval Top: 4296 ft. Interval Bottom: 5659 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | N/A | Choke Size: | 0.219 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 4/8/2004 | | Treatment Summary: | MV1 5432-5659' FRAC W/152,000# SAND OM 3537 BBL WTR. MV11 4870-*5323' FRAC W/124,164# SAND IN 3388 BBL WTR. MV III 4296-4533' FRAC W/117,237# SAND IN 2917 BBL WTR. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 5550 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 4/20/2004 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 107 | | BBLS_OIL | 8 | | BTU_GAS | 1185 | | CALC_BBLS_H2O | 107 | | CALC_BBLS_OIL | 8 | | CALC_GOR | 74125 | | CALC_MCF_GAS | 593 | | CASING_PRESS | 1532 | | GRAVITY_OIL | 38 | | MCF_GAS | 593 | | TUBING_PRESS | 1029 |
| | Perforation Data: | | Interval Top: | 4296 ft. | # Of Holes: | | | Interval Bottom: | 5659 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 25 |
| Total Gas Produced (MCF) | 7957 |
| GOR | 318280 |
| GOR Determination | MCFE |
| Average BOE per Day | 3.828 |
| Average MCFE per Day | 22.207 |
| Federal Financial Assurance | i | Y |
|
|
