COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09506		Well Classification: GW Status: PR - 6/21/2005
Well Name/No:GIBSON GULCH UNIT #4-29A
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date6/21/2005
FacilityID:270265LocationID:311596
County:GARFIELD #045Location:SWSW 20 6S91W 6
Field:MAMM CREEK - #52500Elevation:5964 ft.
Basin:PICEANCE BASIN
Planned Location:428FSL  858 FWLLat/Long: 39.507011 / -107.584531Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.507192 / -107.584630Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.

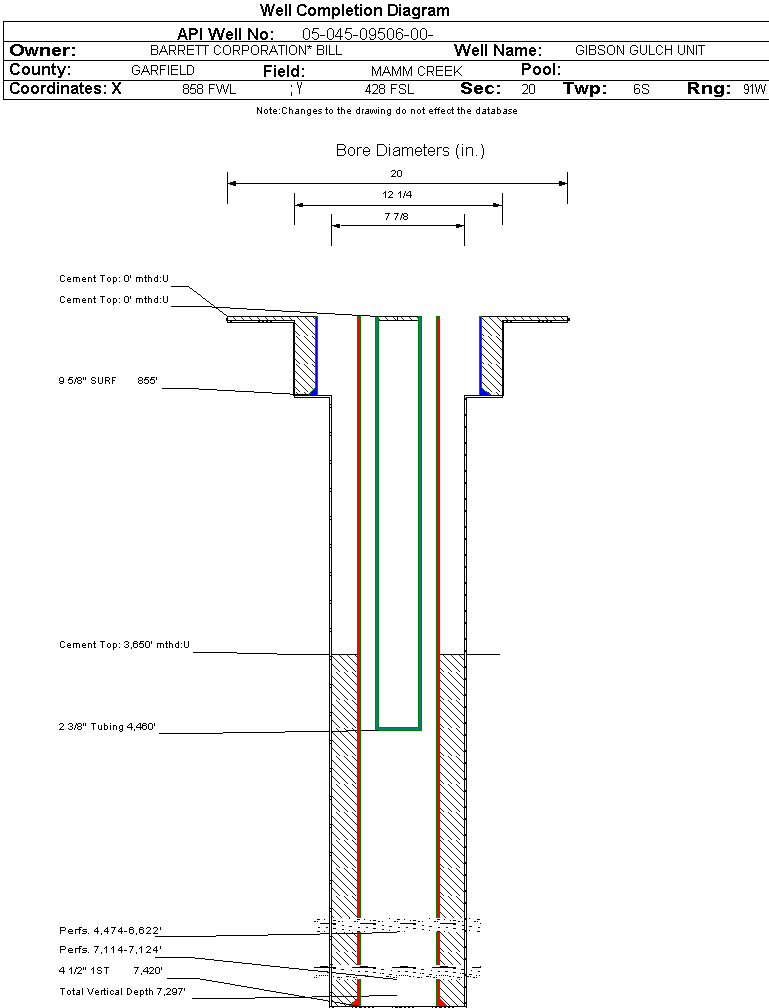

Wellbore #00             Wellbore Classification: GW             Status: PR - 6/21/2005             Measured TD: 7430 ft.    Vertical TD: 7297 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 6/21/2005
Wellbore PermitDIRECTIONAL
Permit #:20032242 Expiration Date:12/2/2004
Proposed Top PZ Location:Sec: Twp: Footage: 350 FNL  1320 FWL
Bottom Hole Location:Sec: Twp: Footage: 350 FNL  1320 FWL
Proposed Depth/Form:7631 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit:GIBSON GULCH FO Unit Number:RL-WF
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:2/3/2005
Spud Date:9/15/2004Spud Date Is:ACTUAL
Measured TD:7430 ft.Measured PB depth:7354 ft.
True Vertical TD:7297 ft.True Vertical PB depth:7221 ft.
Top PZ Location:Sec: Twp: Footage: 350 FNL  1320 FWL
Bottom Hole Location:Sec: Twp: Footage: 350 FNL  1320 FWL
Log Types:SD/DSNL, HRIL, MICROLOG
Casing:String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: .250 , Citings Type: ACTUAL
Cement:Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 855 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 250, Top: 0 ft., Bottom: 855 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7420 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1040, Top: 3650 ft., Bottom: 7420 ft., Determination Method:
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK3537 ft.NN
ROLLINS7112 ft.NN

Formation RLNS                     Formation Classification:  GW                     Status:  PR - 3/1/2013                  Interval Top: 7114 ft.    Interval Bottom: 7124 ft.

 Completed Information for Formation ROLLINS
1st Production Date:N/AChoke Size:0.438 in.
Formation Name:ROLLINSCommingled:Yes
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:2/3/2005
Treatment Summary:608 BBLS. 30# LINEAR GEL, 60,000 LBS. 20/40 SAND.
Tubing Size:2.375 in.Tubing Setting Depth:4460 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/9/2005Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 2
CALC_BBLS_H2O 0
CALC_BBLS_OIL 2
CALC_GOR 59000
CALC_MCF_GAS 98
CASING_PRESS 80
MCF_GAS 98
TUBING_PRESS 0
Perforation Data:
Interval Top:7114 ft.# Of Holes:20
Interval Bottom:7124 ft.Hole Size:0.34 in.

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 6/21/2005                 Interval Top: 4474 ft.    Interval Bottom: 6622 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:0.640 in.
Formation Name:WILLIAMS FORKCommingled:Yes
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:2/3/2005
Treatment Summary:2421 BBL LINEAR GEL 70% CO2, 720,500 LBS. 20/40 SAND; 1597 BBLS SLICKWATER, 95,000 30/50 SAND.
Tubing Size:2.375 in.Tubing Setting Depth:4460 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/21/2005Test Method:FLOWIGN
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_BBLS_H2O 0
CALC_GOR 530
CALC_MCF_GAS 530
CASING_PRESS 150
MCF_GAS 530
TUBING_PRESS 0
Perforation Data:
Interval Top:4474 ft.# Of Holes:160
Interval Bottom:6622 ft.Hole Size:0.36 in.
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
11/2024 - 10/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)870
GOR
GOR DeterminationMCFE
Average BOE per Day0.414
Average MCFE per Day2.384

 Federal Financial Assurance  i

 Tribal Well  i No
