COGIS - WELL SCOUT CARD

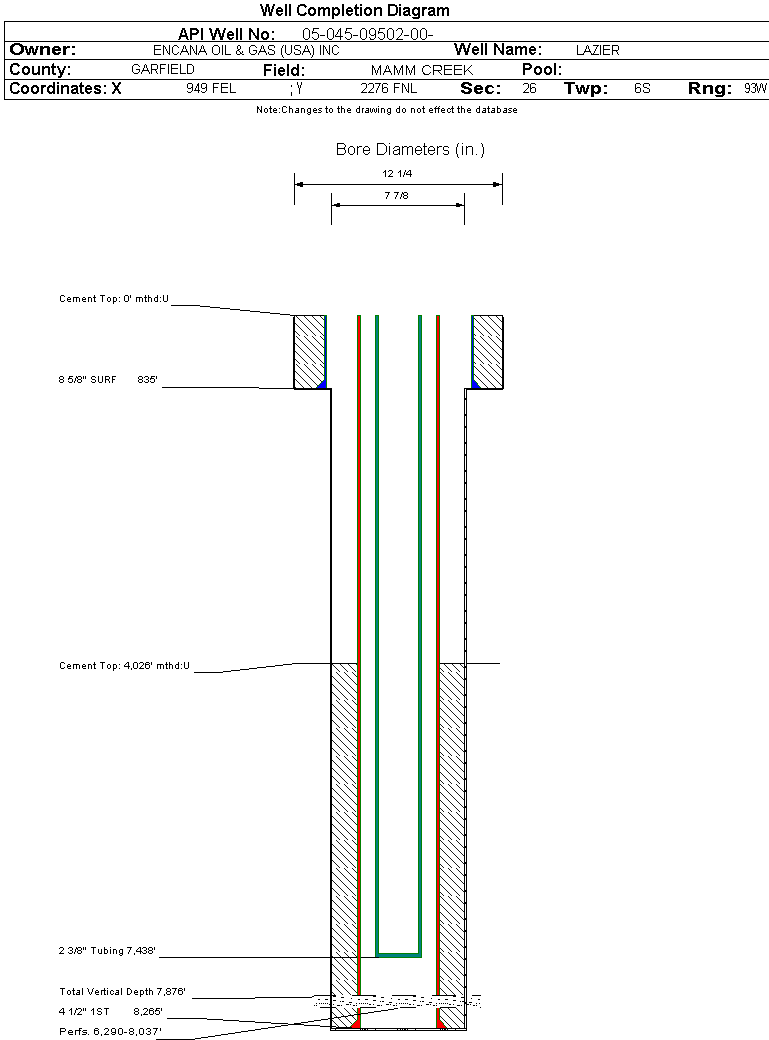

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09502		Well Classification: GW Status: PR - 1/1/2020
Well Name/No:LAZIER #26-2(H26NW)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date1/1/2020
FacilityID:270263LocationID:335312
County:GARFIELD #045Location:SENE 26 6S93W 6
Field:MAMM CREEK - #52500Elevation:5690 ft.
Basin:PICEANCE BASIN
Planned Location:2276FNL  949 FELLat/Long: 39.498200 / -107.736645Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.498470 / -107.736960Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 1/1/2020             Measured TD: 8265 ft.    Vertical TD: 7876 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 1/1/2020
Wellbore PermitDIRECTIONAL
Permit #:20032248 Expiration Date:12/2/2004
Proposed Top PZ Location:Sec: Twp: Footage: 2276 FNL  949 FEL
Bottom Hole Location:Sec:26 Twp: Footage: 660 FNL  1980 FEL
Proposed Depth/Form:8300 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit:GRASS MESA FED. Unit Number:COC 56608X
Formation And Spacing:Code: RLNS , Formation: ROLLINS , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:6/23/2004
Spud Date:12/25/2003Spud Date Is:ACTUAL
Measured TD:8265 ft.Measured PB depth:8224 ft.
True Vertical TD:7876 ft.True Vertical PB depth:0 ft.
Top PZ Location:Sec: Twp: Footage: 2276 FNL  949 FEL
Bottom Hole Location:Sec:26 Twp: Footage: 660 FNL  1980 FEL
Log Types:CBL/GR, PEX
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 835 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 450, Top: 0 ft., Bottom: 835 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8265 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1400, Top: 4026 ft., Bottom: 8265 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.4890 ft.NN
WILLIAMS FORK4891 ft.8165 ft.NN
ROLLINS8166 ft.8266 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 1/1/2020                  Interval Top: 6290 ft.    Interval Bottom: 8037 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:0.219 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:6/23/2004
Treatment Summary:STAGES 1-5 TREATED WITH 19,804 BBLS OF SLICKWATER, 655,000# 20/40 SAND
Tubing Size:2.375 in.Tubing Setting Depth:7438 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/25/2004Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 61
BBLS_OIL 10
BTU_GAS 1170
CALC_BBLS_H2O 61
CALC_BBLS_OIL 10
CALC_GOR 164900
CALC_MCF_GAS 1649
CASING_PRESS 2605
MCF_GAS 1649
TUBING_PRESS 1885
Perforation Data:
Interval Top:6290 ft.# Of Holes:90
Interval Bottom:8037 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)84
Total Gas Produced (MCF)17385
GOR206964
GOR DeterminationMCFE
Average BOE per Day8.440
Average MCFE per Day48.964

 Federal Financial Assurance  i Y

 Tribal Well  i No
