COGIS - WELL SCOUT CARD

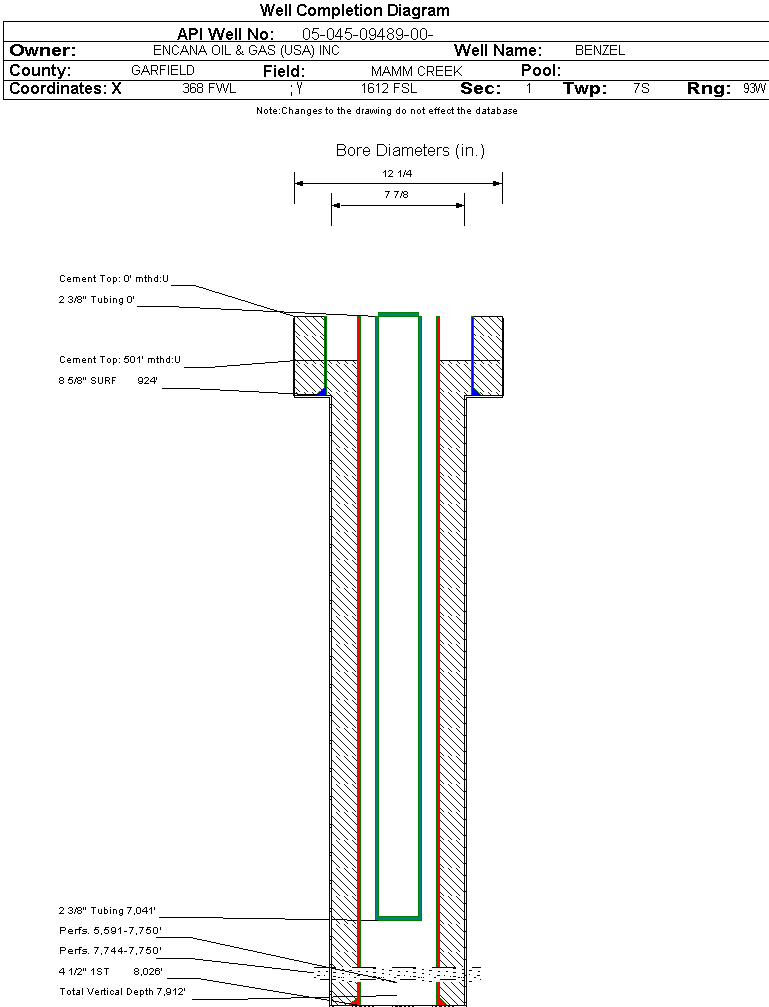

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09489		Well Classification: GW Status: PR - 5/20/2004
Well Name/No:BENZEL #1-12A (L1)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date5/20/2004
FacilityID:270186LocationID:334851
County:GARFIELD #045Location:NWSW 1 7S93W 6
Field:MAMM CREEK - #52500Elevation:6163 ft.
Basin:PICEANCE BASIN
Planned Location:1612FSL  368 FWLLat/Long: 39.471831 / -107.731965Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.471900 / -107.731830Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 5/20/2004             Measured TD: 8026 ft.    Vertical TD: 7912 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 5/20/2004
Wellbore PermitDIRECTIONAL
Permit #:20032211 Expiration Date:11/20/2004
Proposed Top PZ Location:Sec:1 Twp: Footage: 1989 FSL  1308 FWL
Bottom Hole Location:Sec:1 Twp: Footage: 1990 FSL  1310 FWL
Proposed Depth/Form:8300 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit:HUNTER MESA FED Unit Number:COC 55972X
Formation And Spacing:Code: RLNS , Formation: ROLLINS , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:5/28/2004
Spud Date:2/18/2004Spud Date Is:ACTUAL
Measured TD:8026 ft.Measured PB depth:7983 ft.
True Vertical TD:7912 ft.True Vertical PB depth:
Top PZ Location:Sec:1 Twp: Footage: 1989 FSL  1308 FWL
Bottom Hole Location:Sec:1 Twp: Footage: 1990 FSL  1310 FWL
Log Types:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 924 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 475, Top: 0 ft., Bottom: 924 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8026 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1180, Top: 501 ft., Bottom: 8026 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.4739 ft.NN
WILLIAMS FORK4740 ft.7702 ft.NN
ROLLINS7703 ft.8026 ft.NN

Formation RLNS                     Formation Classification:  GW                     Status:  PR - 5/20/2004                 Interval Top: 7744 ft.    Interval Bottom: 7750 ft.

 Completed Information for Formation ROLLINS
1st Production Date:N/AChoke Size:0.375 in.
Formation Name:ROLLINSCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:5/28/2004
Treatment Summary:STAGE1:7,744-7750,12-0.410" SHOTS; FRAC INFO ON SCANNED DOC #01257418
Tubing Size:2.375 in.Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/20/2004Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 5
BBLS_OIL 1
BTU_GAS 1170
CALC_BBLS_H2O 5
CALC_BBLS_OIL 1
CALC_GOR 10
CALC_MCF_GAS 10
CASING_PRESS 795
MCF_GAS 10
Perforation Data:
Interval Top:7744 ft.# Of Holes:12
Interval Bottom:7750 ft.Hole Size:0.41 in.

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 5/20/2004                 Interval Top: 5591 ft.    Interval Bottom: 7750 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:0.375 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:5/28/2004
Treatment Summary:SEE SCANNED DOC #01257418
Tubing Size:2.375 in.Tubing Setting Depth:7041 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/20/2004Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 43
BBLS_OIL 5
BTU_GAS 1170
CALC_BBLS_H2O 43
CALC_BBLS_OIL 5
CALC_GOR 197
CALC_MCF_GAS 986
CASING_PRESS 795
MCF_GAS 986
Perforation Data:
Interval Top:5591 ft.# Of Holes:140
Interval Bottom:7750 ft.Hole Size:0.41 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)38
Total Gas Produced (MCF)25700
GOR676315
GOR DeterminationMCFE
Average BOE per Day12.246
Average MCFE per Day71.009

 Federal Financial Assurance  i Y

 Tribal Well  i No
