COGIS - WELL SCOUT CARD

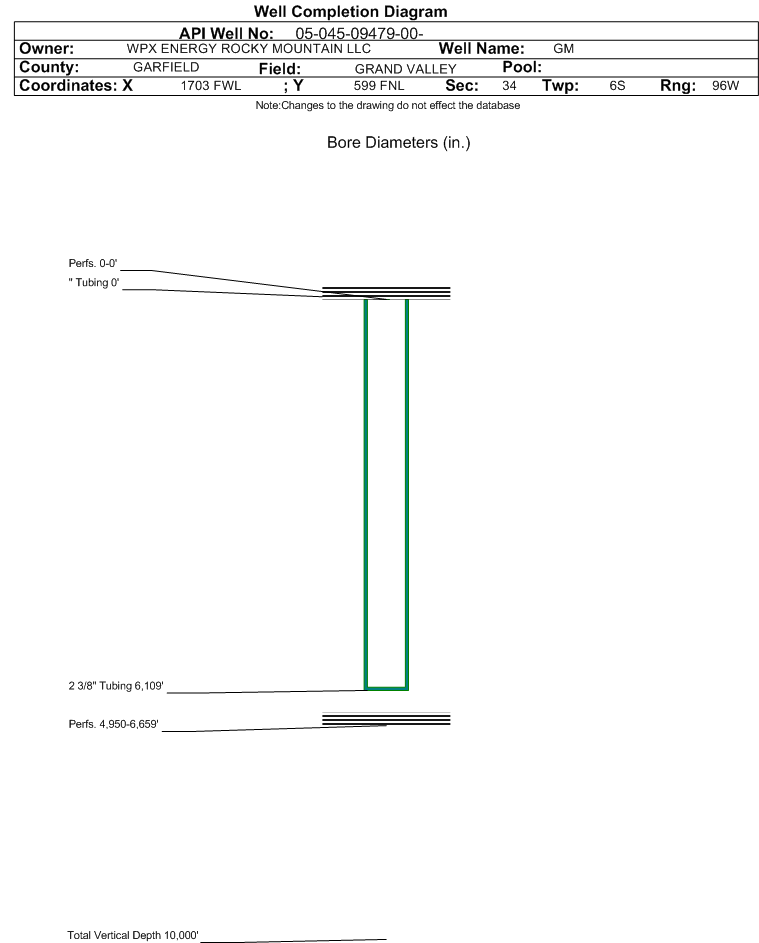

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09479		Well Classification: OW Status: PR - 4/11/2004
Well Name/No:GM #421-34
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date4/11/2004
FacilityID:270177LocationID:335317
County:GARFIELD #045Location:NENW 34 6S96W 6
Field:GRAND VALLEY - #31290Elevation:5486 ft.
Basin:PICEANCE BASIN
Planned Location:599FNL  1703 FWLLat/Long: 39.486108 / -108.098036Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.486280 / -108.097981Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PR - 4/11/2004             Measured TD: 6779 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PR - 4/11/2004
Wellbore PermitDIRECTIONAL
Permit #:20032120 Expiration Date:11/19/2004
Proposed Top PZ Location:Sec: Twp: Footage: 227 FNL  2074 FWL
Bottom Hole Location:Sec: Twp: Footage: 227 FNL  2074 FWL
Proposed Depth/Form:6820 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 320, Drill Unit: N/2
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 692 ft., Weight: 32.3 , Citings Type: PLANNED
Cement:Sacks: 375, Top: 0 ft., Bottom: 680 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 6820 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 200, Top: , Bottom:
Wellbore Completed
Completion Date:2/27/2004
Spud Date:1/11/2004Spud Date Is:ACTUAL
Measured TD:6779 ft.Measured PB depth:6733 ft.
True Vertical TD:True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 227 FNL  2074 FWL
Bottom Hole Location:Sec: Twp: Footage: 227 FNL  2074 FWL
Log Types:HI RESOLUTION INDUCATION SPECTRAL DENSITY DUAL SPACED NEUTRON, CBL
FormationInterval TopLog BottomCoredDSTs
GREELEY SAND1868 ft.NN
FORT UNION2189 ft.NN
MESAVERDE3621 ft.NN
CAMEO6252 ft.NN
ROLLINS6700 ft.NN

Formation WFCM                     Formation Classification:  OW                     Status:  PR - 4/11/2004                 Interval Top: 4950 ft.    Interval Bottom: 6659 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.234 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:2/27/2004
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:6109 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/11/2004Test Method:
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1120
CALC_MCF_GAS 1586
CASING_PRESS 1295
TUBING_PRESS 1220
Perforation Data:
Interval Top:4950 ft.# Of Holes:73
Interval Bottom:6659 ft.Hole Size:

Formation WMFK                     Formation Classification:  OW                     Status:  CM - 4/11/2004

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORKCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:2/27/2004
Treatment Summary:6338-6659 1000 GALS 7 1/2% HCL 109674# 20/40 2555 BBLS SLICKWATER; 5863-6172 750 GALS 7 1/2% HCL 111663# 20/40 3138 BBLS SLICKWATER; 5362-5766 750 GALS 7 1/2% HCL 127878# 02/40 2959 BBLS SLICKWATER; 4950-5291 750 GALS 7 1/2% HCL 121264# 20/40-CONT'D
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WMFK.
Perforation Data:
Interval Top:# Of Holes:73
Interval Bottom:Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)15
Total Gas Produced (MCF)11543
GOR769533
GOR DeterminationMCFE
Average BOE per Day5.500
Average MCFE per Day31.908

 Federal Financial Assurance  i

 Tribal Well  i No
