COGIS - WELL SCOUT CARD

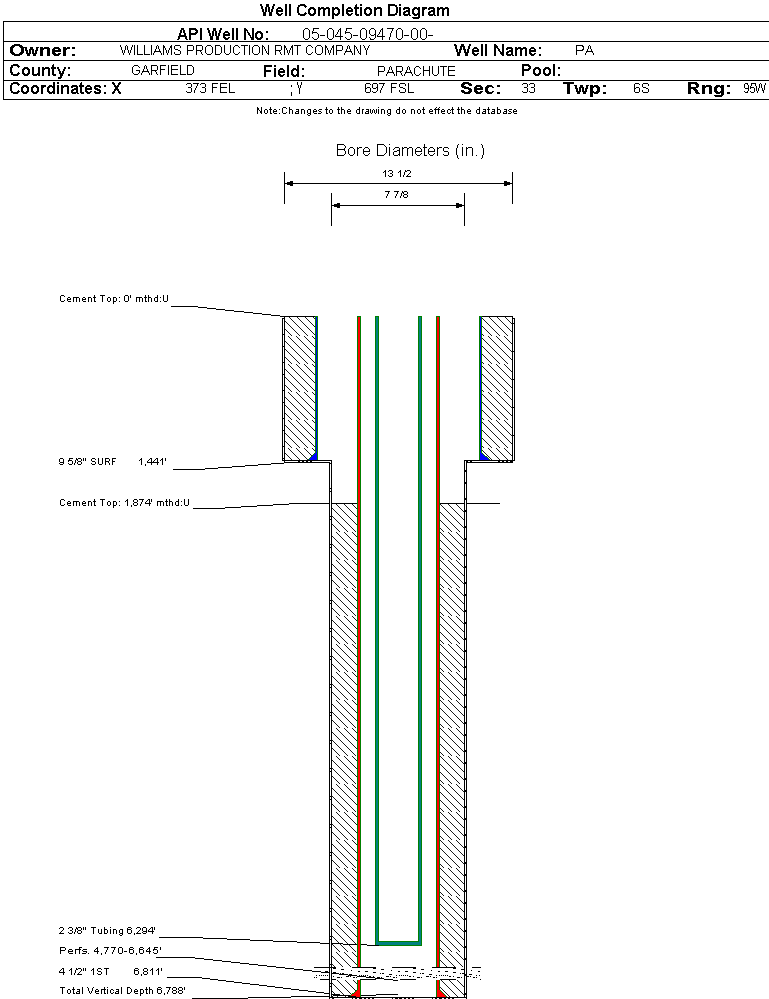

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09470		Well Classification: GW Status: PR - 7/13/2004
Well Name/No:PA #344-33
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date7/13/2004
FacilityID:270134LocationID:334845
County:GARFIELD #045Location:SESE 33 6S95W 6
Field:PARACHUTE - #67350Elevation:5140 ft.
Basin:PICEANCE BASIN
Planned Location:697FSL  373 FELLat/Long: 39.475709 / -107.995123Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.475394 / -107.995007Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 7/13/2004             Measured TD: 6830 ft.    Vertical TD: 6788 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 7/13/2004
Wellbore PermitDIRECTIONAL
Permit #:20032116 Expiration Date:11/18/2004
Proposed Top PZ Location:Sec: Twp: Footage: 1177 FSL  619 FEL
Bottom Hole Location:Sec: Twp: Footage: 1170 FSL  613 FEL
Proposed Depth/Form:6850 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 160, Drill Unit: SE/4
Wellbore Completed
Completion Date:6/18/2004
Spud Date:5/15/2004Spud Date Is:ACTUAL
Measured TD:6830 ft.Measured PB depth:
True Vertical TD:6788 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 1177 FSL  619 FEL
Bottom Hole Location:Sec: Twp: Footage: 1170 FSL  613 FEL
Log Types:RESERVOIR PERFORMANCE MONITOR, CBL
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1441 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 612, Top: 0 ft., Bottom: 1441 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6811 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 897, Top: 1874 ft., Bottom: 6811 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
FORT UNION1585 ft.NN
MESAVERDE3418 ft.NN
CAMEO6088 ft.NN
ROLLINS6720 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 7/13/2004                 Interval Top: 4770 ft.    Interval Bottom: 6645 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:6/18/2004
Treatment Summary:SEE OGCC COMMENTS
Tubing Size:2.375 in.Tubing Setting Depth:6294 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/13/2004Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_GOR 104000
CALC_MCF_GAS 1040
CASING_PRESS 1330
MCF_GAS 1040
TUBING_PRESS 1233
Perforation Data:
Interval Top:4770 ft.# Of Holes:92
Interval Bottom:6645 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)25
Total Gas Produced (MCF)19268
GOR770720
GOR DeterminationMCFE
Average BOE per Day9.171
Average MCFE per Day53.201

 Federal Financial Assurance  i

 Tribal Well  i No
