COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09466		Well Classification: GW Status: PR - 5/25/2004
Well Name/No:PA #423-32
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date5/25/2004
FacilityID:270138LocationID:335325
County:GARFIELD #045Location:NESW 32 6S95W 6
Field:PARACHUTE - #67350Elevation:5185 ft.
Basin:PICEANCE BASIN
Planned Location:2210FSL  2053 FWLLat/Long: 39.479919 / -108.023864Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.479956 / -108.023841Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 5/25/2004             Measured TD: 6688 ft.    Vertical TD: 6600 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 5/25/2004
Wellbore PermitDIRECTIONAL
Permit #:20032124 Expiration Date:11/18/2004
Proposed Top PZ Location:Sec: Twp: Footage: 1369 FSL  2113 FWL
Bottom Hole Location:Sec: Twp: Footage: 1369 FSL  2113 FWL
Proposed Depth/Form:6660 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 320, Drill Unit: W/2
Wellbore Completed
Completion Date:4/28/2004
Spud Date:3/19/2004Spud Date Is:ACTUAL
Measured TD:6688 ft.Measured PB depth:6630 ft.
True Vertical TD:6600 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 1369 FSL  2113 FWL
Bottom Hole Location:Sec: Twp: Footage: 1369 FSL  2113 FWL
Log Types:RESERVOIR MONITOR TOOL ELITE LOG, C B L

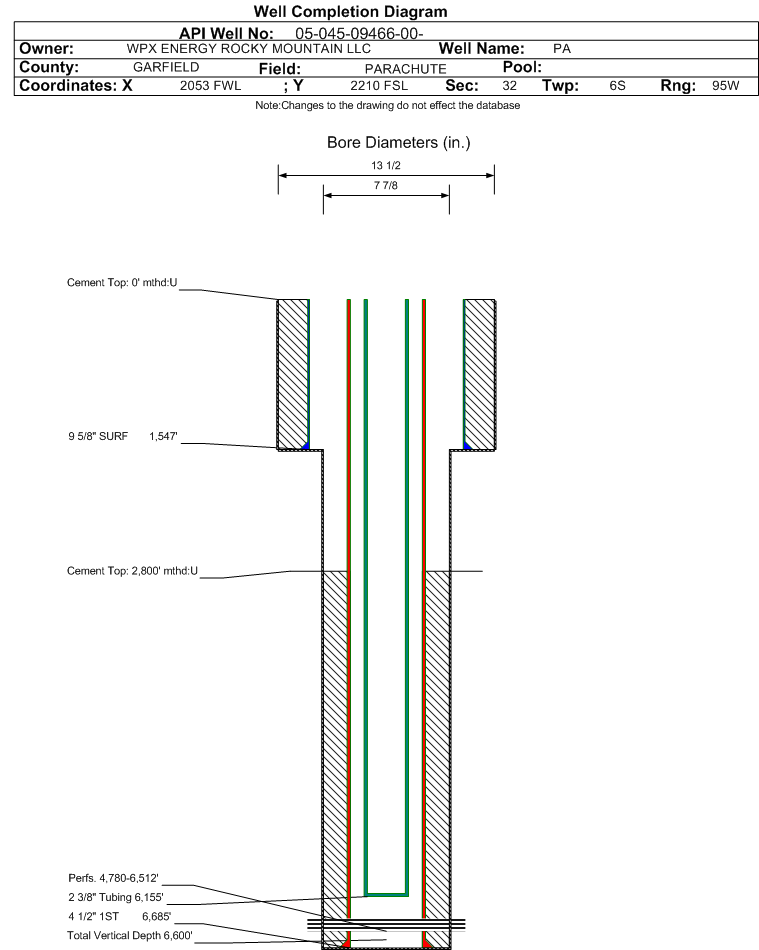

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1547 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 655, Top: 0 ft., Bottom: 1546 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6685 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 880, Top: 2800 ft., Bottom: 6684 ft., Determination Method:
FormationInterval TopLog BottomCoredDSTs
WASATCH G1332 ft.NN
FORT UNION1630 ft.NN
MESAVERDE3436 ft.NN
CAMEO5870 ft.NN
ROLLINS6593 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 5/25/2004                 Interval Top: 4780 ft.    Interval Bottom: 6512 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/28/2004
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:6155 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/25/2004Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
CALC_MCF_GAS 1209
CASING_PRESS 1500
MCF_GAS 1209
TUBING_PRESS 1408
Perforation Data:
Interval Top:4780 ft.# Of Holes:76
Interval Bottom:6512 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)19
Total Gas Produced (MCF)14076
GOR740842
GOR DeterminationMCFE
Average BOE per Day6.709
Average MCFE per Day38.904

 Federal Financial Assurance  i

 Tribal Well  i No
