COGIS - WELL SCOUT CARD

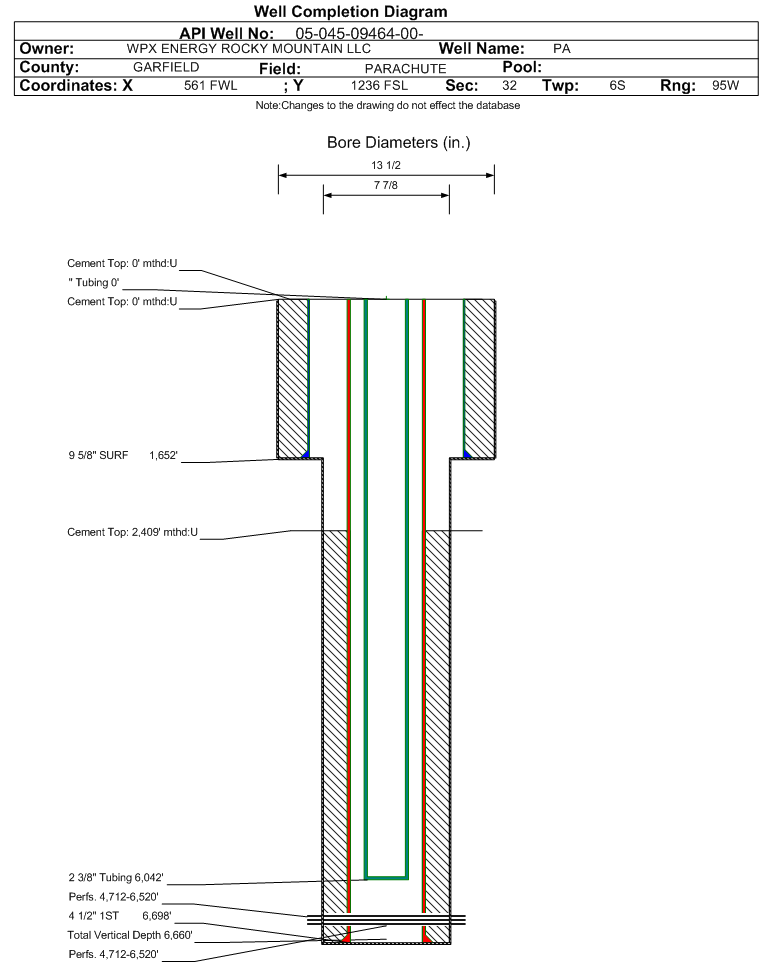

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09464		Well Classification: GW Status: PR - 12/1/2024
Well Name/No:PA #514-32
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC 6739
Facility Status:PRStatus Date12/1/2024
FacilityID:270124LocationID:334918
County:GARFIELD #045Location:SWSW 32 6S95W 6
Field:PARACHUTE - #67350Elevation:5215 ft.
Basin:PICEANCE BASIN
Planned Location:1236FSL  561 FWLLat/Long: 39.477279 / -108.029144Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.477310 / -108.029136Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 12/1/2024             Measured TD: 6706 ft.    Vertical TD: 6660 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 12/1/2024
Wellbore PermitDIRECTIONAL
Permit #:20032105 Expiration Date:11/18/2004
Proposed Top PZ Location:Sec: Twp: Footage: 690 FSL  597 FWL
Bottom Hole Location:Sec: Twp: Footage: 690 FSL  597 FWL
Proposed Depth/Form:6695 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 320, Drill Unit: W/2
Wellbore Completed
Completion Date:3/30/2004
Spud Date:2/16/2004Spud Date Is:ACTUAL
Measured TD:6706 ft.Measured PB depth:6655 ft.
True Vertical TD:6660 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 690 FSL  597 FWL
Bottom Hole Location:Sec: Twp: Footage: 690 FSL  597 FWL
Log Types:CBL
Casing:String Type: CONDUCTOR, Hole Size: , Size: , Top: , Depth: , Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: , Bottom: , Determination Method: CALC
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 1652 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 665, Top: , Bottom: 1652 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 6698 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 875, Top: 2409 ft., Bottom: 6698 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1400 ft.NN
FORT UNION1693 ft.NN
MESAVERDE3436 ft.NN
CAMEO COAL5985 ft.NN
ROLLINS6617 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 12/1/2024                 Interval Top: 4712 ft.    Interval Bottom: 6520 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.250 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:3/30/2004
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:6042 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/30/2004Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
CALC_MCF_GAS 1251
CASING_PRESS 1186
MCF_GAS 1251
TUBING_PRESS 1041
Perforation Data:
Interval Top:4712 ft.# Of Holes:80
Interval Bottom:6520 ft.Hole Size:0.43 in.

Formation WMFK                     Formation Classification:  GW                     Status:  CM - 4/30/2004                 Interval Top: 4712 ft.    Interval Bottom: 6520 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORKCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:3/30/2004
Treatment Summary:6122-6520' 1000 GALS 7 1/2% HCL, 155582# 30/50, 2710 BBLS SLICK WATER; 5490-5966' 750 GALS 7 1/2% HCL, 209982# 30/50, 3472 BBLS SLICK WATER; 5016-5254' 750 GALS 7 1/2% HCL, 184008# 30/50, 3040 BBLS SLICK (CONT)
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WMFK.
Perforation Data:
Interval Top:4712 ft.# Of Holes:80
Interval Bottom:6520 ft.Hole Size:43 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)8
Total Gas Produced (MCF)6110
GOR763750
GOR DeterminationMCFE
Average BOE per Day2.923
Average MCFE per Day16.934

 Federal Financial Assurance  i

 Tribal Well  i No
