COGIS - WELL SCOUT CARD

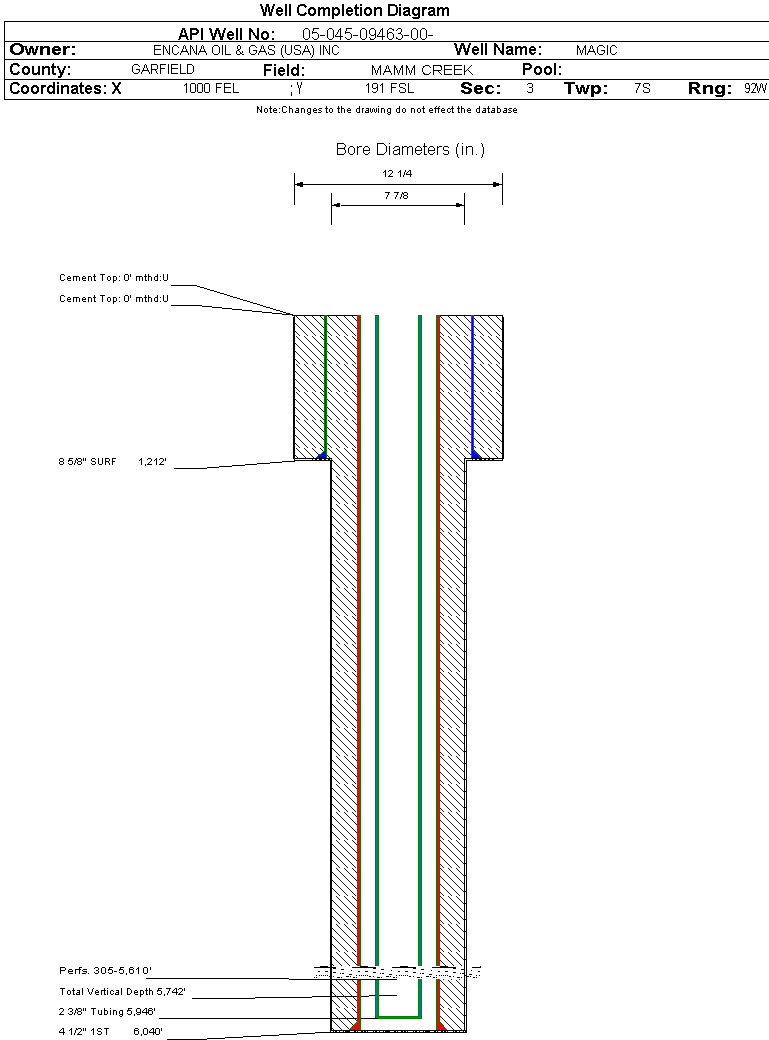

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09463		Well Classification: GW Status: PR - 7/19/2006
Well Name/No:MAGIC #10-2 (P3)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date7/19/2006
FacilityID:270125LocationID:334590
County:GARFIELD #045Location:SESE 3 7S92W 6
Field:MAMM CREEK - #52500Elevation:6011 ft.
Basin:PICEANCE BASIN
Planned Location:191FSL  1000 FELLat/Long: 39.469251 / -107.646672Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.469290 / -107.646620Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 7/19/2006             Measured TD: 6010 ft.    Vertical TD: 5742 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 7/19/2006
Wellbore PermitDIRECTIONAL
Permit #:20062348 Expiration Date:5/11/2007
Proposed Top PZ Location:Sec: Twp: Footage: 623 FNL  1980 FEL
Bottom Hole Location:Sec:10 Twp: 7S 92W Footage: 879 FNL  1991 FEL
Proposed Depth/Form:6010 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit:HUNTER MESA UNI Unit Number:COC 55972X
Formation And Spacing:Code: MVRD , Formation: MESAVERDE , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: RLNS , Formation: ROLLINS , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: , Depth: 40 ft., Weight: , Citings Type: PLANNED
Cement:Sacks: 5, Top: 0 ft., Bottom: 40 ft.
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 1212 ft., Weight: 24 , Citings Type: PLANNED
Cement:Sacks: 625, Top: 0 ft., Bottom: 1222 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 6040 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 1691, Top: 0 ft., Bottom: 6040 ft.
Wellbore Completed
Completion Date:12/28/2004
Spud Date:3/3/2004Spud Date Is:ACTUAL
Measured TD:6010 ft.Measured PB depth:5990 ft.
True Vertical TD:5742 ft.True Vertical PB depth:5723 ft.
Top PZ Location:Sec: Twp: Footage: 623 FNL  1980 FEL
Bottom Hole Location:Sec:10 Twp: 7S 92WFootage: 879 FNL  1991 FEL
Log Types:GR-PEX,GR-CCL-CBLCGR-CCL-RST-TEMP
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1212 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 625, Top: 0 ft., Bottom: 1222 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6040 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1691, Top: 1170 ft., Bottom: 6040 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: 4.5 in., Top: , Depth: 841 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 367 ft., Bottom: 841 ft., Determination Method: CALC
Casing:String Type: S.C. 1.2, Hole Size: , Size: 4.5 in., Top: , Depth: 305 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 90, Top: 0 ft., Bottom: 305 ft., Determination Method: CALC
Casing:String Type: 2ND, Hole Size: , Size: 3.5 in., Top: 0 ft., Depth: 5946 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 83, Top: 0 ft., Bottom: 5946 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.3113 ft.NN
WILLIAMS FORK3114 ft.6010 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 7/19/2006                 Interval Top: 305 ft.    Interval Bottom: 5610 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:7/16/2006Choke Size:20.000 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:12/28/2004
Treatment Summary:STAGES 1 THROUGH 5 WERE TREATED WITH A TOTAL OF 37,252 BBLS OF SLICKWATER AND 914,773 LBS 20-40 SAND.
Tubing Size:2.375 in.Tubing Setting Depth:5946 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/19/2006Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 35
BTU_GAS 1170
CALC_BBLS_H2O 35
CALC_MCF_GAS 1924
CASING_PRESS 1700
MCF_GAS 1924
Perforation Data:
Interval Top:305 ft.# Of Holes:276
Interval Bottom:5610 ft.Hole Size:29 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)3
Total Gas Produced (MCF)11464
GOR3821333
GOR DeterminationMCFE
Average BOE per Day5.425
Average MCFE per Day31.459

 Federal Financial Assurance  i Y

 Tribal Well  i No
