COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09460		Well Classification: OW Status: PR - 4/12/2004
Well Name/No:PA #511-34
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date4/12/2004
FacilityID:270129LocationID:335337
County:GARFIELD #045Location:NWNW 34 6S95W 6
Field:PARACHUTE - #67350Elevation:5439 ft.
Basin:PICEANCE BASIN
Planned Location:267FNL  729 FWLLat/Long: 39.487536 / -107.991238Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.487641 / -107.990482Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.

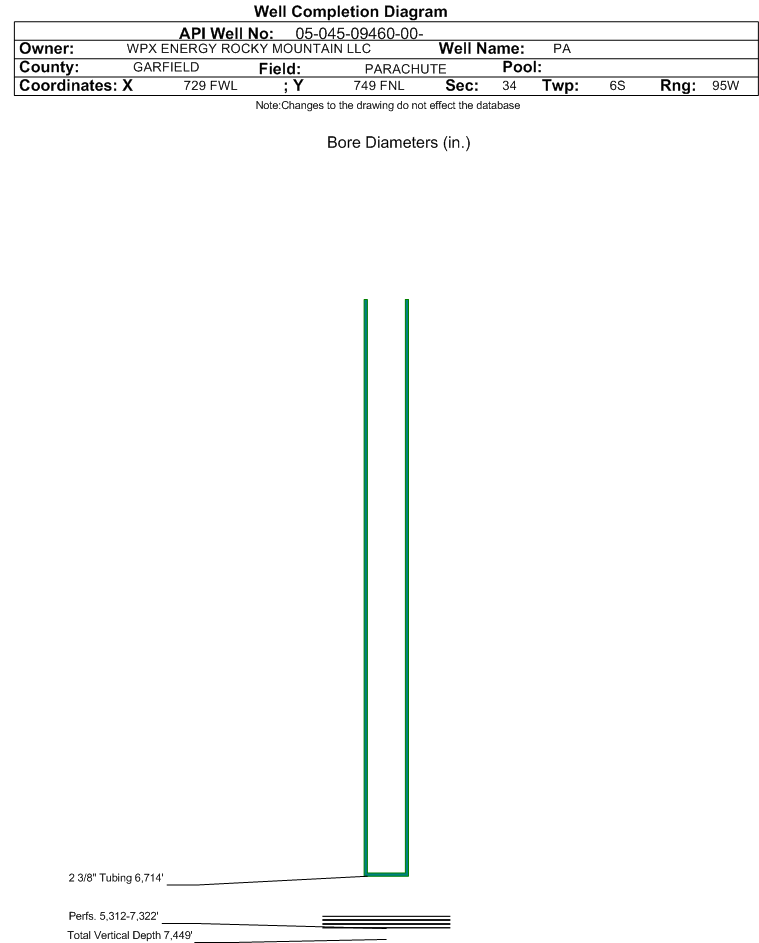

Wellbore #00             Wellbore Classification: OW             Status: PR - 4/12/2004             Measured TD: 7503 ft.    Vertical TD: 7449 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PR - 4/12/2004
Wellbore PermitDIRECTIONAL
Permit #:20032122 Expiration Date:11/18/2004
Proposed Top PZ Location:Sec: Twp: Footage: 749 FNL  729 FWL
Bottom Hole Location:Sec: Twp: Footage: 705 FNL  635 FWL
Proposed Depth/Form:7490 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 320, Drill Unit: N/2
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 2021 ft., Weight: 32.3 , Citings Type: PLANNED
Cement:Sacks: 875, Top: 0 ft., Bottom: 2021 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7490 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 200, Top: , Bottom:
Wellbore Completed
Completion Date:3/9/2004
Spud Date:2/15/2004Spud Date Is:ACTUAL
Measured TD:7503 ft.Measured PB depth:7443 ft.
True Vertical TD:7449 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 749 FNL  729 FWL
Bottom Hole Location:Sec: Twp: Footage: 705 FNL  635 FWL
Log Types:RESERVOIR MONITOR TOOL ELITE(CASED-HOLE PULSED NEU LOG),CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1806 ft.NN
FORT UNION2071 ft.NN
MESAVERDE4040 ft.NN
ROLLINS7396 ft.NN

Formation WFCM                     Formation Classification:  OW                     Status:  PR - 4/12/2004                 Interval Top: 5312 ft.    Interval Bottom: 7322 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.219 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:3/9/2004
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:6714 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/12/2004Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
CALC_MCF_GAS 1500
CASING_PRESS 1505
MCF_GAS 1500
TUBING_PRESS 1373
Perforation Data:
Interval Top:5312 ft.# Of Holes:89
Interval Bottom:7322 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)23
Total Gas Produced (MCF)17357
GOR754652
GOR DeterminationMCFE
Average BOE per Day8.260
Average MCFE per Day47.932

 Federal Financial Assurance  i

 Tribal Well  i No
