COGIS - WELL SCOUT CARD

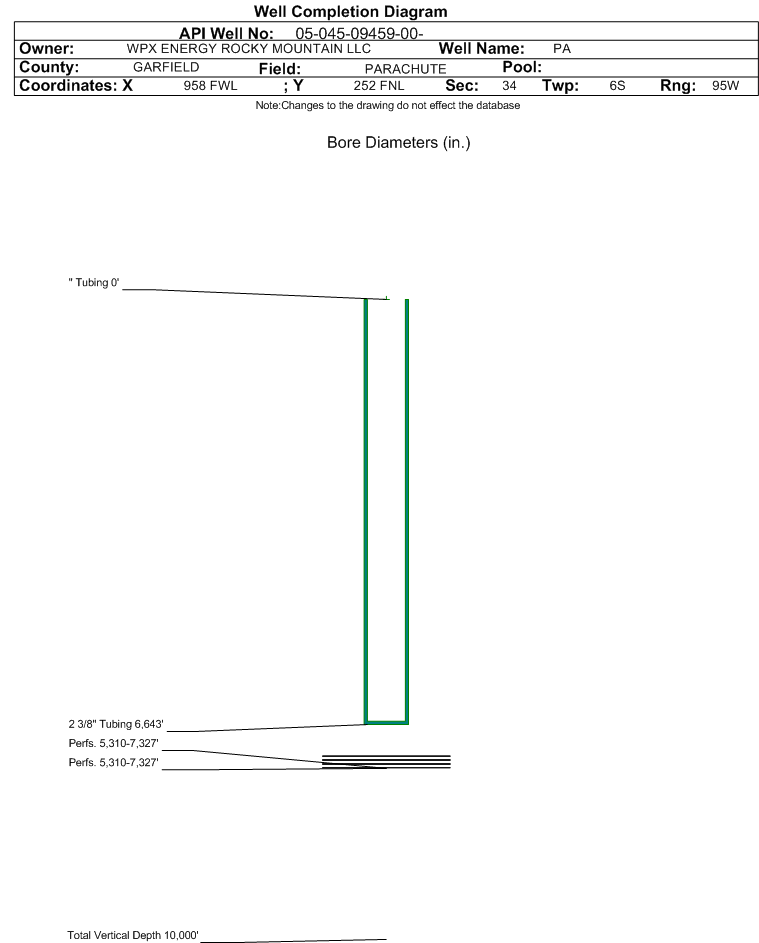

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09459		Well Classification: OW Status: PR - 4/12/2004
Well Name/No:PA #411-34
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date4/12/2004
FacilityID:270130LocationID:335337
County:GARFIELD #045Location:NWNW 34 6S95W 6
Field:PARACHUTE - #67350Elevation:5440 ft.
Basin:PICEANCE BASIN
Planned Location:252FNL  958 FWLLat/Long: 39.487589 / -107.990463Lat/Long Source: Calculated From Footages
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PR - 4/12/2004             Measured TD: 7506 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PR - 4/12/2004
Wellbore PermitDIRECTIONAL
Permit #:20032121 Expiration Date:11/18/2004
Proposed Top PZ Location:Sec: Twp: Footage: 166 FNL  753 FWL
Bottom Hole Location:Sec: Twp: Footage: 166 FNL  753 FWL
Proposed Depth/Form:7550 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 320, Drill Unit: N/2
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 2022 ft., Weight: 32.3 , Citings Type: PLANNED
Cement:Sacks: 875, Top: 0 ft., Bottom: 2020 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7550 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 200, Top: , Bottom:
Wellbore Completed
Completion Date:3/9/2004
Spud Date:2/4/2004Spud Date Is:ACTUAL
Measured TD:7506 ft.Measured PB depth:7446 ft.
True Vertical TD:True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 166 FNL  753 FWL
Bottom Hole Location:Sec: Twp: Footage: 166 FNL  753 FWL
Log Types:RESERVOIR MONITOR TOOL ELITE (CASED HOLE PULSED NEUTRON LOG), CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1808 ft.NN
FORT UNION2081 ft.NN
MESAVERDE4022 ft.NN
CAMEO6697 ft.NN
ROLLINS7391 ft.NN

Formation WFCM                     Formation Classification:  OW                     Status:  PR - 4/12/2004                 Interval Top: 5310 ft.    Interval Bottom: 7327 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:3/9/2004
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:6643 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/12/2004Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
CALC_MCF_GAS 1562
CASING_PRESS 1655
TUBING_PRESS 1566
Perforation Data:
Interval Top:5310 ft.# Of Holes:87
Interval Bottom:7327 ft.Hole Size:

Formation WMFK                     Formation Classification:  OW                     Status:  CM - 4/12/2004                 Interval Top: 5310 ft.    Interval Bottom: 7327 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORKCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:3/9/2004
Treatment Summary:6882-7327' 1000 GALS 7 1/2% HCL, 116686# 20/40, 2843 BBLS SLICK WATER; 6522-6726' 750 GALS 7 1/2% HCL, 99452# 20/40, 2539 BBLS SLICK WATER; 6050-6430' 750 GALS 7 1/2% HCL, 127846# 20/40, 2968 BBLS SLICK WATER; 5612-5835' 750 GALS 7 1/2% HCL, (CONT)
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WMFK.
Perforation Data:
Interval Top:5310 ft.# Of Holes:87
Interval Bottom:7327 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)16
Total Gas Produced (MCF)12573
GOR785812
GOR DeterminationMCFE
Average BOE per Day5.980
Average MCFE per Day34.719

 Federal Financial Assurance  i

 Tribal Well  i No
