Wellbore #00 Wellbore Classification: GW Status: PR - 4/1/2018 Measured TD: 5685 ft. Vertical TD: 5555 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 4/1/2018 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20032129 | Expiration Date: | 11/17/2004 | | Proposed Top PZ Location: | Sec:16 Twp: | Footage: 2310 FNL 1320 FWL | | Bottom Hole Location: | Sec:16 Twp: | Footage: 2310 FNL 1320 FWL | | Proposed Depth/Form: | 6600 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | HUNTER MESA FED | Unit Number: | COC 55972X | | Formation And Spacing: | Code: RLNS , Formation: ROLLINS , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: |
| | |

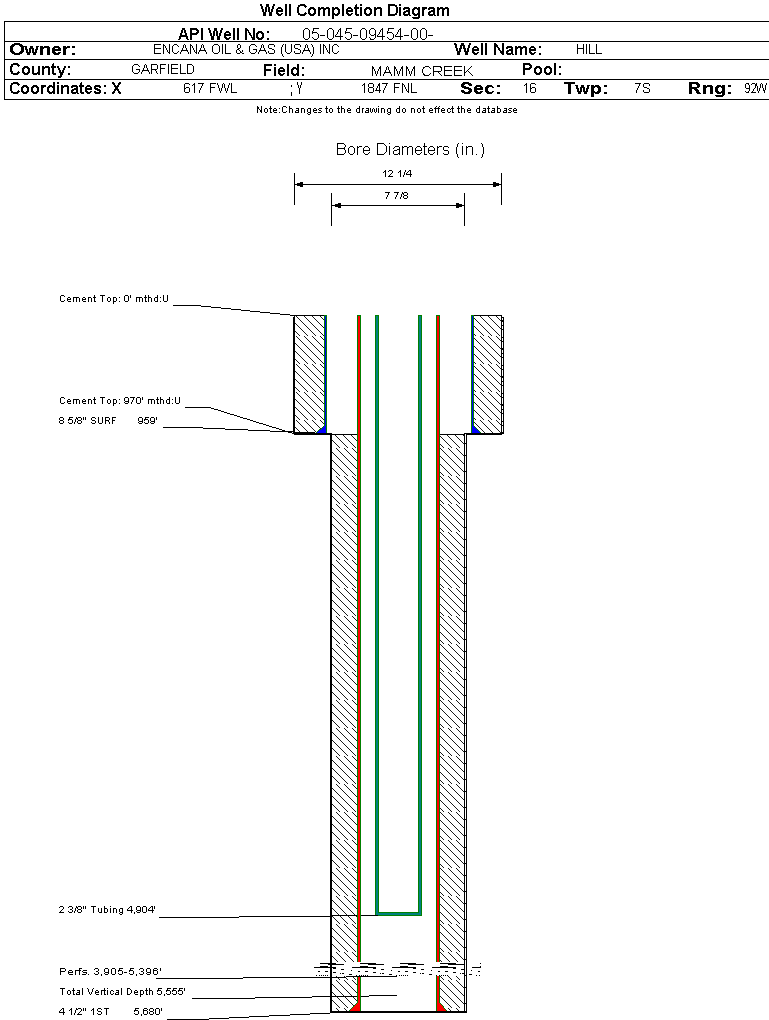

| Wellbore Completed | | Completion Date: | 5/4/2004 | | Spud Date: | 2/29/2004 | Spud Date Is: | ACTUAL | | Measured TD: | 5685 ft. | Measured PB depth: | 5582 ft. | | True Vertical TD: | 5555 ft. | True Vertical PB depth: | 0 ft. | | Top PZ Location: | Sec:16 Twp: | Footage: 2310 FNL 1320 FWL | | Bottom Hole Location: | Sec:16 Twp: | Footage: 2310 FNL 1320 FWL | | Log Types: | PEX, CBL | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 959 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 545, Top: 0 ft., Bottom: 959 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 5680 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 800, Top: 970 ft., Bottom: 5680 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 2953 ft. | N | N | | WILLIAMS FORK | 2954 ft. | 2685 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 4/1/2018 Interval Top: 3905 ft. Interval Bottom: 5396 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | N/A | Choke Size: | 0.281 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 5/4/2004 | | Treatment Summary: | STAGE 1: 5,137-5,396, 16-0.410" SHOTS, 3438 BBLS OF SLICKWATER, 146000 LBS OF 20-40 SAND STAGE 2: 4,924-5,053, 18-0.410" SHOTS, 3438 BBLS OF SLICKWATER, 140000 LBS OF 20-40 SAND STAGE 3: 4,375-4,570, 20-0.410" SHOTS, 4570 BBLS OF SLICKWATER, (CONT) |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 4904 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 4/23/2004 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 24 | | BBLS_OIL | 9 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 24 | | CALC_BBLS_OIL | 9 | | CALC_GOR | 168444 | | CALC_MCF_GAS | 1516 | | CASING_PRESS | 1040 | | MCF_GAS | 1516 |
| | Perforation Data: | | Interval Top: | 3905 ft. | # Of Holes: | 72 | | Interval Bottom: | 5396 ft. | Hole Size: | 0.41 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 39 |
| Total Gas Produced (MCF) | 30898 |
| GOR | 792256 |
| GOR Determination | MCFE |
| Average BOE per Day | 14.696 |
| Average MCFE per Day | 85.276 |
| Federal Financial Assurance | i | Y |
|
|
