COGIS - WELL SCOUT CARD

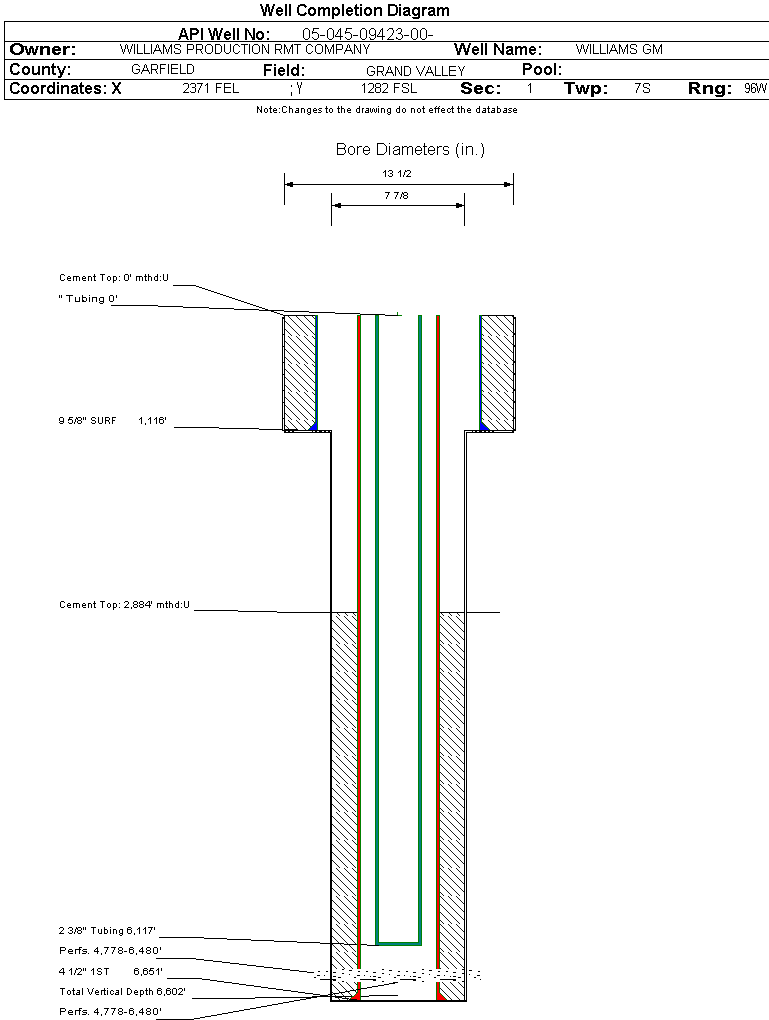

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09423		Well Classification: GW Status: PR - 5/16/2004
Well Name/No:WILLIAMS GM #334-1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date5/16/2004
FacilityID:269941LocationID:334905
County:GARFIELD #045Location:SWSE 1 7S96W 6
Field:GRAND VALLEY - #31290Elevation:5461 ft.
Basin:PICEANCE BASIN
Planned Location:1282FSL  2371 FELLat/Long: 39.463159 / -108.057355Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.463223 / -108.057681Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 5/16/2004             Measured TD: 6661 ft.    Vertical TD: 6602 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 5/16/2004
Wellbore PermitDIRECTIONAL
Permit #:20031961 Expiration Date:10/28/2004
Proposed Top PZ Location:Sec: Twp: Footage: 586 FSL  1194 FEL
Bottom Hole Location:Sec: Twp: Footage: 582 FSL  2004 FEL
Proposed Depth/Form:6705 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 320, Drill Unit: S/2
Wellbore Completed
Completion Date:4/2/2004
Spud Date:2/29/2004Spud Date Is:ACTUAL
Measured TD:6661 ft.Measured PB depth:6598 ft.
True Vertical TD:6602 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 586 FSL  1194 FEL
Bottom Hole Location:Sec: Twp: Footage: 582 FSL  2004 FEL
Log Types:HIGH DEFINITION INDUCTION LOG, COMP Z-DENSILOG,COMP NEUTRON, GR/CAL, CBL
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 1116 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 515, Top: 0 ft., Bottom: 1115 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 6651 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 810, Top: 2884 ft., Bottom: 6650 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1776 ft.NN
FORT UNION2049 ft.NN
MESAVERDE3611 ft.NN
CAMEO COAL6096 ft.NN
ROLLINS6618 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 5/16/2004                 Interval Top: 4778 ft.    Interval Bottom: 6480 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:4/2/2004
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:6117 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/16/2004Test Method:
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
CALC_MCF_GAS 1601
CASING_PRESS 1412
TUBING_PRESS 1328
Perforation Data:
Interval Top:4778 ft.# Of Holes:81
Interval Bottom:6480 ft.Hole Size:0.43 in.

Formation WMFK                     Formation Classification:  GW                     Status:  CM - 5/16/2004                 Interval Top: 4778 ft.    Interval Bottom: 6480 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORKCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/2/2004
Treatment Summary:6120-6480'1000 GAL 7 1/2%HCL,266784#40/70,3456 BBL SLICK WATER;5740-5966';750 GAL 7 1/2%HCL,242761# 40/70,3212 BBL SLICK WTR;5324-5580';750 GAL 7 1/2% HCL,209448#30/70,2899 BBL SLICK WTR;4778-5095';750 GAL 7 1/2% HCL,272516#30/70,3330 BBL SLK WTR.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WMFK.
Perforation Data:
Interval Top:4778 ft.# Of Holes:81
Interval Bottom:6480 ft.Hole Size:0.43 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)13
Total Gas Produced (MCF)11653
GOR896384
GOR DeterminationMCFE
Average BOE per Day5.539
Average MCFE per Day32.133

 Federal Financial Assurance  i

 Tribal Well  i No
