COGIS - WELL SCOUT CARD

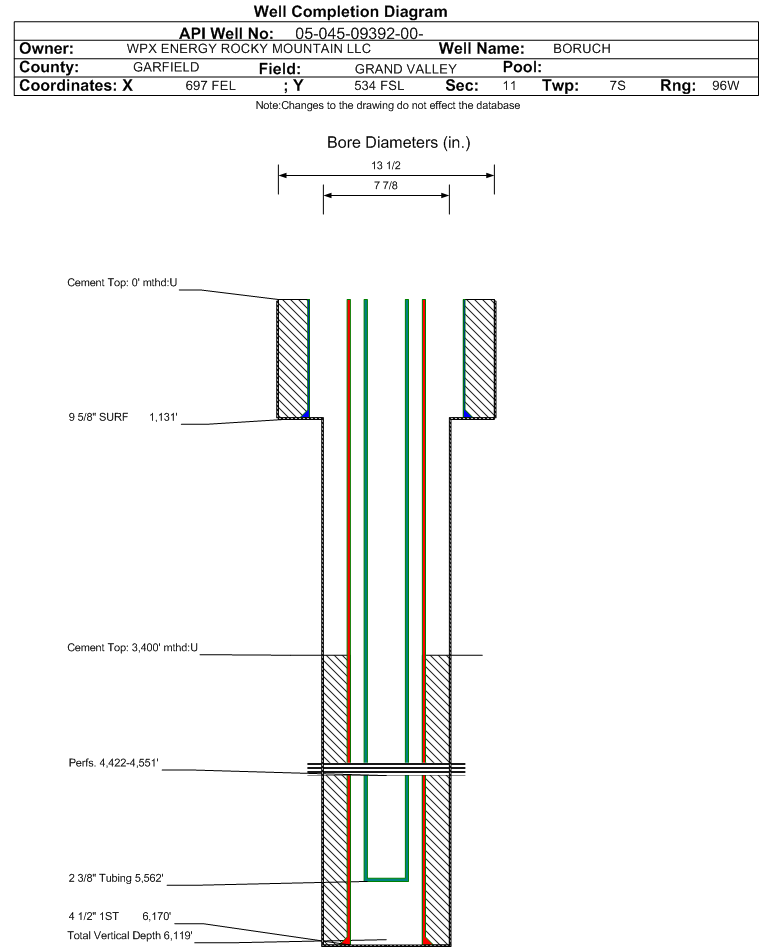

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09392		Well Classification: GW Status: PR - 2/13/2004
Well Name/No:BORUCH #GM 344-11
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC 50872
Facility Status:PRStatus Date2/13/2004
FacilityID:269666LocationID:334727
Municipality/County:PARACHUTE / GARFIELD #045Location:SESE 11 7S96W 6
Field:GRAND VALLEY - #31290Elevation:5304 ft.
Basin:PICEANCE BASIN
Planned Location:534FSL  697 FELLat/Long: 39.446159 / -108.070425Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.446270 / -108.070609Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 2/13/2004             Measured TD: 6179 ft.    Vertical TD: 6119 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 2/13/2004
Wellbore PermitDIRECTIONAL
Permit #:20031764 Expiration Date:10/5/2004
Proposed Top PZ Location:Sec: Twp: Footage: 1161 FSL  619 FEL
Bottom Hole Location:Sec: Twp: Footage: 1161 FSL  619 FEL
Proposed Depth/Form:6185 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 479-10 , Unit Acreage: 160, Drill Unit: SE
Wellbore Completed
Completion Date:1/25/2004
Spud Date:12/31/2003Spud Date Is:ACTUAL
Measured TD:6179 ft.Measured PB depth:6146 ft.
True Vertical TD:6119 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 1161 FSL  619 FEL
Bottom Hole Location:Sec: Twp: Footage: 1161 FSL  619 FEL
Log Types:DUAL INDUCTION, NEUTRON DENSITY, FMI, CBL
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1131 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 515, Top: 0 ft., Bottom: 1131 ft., Determination Method: VIS
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6170 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 780, Top: 3400 ft., Bottom: 6170 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
FORT UNION1685 ft.NN
MESAVERDE3143 ft.NN
CAMEO COAL5644 ft.NN
ROLLINS6085 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 2/13/2004                 Interval Top: 4422 ft.    Interval Bottom: 4551 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:1/25/2004Choke Size:0.200 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:
Production Method:FLOWING
Open Hole Completion:
Tubing Size:2.375 in.Tubing Setting Depth:5562 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/13/2004Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
CASING_PRESS 1526
MCF_GAS 1324
TUBING_PRESS 1438
Perforation Data:
Interval Top:4422 ft.# Of Holes:74
Interval Bottom:4551 ft.Hole Size:0.43 in.

Formation WMFK                     Formation Classification:  GW                     Status:  CM - 2/13/2004

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:0.200 in.
Formation Name:WILLIAMS FORKCommingled:Yes
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:1/25/2004
Treatment Summary:5602-6019'000 GAL 7 1/2% HCL, 188114# 30/50 SAND, 3099 BBLS SLICK WATER: 5115-5374' 1000 GAL 7 1/2% HCL,188603# 30/50 SAND, 2981 BBL SLICK WATER;4644-5033' 750 GAL 7 1/2% HCL, 195764# 30/50SAND, 3044 BBLS SLICK WATER;4422-4551'179060#30/50,2805 BBL SLK WTR.,1000 GAL 7 1/2% HCL
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WMFK.
No Perforation Data was found for formation WMFK.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)12
Total Gas Produced (MCF)8126
GOR677166
GOR DeterminationMCFE
Average BOE per Day3.874
Average MCFE per Day22.461

 Federal Financial Assurance  i

 Tribal Well  i No
