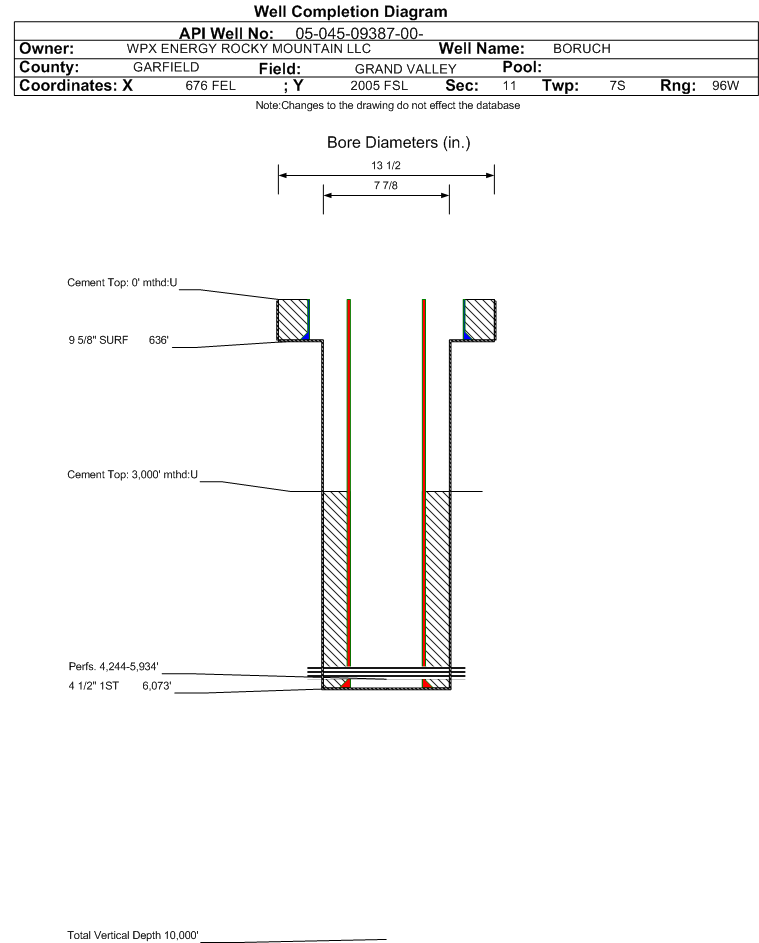

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09387		Well Classification: GW Status: PR - 2/11/2004
Well Name/No:BORUCH #GM 343-11
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date2/11/2004
FacilityID:269641LocationID:334984
County:GARFIELD #045Location:NESE 11 7S96W 6
Field:GRAND VALLEY - #31290Elevation:5252 ft.
Basin:PICEANCE BASIN
Planned Location:2005FSL  676 FELLat/Long: 39.450189 / -108.070375Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.450309 / -108.070554Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 2/11/2004             Measured TD: 6080 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 2/11/2004
Wellbore Permit
Permit #:20031733 Expiration Date:10/1/2004
Proposed Depth/Form:6175 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 479-10 , Unit Acreage: 160, Drill Unit: SE
Wellbore Completed
Completion Date:1/12/2004
Spud Date:11/25/2003Spud Date Is:ACTUAL
Measured TD:6080 ft.Measured PB depth:6050 ft.
True Vertical TD:True Vertical PB depth:
Log Types:THERMAL MULTIGATE DECAY LOG, CHI PROCESSED TRIPLE COMBOLOG, CBL
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 636 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 350, Top: 0 ft., Bottom: 636 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6073 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 900, Top: 3000 ft., Bottom: 6073 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
FORT UNION1644 ft.NN
MESAVERDE3041 ft.NN
CAMEO COAL5548 ft.NN
ROLLINS6132 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 2/11/2004                 Interval Top: 4244 ft.    Interval Bottom: 5934 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:2/11/2004Choke Size:0.200 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:Yes
Production Method:FLOWING
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/11/2004Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
CASING_PRESS 1598
MCF_GAS 1394
TUBING_PRESS 1509
Perforation Data:
Interval Top:4244 ft.# Of Holes:70
Interval Bottom:5934 ft.Hole Size:0.43 in.

Formation WMFK                     Formation Classification:  GW                     Status:  CM - 2/11/2004

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORKCommingled:Yes
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:1/12/2004
Treatment Summary:5704-5934',1000 GAL 7 1/2% HCL;148932#20/40,3364 BBL SLICK WTR;5170-5558'750 GAL 7 1/2% HCL,134571#20/40,3085 BBL SLICK WTR;4578-4868' 750 GAL 7 1/2% HCL 118612#20/40,2732 BBL SLICK WTR;4244-4489' 750 GAL 7 1/2% HCLM 143156# 20/40, 5070 BBL SLICK WATER.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WMFK.
No Perforation Data was found for formation WMFK.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)19
Total Gas Produced (MCF)14453
GOR760684
GOR DeterminationMCFE
Average BOE per Day6.874
Average MCFE per Day39.893

 Federal Financial Assurance  i

 Tribal Well  i No
