COGIS - WELL SCOUT CARD

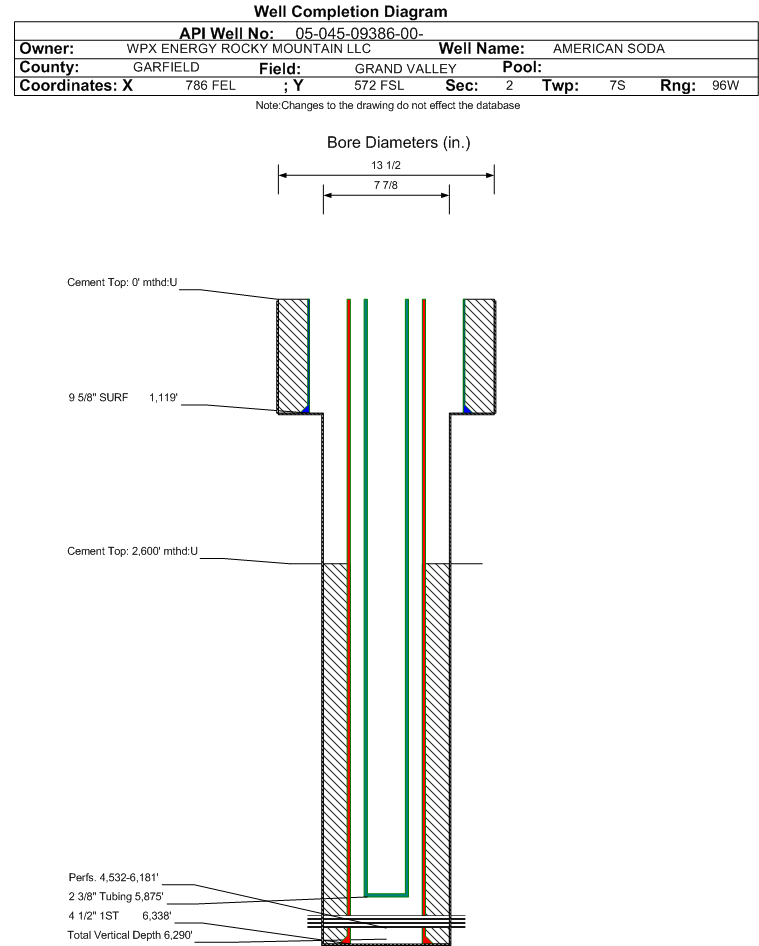

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09386		Well Classification: GW Status: PR - 3/7/2004
Well Name/No:AMERICAN SODA #GM 344-2
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date3/7/2004
FacilityID:269640LocationID:334887
County:GARFIELD #045Location:SESE 2 7S96W 6
Field:GRAND VALLEY - #31290Elevation:5180 ft.
Basin:PICEANCE BASIN
Planned Location:572FSL  786 FELLat/Long: 39.461039 / -108.070635Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.461199 / -108.070901Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 3/7/2004             Measured TD: 6350 ft.    Vertical TD: 6290 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 3/7/2004
Wellbore PermitDIRECTIONAL
Permit #:20031732 Expiration Date:9/30/2004
Proposed Top PZ Location:Sec: Twp: Footage: 939 FSL  309 FEL
Bottom Hole Location:Sec: Twp: Footage: 985 FSL  250 FEL
Proposed Depth/Form:6340 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 479-10 , Unit Acreage: 40, Drill Unit: SESE
Wellbore Completed
Completion Date:2/9/2004
Spud Date:1/15/2004Spud Date Is:ACTUAL
Measured TD:6350 ft.Measured PB depth:5294 ft.
True Vertical TD:6290 ft.True Vertical PB depth:6234 ft.
Top PZ Location:Sec: Twp: Footage: 939 FSL  309 FEL
Bottom Hole Location:Sec: Twp: Footage: 985 FSL  250 FEL
Log Types:DUAL INDUSCTION, SPECTRAL DENSITY, DUAL SPACED NEUTRON, CBL
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 1119 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 515, Top: , Bottom: 1119 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 6338 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 910, Top: 2600 ft., Bottom: 6338 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
GREELEY SAND1386 ft.NN
FORT UNION1708 ft.NN
MESAVERDE3226 ft.NN
CAMEO COAL5777 ft.NN
ROLLINS6255 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 3/7/2004                  Interval Top: 4532 ft.    Interval Bottom: 6181 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.234 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:2/9/2004
Treatment Summary:WMFK-4532-4708 750 GASL 7 1/2% HCL, 140687# 20/40 SAND, 3198 BBL SLICK WATER; WMFK-5556-5912 1000 GAL 7 1/2% HCL, 118489# 20/40 SAND, 2745 BBL SLICK WATER; WMFK-5976-6181 1000 GAL 7 1/2% HCL, 128615# 20/40 SAND, 2977 BBL SLICK WATER; WMFK-5556-5912-CONT'D
Tubing Size:2.375 in.Tubing Setting Depth:5875 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/7/2004Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_GOR 137400
CALC_MCF_GAS 1374
CASING_PRESS 1250
MCF_GAS 1374
TUBING_PRESS 1104
Perforation Data:
Interval Top:4532 ft.# Of Holes:92
Interval Bottom:6181 ft.Hole Size:0.43 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)16
Total Gas Produced (MCF)13346
GOR834125
GOR DeterminationMCFE
Average BOE per Day6.348
Average MCFE per Day36.827

 Federal Financial Assurance  i

 Tribal Well  i No
