COGIS - WELL SCOUT CARD

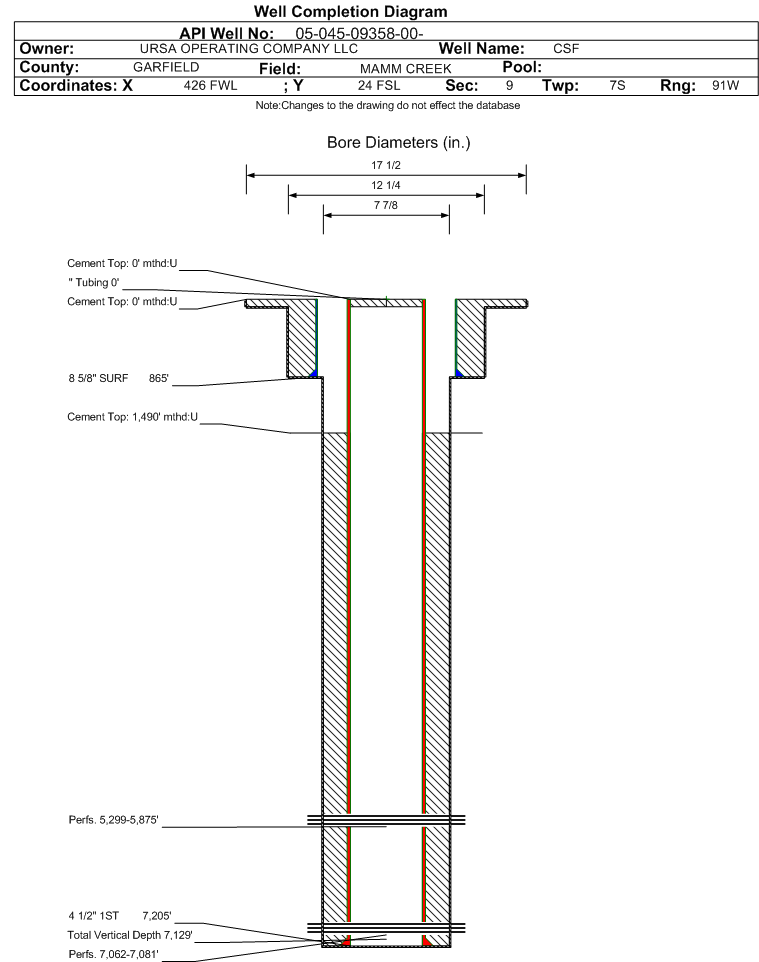

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09358		Well Classification: GW Status: PR - 11/1/2023
Well Name/No:CSF #14C-09-07-91
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC 66578
Facility Status:PRStatus Date11/1/2023
FacilityID:269356LocationID:324241
County:GARFIELD #045Location:SWSW 9 7S91W 6
Field:MAMM CREEK - #52500Elevation:7048 ft.
Basin:PICEANCE BASIN
Planned Location:24FSL  426 FWLLat/Long: 39.454572 / -107.566220Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.454599 / -107.566218Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 11/1/2023             Measured TD: 7205 ft.    Vertical TD: 7129 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 11/1/2023
Wellbore PermitDIRECTIONAL
Permit #:20052441 Expiration Date:8/11/2006
Proposed Top PZ Location:Sec:9 Twp: 7S 91W Footage: 667 FSL  660 FWL
Bottom Hole Location:Sec: Twp: Footage: 980 FSL  350 FWL
Proposed Depth/Form:7136 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: CMEO , Formation: CAMEO , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Casing:String Type: CONDUCTOR, Hole Size: 17.5 in., Size: 14 in., Top: , Depth: 40 ft., Weight: , Citings Type: PLANNED
Cement:Sacks: 31, Top: 0 ft., Bottom: 40 ft.
Wellbore Completed
Completion Date:N/A
Spud Date:9/11/2005Spud Date Is:ACTUAL
Measured TD:7205 ft.Measured PB depth:7147 ft.
True Vertical TD:7129 ft.True Vertical PB depth:7076 ft.
Top PZ Location:Sec:9 Twp: 7S 91WFootage: 667 FSL  660 FWL
Bottom Hole Location:Sec: Twp: Footage: 980 FSL  350 FWL
Log Types:CEMENT BOND LOG, TEMPERATURE SURVEY
Casing:String Type: CONDUCTOR, Hole Size: 17.5 in., Size: , Top: , Depth: 82 ft., Weight: 48 , Citings Type: ACTUAL
Cement:Sacks: 31, Top: 0 ft., Bottom: 82 ft., Determination Method: VISU
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 865 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 357, Top: 0 ft., Bottom: 865 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7205 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1370, Top: 1490 ft., Bottom: 7205 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK3089 ft.NN
CAMEO6685 ft.NN
ROLLINS7005 ft.NN

Formation RLNS                     Formation Classification:  GW                     Status:  SI - 7/1/2025                  Interval Top: 7062 ft.    Interval Bottom: 7081 ft.

 Completed Information for Formation ROLLINS
1st Production Date:N/AChoke Size:
Formation Name:ROLLINSCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/22/2005
Treatment Summary:ROLLINS- FRAC W/ 109,914 GALS SLICKWATER & 70,200# 30/50 SAND. PLUG SET @ 7020' WHICH COVERS THE PERFS FROM 7062' - 7081'.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 100
CALC_BBLS_H2O 100
CALC_MCF_GAS 677
CASING_PRESS 500
MCF_GAS 677
Perforation Data:
Interval Top:7062 ft.# Of Holes:18
Interval Bottom:7081 ft.Hole Size:0.35 in.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 11/1/2023                 Interval Top: 5299 ft.    Interval Bottom: 5875 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:11/17/2007Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:7/13/2010
Treatment Summary:A portion of the WFCM is T&A'd from 5875'-6956'
Formation Treatment
Treatment Date:11/7/2007
Treatment Summary:WFCM- FRAC W/ 1,237,062 GALS SLICKWATER; 409,397# 20/40 SAND & 8,468# 13/40 FLEXSAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 518
BBLS_OIL 1
BTU_GAS 1140
CALC_BBLS_H2O 518
CALC_BBLS_OIL 1
CALC_GOR 107400
CALC_MCF_GAS 1074
CASING_PRESS 1500
GRAVITY_OIL 46
MCF_GAS 1074
TUBING_PRESS 800
Perforation Data:
Interval Top:5299 ft.# Of Holes:54
Interval Bottom:5875 ft.Hole Size:0.35 in.
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
11/2024 - 10/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)501
GOR
GOR DeterminationMCFE
Average BOE per Day0.238
Average MCFE per Day1.371

 Federal Financial Assurance  i Y

 Tribal Well  i No
