COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09350		Well Classification: OW Status: PR - 12/30/2003
Well Name/No:GM #334-27
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date12/30/2003
FacilityID:269327LocationID:335398
County:GARFIELD #045Location:SWSE 27 6S96W 6
Field:GRAND VALLEY - #31290Elevation:5570 ft.
Basin:PICEANCE BASIN
Planned Location:379FSL  2060 FELLat/Long: 39.488798 / -108.092566Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.488999 / -108.092480Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PR - 12/30/2003             Measured TD: 6901 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PR - 12/30/2003
Wellbore PermitDIRECTIONAL
Permit #:20031551 Expiration Date:9/8/2004
Proposed Top PZ Location:Sec: Twp: Footage: 448 FSL  2008 FEL
Bottom Hole Location:Sec: Twp: Footage: 448 FSL  2008 FEL
Proposed Depth/Form:6950 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 320, Drill Unit: S/2
Wellbore Completed
Completion Date:12/18/2003
Spud Date:11/8/2003Spud Date Is:ACTUAL
Measured TD:6901 ft.Measured PB depth:6870 ft.
True Vertical TD:True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 448 FSL  2008 FEL
Bottom Hole Location:Sec: Twp: Footage: 448 FSL  2008 FEL
Log Types:HIGH RES. INDUSTION SPECTRAL DENSITY DUAL SPACED NEUTRON, CBL

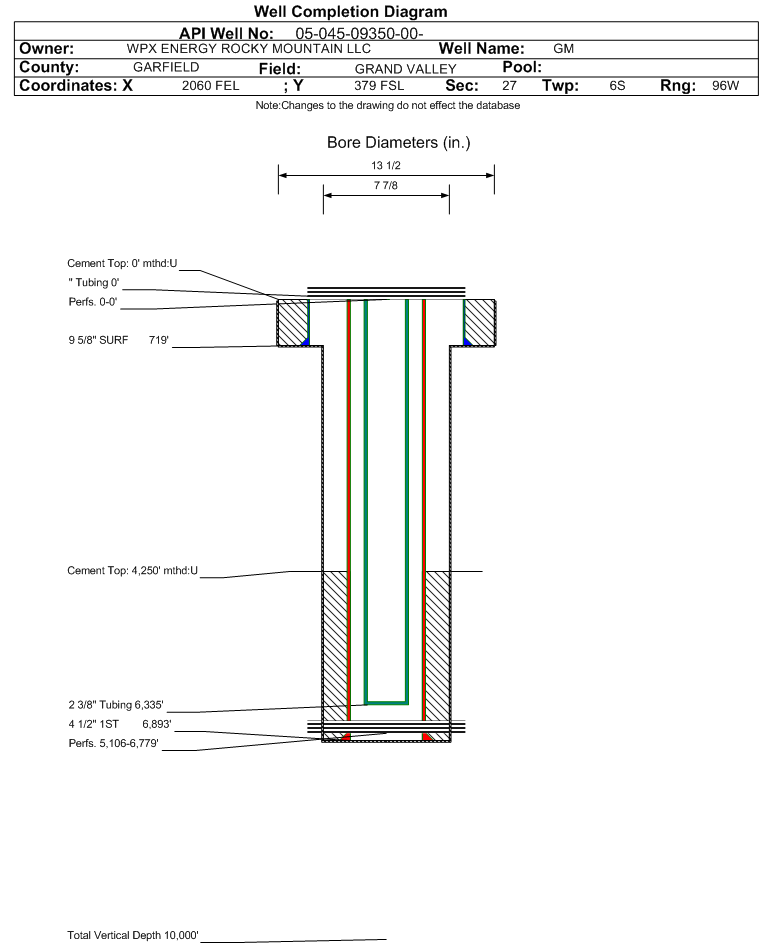

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 719 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 348, Top: , Bottom: 719 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 6893 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 880, Top: 4250 ft., Bottom: 6893 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
GREELEY SAND1981 ft.NN
FORT UNION2288 ft.NN
MESAVERDE3730 ft.NN
CAMEO6348 ft.NN
ROLLINS6836 ft.NN

Formation WFCM                     Formation Classification:  OW                     Status:  PR - 12/30/2003                Interval Top: 5106 ft.    Interval Bottom: 6779 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:12/18/2003
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:6335 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/30/2003Test Method:
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
CALC_MCF_GAS 1275
CASING_PRESS 1585
TUBING_PRESS 1428
Perforation Data:
Interval Top:5106 ft.# Of Holes:75
Interval Bottom:6779 ft.Hole Size:

Formation WMFK                     Formation Classification:  OW                     Status:  CM - 12/30/2003

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORKCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:12/18/2003
Treatment Summary:6514-6779 1000GALS 7 1/2%HCL,108396#20/40,2639 BBLS SLICKWATER;5949-6329 3000GALS 7 1/2%HCL, 122010#20/40,3381 BBLS SLICKWATER;5560-5778 1000GALS 7 1/2%HCL,115002#20/40,2708 BBLS SLICKWATER;5106-5482 1000GALS 7 1/2% HCL,118575# 20/40,2821 BBLS SLICKWATER.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WMFK.
Perforation Data:
Interval Top:# Of Holes:
Interval Bottom:Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)15
Total Gas Produced (MCF)9293
GOR619533
GOR DeterminationMCFE
Average BOE per Day4.428
Average MCFE per Day25.707

 Federal Financial Assurance  i

 Tribal Well  i No
