Wellbore #00 Wellbore Classification: GW Status: PR - 1/22/2005 Measured TD: 7680 ft. Vertical TD: 7605 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 1/22/2005 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20031712 | Expiration Date: | 9/4/2004 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1329 FSL 670 FEL | | Bottom Hole Location: | Sec:36 Twp: | Footage: 1330 FSL 670 FEL | | Proposed Depth/Form: | 7800 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | GRASS MESA UNIT | Unit Number: | COC 56608X | | Formation And Spacing: | Code: RLNS , Formation: ROLLINS , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: |
| | |

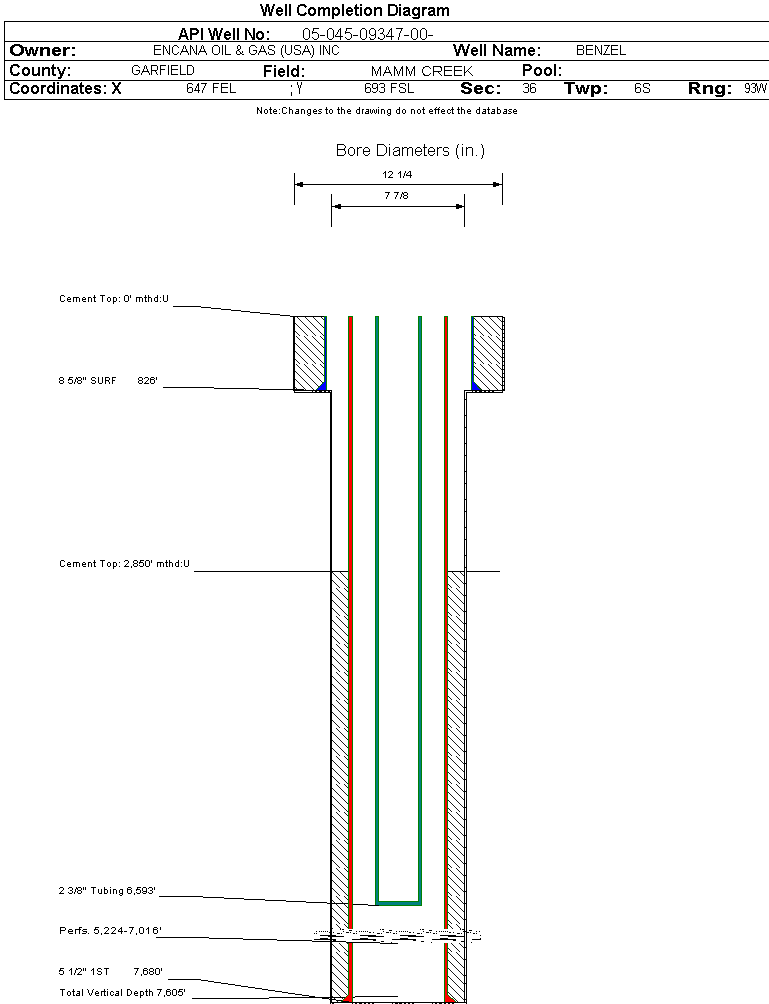

| Wellbore Completed | | Completion Date: | 10/4/2004 | | Spud Date: | 12/2/2003 | Spud Date Is: | ACTUAL | | Measured TD: | 7680 ft. | Measured PB depth: | 7542 ft. | | True Vertical TD: | 7605 ft. | True Vertical PB depth: | 7467 ft. | | Top PZ Location: | Sec: Twp: | Footage: 1329 FSL 670 FEL | | Bottom Hole Location: | Sec:36 Twp: | Footage: 1330 FSL 670 FEL | | Log Types: | | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 826 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 450, Top: 0 ft., Bottom: 826 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 7680 ft., Weight: 17 , Citings Type: ACTUAL | | Cement: | Sacks: 1020, Top: 2850 ft., Bottom: 7680 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 4107 ft. | N | N | | WILLIAMS FORK | 4108 ft. | 7363 ft. | N | N | | ROLLINS | 7364 ft. | 7680 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 1/22/2005 Interval Top: 5224 ft. Interval Bottom: 7016 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | N/A | Choke Size: | 0.375 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 10/4/2004 | | Treatment Summary: | STAGES 3 THROUGH 7 WERE WITH A TOTAL OF 19,471 BBLS SLICKWATER AND 811,030# OF 20-40 SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6593 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 1/22/2005 | Test Method: | FLOWING | | Hours Tested: | 15 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BBLS_OIL | 0 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 1571 | | CASING_PRESS | 723 | | MCF_GAS | 982 |
| | Perforation Data: | | Interval Top: | 5224 ft. | # Of Holes: | 80 | | Interval Bottom: | 7016 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 36 |
| Total Gas Produced (MCF) | 21326 |
| GOR | 592388 |
| GOR Determination | MCFE |
| Average BOE per Day | 10.172 |
| Average MCFE per Day | 59.014 |
| Federal Financial Assurance | i | Y |
|
|
