COGIS - WELL SCOUT CARD

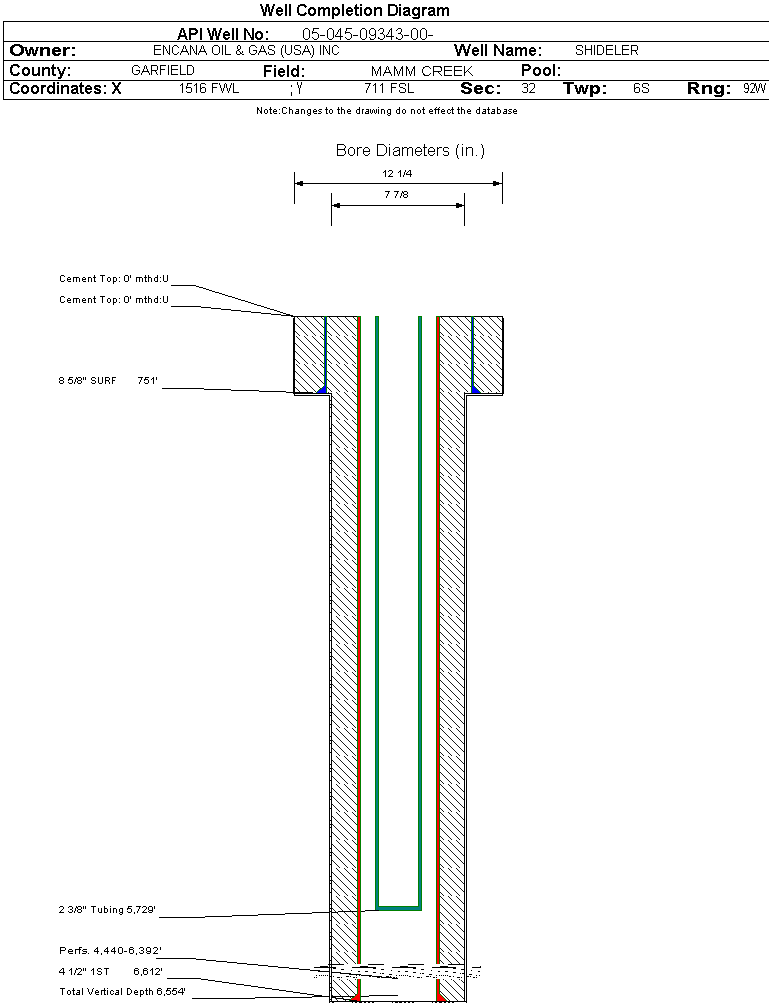

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09343		Well Classification: GW Status: SI - 4/1/2025
Well Name/No:SHIDELER #32-11C (N32)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date4/1/2025
FacilityID:269306LocationID:334856
County:GARFIELD #045Location:SESW 32 6S92W 6
Field:MAMM CREEK - #52500Elevation:5893 ft.
Basin:PICEANCE BASIN
Planned Location:711FSL  1516 FWLLat/Long: 39.477911 / -107.694164Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.478000 / -107.694150Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: SI - 4/1/2025             Measured TD: 6612 ft.    Vertical TD: 6554 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        SI - 4/1/2025
Wellbore PermitDIRECTIONAL
Permit #:20031530 Expiration Date:9/4/2004
Proposed Top PZ Location:Sec: Twp: Footage: 1331 FSL  1650 FWL
Bottom Hole Location:Sec: Twp: Footage: 1331 FSL  1650 FWL
Proposed Depth/Form:7500 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit:GRASS MESA UNIT Unit Number:COC 56608X
Formation And Spacing:Code: RLNS , Formation: ROLLINS , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:3/1/2004
Spud Date:11/6/2003Spud Date Is:ACTUAL
Measured TD:6612 ft.Measured PB depth:6566 ft.
True Vertical TD:6554 ft.True Vertical PB depth:0 ft.
Top PZ Location:Sec: Twp: Footage: 1331 FSL  1650 FWL
Bottom Hole Location:Sec: Twp: Footage: 1331 FSL  1650 FWL
Log Types:RST, CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 751 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 450, Top: 0 ft., Bottom: 751 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6612 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1119, Top: 0 ft., Bottom: 6612 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
WASATCH G0 ft.3382 ft.NN
WILLIAMS FORK3383 ft.6612 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  SI - 4/1/2025                  Interval Top: 4440 ft.    Interval Bottom: 6392 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:0.375 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:3/1/2004
Treatment Summary:SEE SCANNED DOC# 1160979
Tubing Size:2.375 in.Tubing Setting Depth:5729 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/26/2004Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 1
BTU_GAS 1170
CALC_BBLS_OIL 1
CALC_GOR 850
CALC_MCF_GAS 850
CASING_PRESS 2027
MCF_GAS 850
Perforation Data:
Interval Top:4440 ft.# Of Holes:124
Interval Bottom:6392 ft.Hole Size:0.41 in.
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
10/2024 - 09/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)8
GOR
GOR DeterminationMCFE
Average BOE per Day0.003
Average MCFE per Day0.022

 Federal Financial Assurance  i Y

 Tribal Well  i No
