COGIS - WELL SCOUT CARD

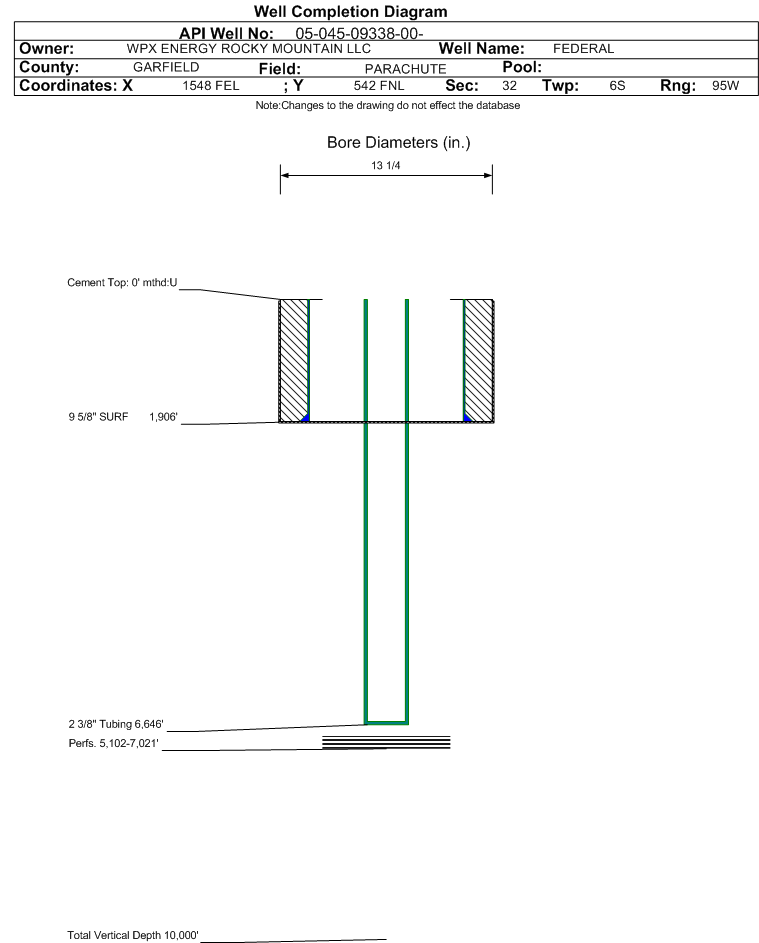

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09338		Well Classification: OW Status: PR - 4/1/2012
Well Name/No:FEDERAL #PA 31-32
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC 62740
Facility Status:PRStatus Date4/1/2012
FacilityID:269240LocationID:335452
County:GARFIELD #045Location:NWNE 32 6S95W 6
Field:PARACHUTE - #67350Elevation:5434 ft.
Basin:PICEANCE BASIN
Planned Location:542FNL  1548 FELLat/Long: 39.486779 / -108.018094Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.486792 / -108.018056Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PR - 5/1/2012             Measured TD: 7145 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PR - 5/1/2012
Wellbore Permit
Permit #:Expiration Date:8/26/2004
Proposed Depth/Form:7200 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-35 , Unit Acreage: 160, Drill Unit: NE/4
Casing:String Type: CONDUCTOR, Hole Size: , Size: 16 in., Top: , Depth: 45 ft., Weight: , Citings Type: PLANNED
Cement:Sacks: , Top: , Bottom:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7200 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 200, Top: , Bottom:
Wellbore Completed
Completion Date:12/2/2003
Spud Date:10/13/2003Spud Date Is:ACTUAL
Measured TD:7145 ft.Measured PB depth:7095 ft.
True Vertical TD:True Vertical PB depth:
Log Types:DUAL IND.,SPECTRAL DEN.,DUAL SPACED NEU., CBL
Casing:String Type: SURF, Hole Size: 13.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1906 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 705, Top: , Bottom: 1906 ft., Determination Method:
FormationInterval TopLog BottomCoredDSTs
WASATCH G1635 ft.NN
FORT UNION2024 ft.NN
MESAVERDE3722 ft.NN
CAMEO6367 ft.NN
ROLLINS7075 ft.NN

Formation WFCM                     Formation Classification:  OW                     Status:  PR - 5/1/2012                  Interval Top: 5102 ft.    Interval Bottom: 7021 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:12/2/2003
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:6646 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/5/2004Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
CALC_MCF_GAS 1386
CASING_PRESS 1737
MCF_GAS 1386
TUBING_PRESS 1640
Perforation Data:
Interval Top:5102 ft.# Of Holes:74
Interval Bottom:7021 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)14
Total Gas Produced (MCF)11485
GOR820357
GOR DeterminationMCFE
Average BOE per Day5.468
Average MCFE per Day31.708

 Federal Financial Assurance  i Y

 Tribal Well  i No
