COGIS - WELL SCOUT CARD

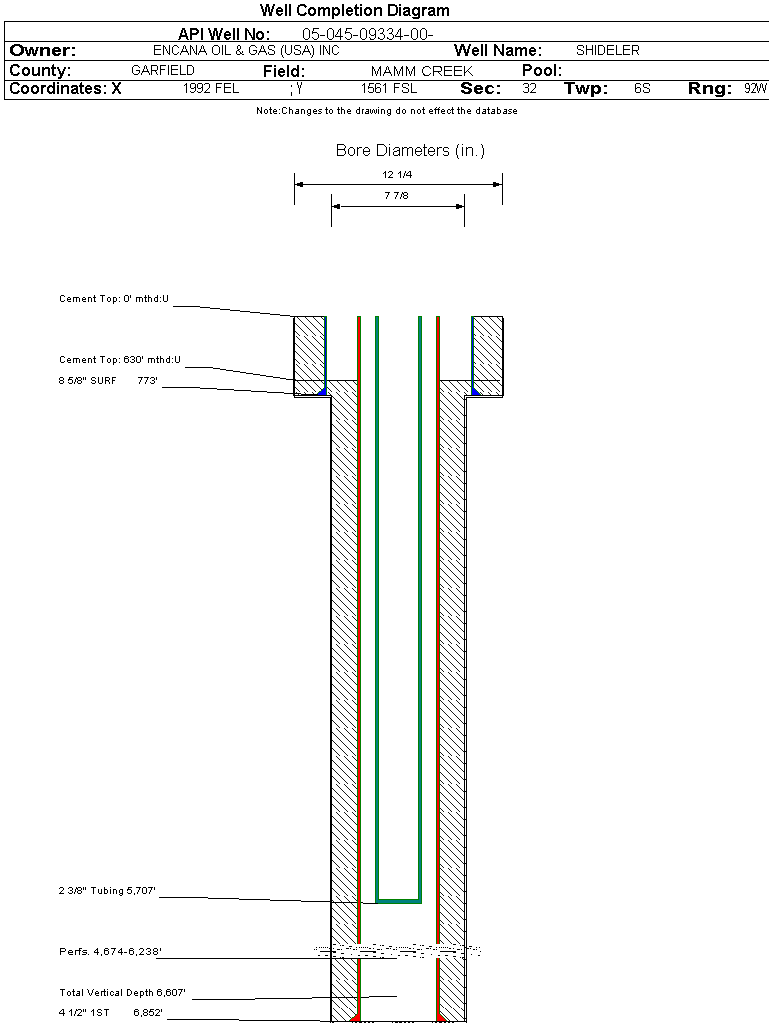

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09334		Well Classification: GW Status: PR - 2/5/2004
Well Name/No:SHIDELER #32-7D (J32)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date2/5/2004
FacilityID:269232LocationID:334822
County:GARFIELD #045Location:NWSE 32 6S92W 6
Field:MAMM CREEK - #52500Elevation:5722 ft.
Basin:PICEANCE BASIN
Planned Location:1561FSL  1992 FELLat/Long: 39.480291 / -107.687824Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.480350 / -107.687880Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 2/5/2004             Measured TD: 6865 ft.    Vertical TD: 6607 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 2/5/2004
Wellbore PermitDIRECTIONAL
Permit #:20031507 Expiration Date:8/26/2004
Proposed Top PZ Location:Sec: Twp: Footage: 2653 FNL  1329 FEL
Bottom Hole Location:Sec: Twp: Footage: 2640 FNL  1320 FEL
Proposed Depth/Form:7400 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit:GRASS MESA UNIT Unit Number:COC 56608X
Formation And Spacing:Code: RLNS , Formation: ROLLINS , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:2/20/2004
Spud Date:11/17/2003Spud Date Is:ACTUAL
Measured TD:6865 ft.Measured PB depth:6784 ft.
True Vertical TD:6607 ft.True Vertical PB depth:6526 ft.
Top PZ Location:Sec: Twp: Footage: 2653 FNL  1329 FEL
Bottom Hole Location:Sec: Twp: Footage: 2640 FNL  1320 FEL
Log Types:CBL/CCL, PEX
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 773 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 0 ft., Bottom: 773 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6852 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1675, Top: 630 ft., Bottom: 6852 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.3525 ft.NN
WILLIAMS FORK3526 ft.6764 ft.NN
ROLLINS6765 ft.6865 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 2/5/2004                  Interval Top: 4674 ft.    Interval Bottom: 6238 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:0.375 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:2/20/2004
Treatment Summary:STAGE 1: 6,144-6,238, 18-0.380" SHOTS, 3180 BBLS OF SLICKWATER, 130000 LBS OF 20-40 SAND. STAGE 2: 5,884-6,029, 16-0.380" SHOTS, 2351 BBLS OF SLICKWATER, 97840 LBS OF 20-40 SAND. STAGE 3: 5,359-5,613, 16-0.380" SHOTS, 3104 BBLS OF SLICKWATER, (CONT)
Tubing Size:2.375 in.Tubing Setting Depth:5707 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/5/2004Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 24
BBLS_OIL 4
BTU_GAS 1170
CALC_BBLS_H2O 24
CALC_BBLS_OIL 4
CALC_GOR 150000
CALC_MCF_GAS 600
CASING_PRESS 200
MCF_GAS 600
Perforation Data:
Interval Top:4674 ft.# Of Holes:90
Interval Bottom:6238 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)11012
GOR
GOR DeterminationMCFE
Average BOE per Day5.198
Average MCFE per Day30.171

 Federal Financial Assurance  i Y

 Tribal Well  i No
