COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09321		Well Classification: GW Status: PR - 12/8/2003
Well Name/No:GM #11-26
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date12/8/2003
FacilityID:269117LocationID:335425
County:GARFIELD #045Location:NENE 27 6S96W 6
Field:GRAND VALLEY - #31290Elevation:5768 ft.
Basin:PICEANCE BASIN
Planned Location:951FNL  686 FELLat/Long: 39.499848 / -108.087656Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.499843 / -108.087646Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 12/8/2003             Measured TD: 7364 ft.    Vertical TD: 7196 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 12/8/2003
Wellbore PermitDIRECTIONAL
Permit #:20031393 Expiration Date:8/13/2004
Proposed Top PZ Location:Sec:26 Twp: 6S 96W Footage: 825 FNL  395 FWL
Bottom Hole Location:Sec:26 Twp: 6S 96W Footage: 863 FNL  492 FWL
Proposed Depth/Form:7320 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 479-5 , Unit Acreage: 320, Drill Unit: W/2
Wellbore Completed
Completion Date:12/3/2003
Spud Date:9/25/2003Spud Date Is:ACTUAL
Measured TD:7364 ft.Measured PB depth:7294 ft.
True Vertical TD:7196 ft.True Vertical PB depth:
Top PZ Location:Sec:26 Twp: 6S 96WFootage: 825 FNL  395 FWL
Bottom Hole Location:Sec:26 Twp: 6S 96WFootage: 863 FNL  492 FWL
Log Types:DUAL INDUCTION SPECTRAL DENSITY NEUTRON, CEMENT BOND LOG.

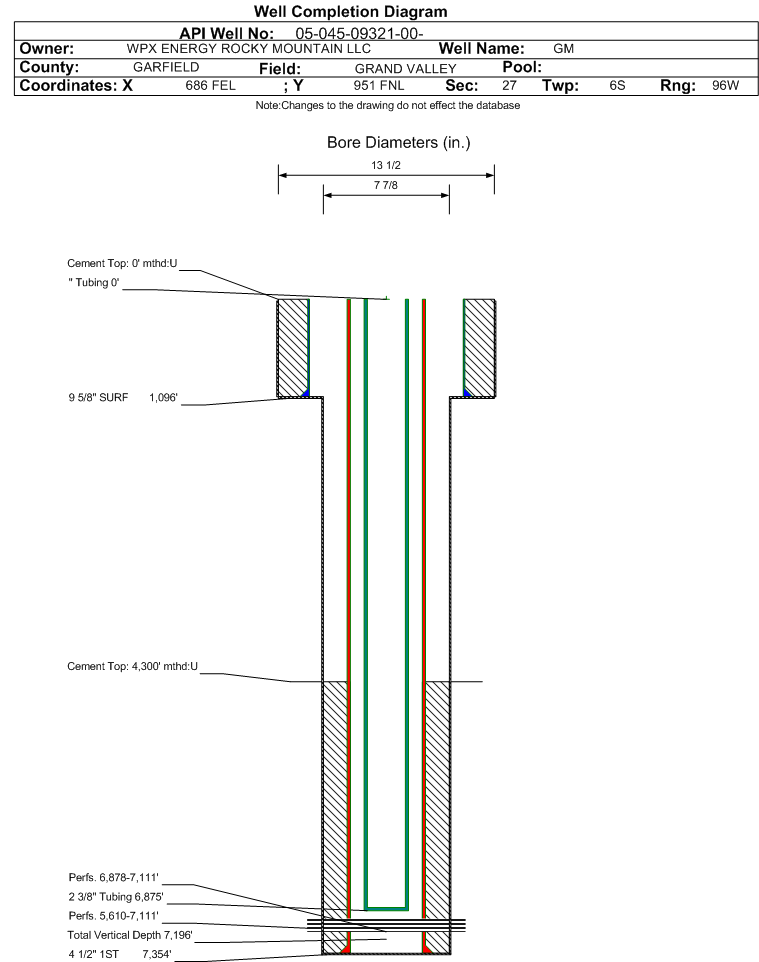

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 1096 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 468, Top: , Bottom: 1096 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7354 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 880, Top: 4300 ft., Bottom: 7354 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH2307 ft.NN
FORT UNION2616 ft.NN
MESAVERDE4205 ft.NN
CAMEO COAL6888 ft.NN
ROLLINS7333 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  CM - 12/8/2003                 Interval Top: 6878 ft.    Interval Bottom: 7111 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORKCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:12/3/2003
Treatment Summary:1000 GAL 7 1/2% HCL, 110,909# SAND, 2773 BBL. SLICK WATER./TOP 6397 BOTTOM 6566' W/13HOLES .43":750 GAL 7 1/2 HCL, 60,180# SAND,1829 BBL SLICK WATER.;5988-6275' W/16HOLES;1000 GAL 7 1/2% HCL 115,472# SAND.2829 BBL SLICK WATER;5610-5834';18HOLES;(CONT)
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WMFK.
Perforation Data:
Interval Top:6878 ft.# Of Holes:18
Interval Bottom:7111 ft.Hole Size:0.43 in.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 12/8/2003                 Interval Top: 5610 ft.    Interval Bottom: 7111 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:12/3/2003
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:6875 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/8/2003Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
CALC_MCF_GAS 1074
CASING_PRESS 1272
MCF_GAS 1074
TUBING_PRESS 1123
Perforation Data:
Interval Top:5610 ft.# Of Holes:65
Interval Bottom:7111 ft.Hole Size:0.43 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)21
Total Gas Produced (MCF)8692
GOR413904
GOR DeterminationMCFE
Average BOE per Day4.162
Average MCFE per Day24.158

 Federal Financial Assurance  i

 Tribal Well  i No
