COGIS - WELL SCOUT CARD

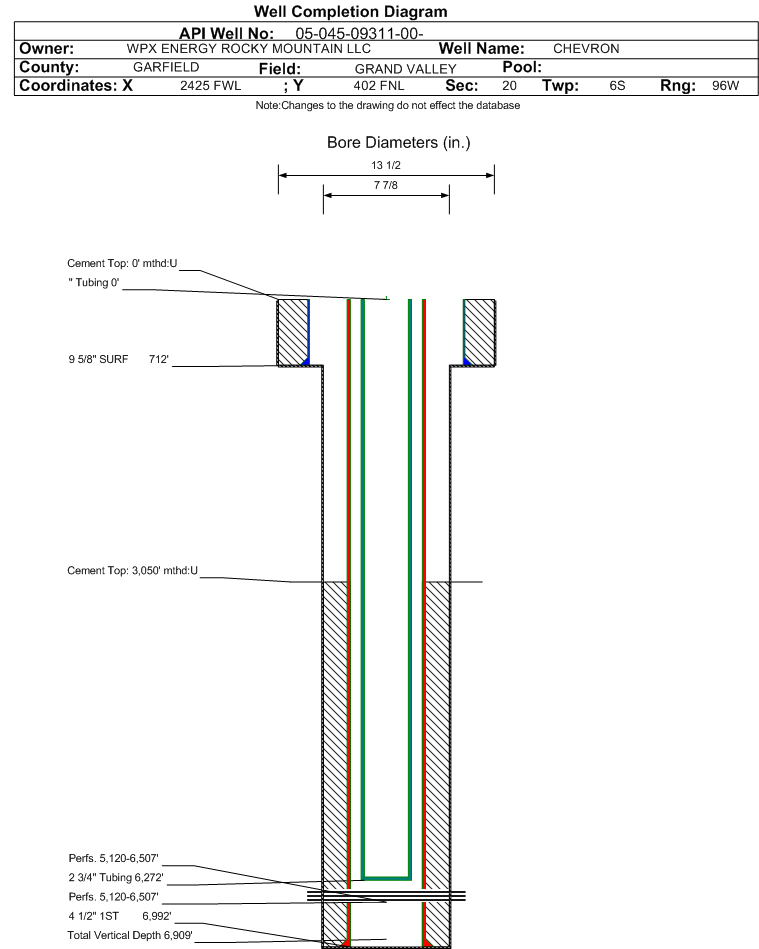

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09311		Well Classification: GW Status: PR - 8/1/2015
Well Name/No:CHEVRON #GM 331-20
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date8/1/2015
FacilityID:268910LocationID:335458
County:GARFIELD #045Location:NENW 20 6S96W 6
Field:GRAND VALLEY - #31290Elevation:5561 ft.
Basin:PICEANCE BASIN
Planned Location:402FNL  2425 FWLLat/Long: 39.515878 / -108.133427Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.516113 / -108.133232Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 8/1/2015             Measured TD: 7007 ft.    Vertical TD: 6909 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 8/1/2015
Wellbore PermitDIRECTIONAL
Permit #:20031250 Expiration Date:7/29/2004
Proposed Top PZ Location:Sec: Twp: Footage: 222 FNL  1825 FEL
Bottom Hole Location:Sec: Twp: Footage: 222 FNL  1825 FEL
Proposed Depth/Form:6980 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 320, Drill Unit: N/2
Wellbore Completed
Completion Date:12/13/2003
Spud Date:10/24/2003Spud Date Is:ACTUAL
Measured TD:7007 ft.Measured PB depth:6890 ft.
True Vertical TD:6909 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 222 FNL  1825 FEL
Bottom Hole Location:Sec: Twp: Footage: 222 FNL  1825 FEL
Log Types:THERMAL MULTIGATE DECAY LITHOLOGY, CBL.
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 712 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 300, Top: 0 ft., Bottom: 712 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 6992 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 830, Top: 3050 ft., Bottom: 6992 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1988 ft.NN
FORT UNION2286 ft.NN
MESAVERDE3748 ft.NN
CAMEO COAL6394 ft.NN
ROLLINS6877 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 8/1/2015                  Interval Top: 5120 ft.    Interval Bottom: 6507 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.313 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:12/13/2003
Treatment Summary:
Tubing Size:2.75 in.Tubing Setting Depth:6272 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/2/2004Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
CALC_MCF_GAS 1324
CASING_PRESS 938
MCF_GAS 1324
TUBING_PRESS 715
Perforation Data:
Interval Top:5120 ft.# Of Holes:76
Interval Bottom:6507 ft.Hole Size:

Formation WMFK                     Formation Classification:  GW                     Status:  CM - 3/20/2004                 Interval Top: 5120 ft.    Interval Bottom: 6507 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORKCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:12/13/2003
Treatment Summary:6488-6507';1000 GAL 7 1/2%HCL,99195#20/40,2379 BBL SLK WTR;5926-6332';750GAL 7 1/2% HCL,111843#20/40,2734 BBL SLK WTR;5470-5786';750 GAL 7 1/2% HCL,148293# 20/40,3403 BBL SLK WTR;5120-5396';750 GAL 7 1/2% HCL,1754115# 20/40,3857 BBL SLK WTR.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WMFK.
Perforation Data:
Interval Top:5120 ft.# Of Holes:76
Interval Bottom:6507 ft.Hole Size:
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
11/2024 - 10/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)1442
GOR
GOR DeterminationMCFE
Average BOE per Day0.680
Average MCFE per Day3.953

 Federal Financial Assurance  i

 Tribal Well  i No
