Wellbore #00 Wellbore Classification: GW Status: PA - 11/30/2016 Measured TD: 6535 ft. Vertical TD: 6535 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PA - 11/30/2016 | | Wellbore Permit | | | Permit #: | 20022301 | Expiration Date: | 7/29/2004 | | Proposed Depth/Form: | 6235 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | HUNTER MESA UNI | Unit Number: | COC 55279X | | Formation And Spacing: | Code: RLNS , Formation: ROLLINS , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: |
| | |

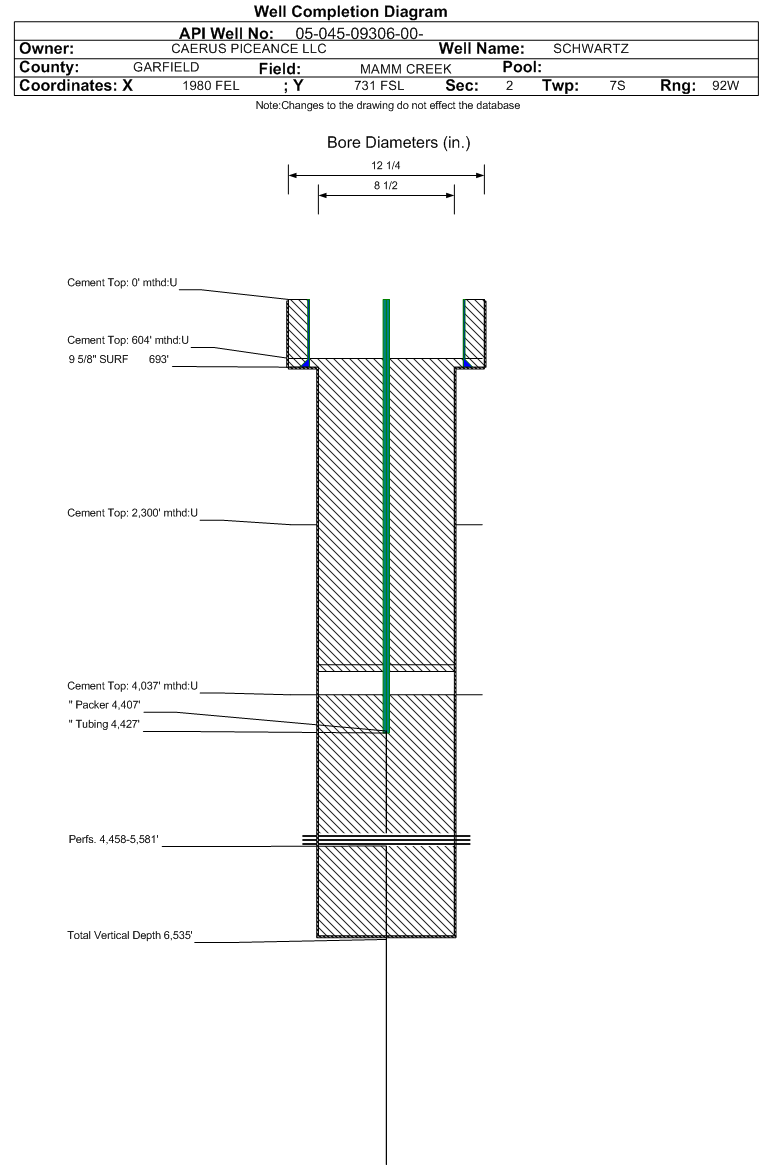

| Wellbore Completed | | Completion Date: | N/A | | Spud Date: | 1/16/2004 | Spud Date Is: | ACTUAL | | Measured TD: | 6535 ft. | Measured PB depth: | 5612 ft. | | True Vertical TD: | 6535 ft. | True Vertical PB depth: | 0 ft. | | Log Types: | CBL 4/8/04, CHDT/GR, UIL/GR, TEMP/GR/CCL, CBL 2/18/04, PEX-AITH-P-EXPRESS W/AIT/H | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 693 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 305, Top: 0 ft., Bottom: 693 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: , Top: 0 ft., Depth: 6501 ft., Weight: 23 , Citings Type: ACTUAL | | Cement: | Sacks: 1395, Top: 4037 ft., Bottom: 6501 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 3800 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1400, Top: 2300 ft., Bottom: 3800 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.2, Hole Size: , Size: , Top: , Depth: 2251 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 250, Top: 604 ft., Bottom: 3730 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | | N | N | | WASATCH G | 194 ft. | | | | | OHIO CREEK | 2325 ft. | | | | | WILLIAMS FORK | 2652 ft. | 6289 ft. | N | N | | ROLLINS | 6299 ft. | 6535 ft. | N | N |
Formation WMFK Formation Classification: GW Status: AB - 12/6/2016 Interval Top: 4458 ft. Interval Bottom: 5581 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 1/22/2008 | | Treatment Summary: | TIH AND DRILLED OUT CEMENT & BRIDGE PLUG AT 4390'. CLEANED OUT WELLBORE, LANDED TUBING AT 4427' AND RETURNED WELL TO PRODUCTION ON 01/22/2008. |
| | Tubing Size: | | Tubing Setting Depth: | 4427 ft. | | Tubing Packer Depth: | 4427 ft. | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 3/26/2005 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 14 | | BBLS_OIL | 1266 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 14 | | CALC_BBLS_OIL | 1266 | | CALC_GOR | 103 | | CALC_MCF_GAS | 131 | | CASING_PRESS | 850 | | MCF_GAS | 131 | | TUBING_PRESS | 450 |
| | Perforation Data: | | Interval Top: | 4458 ft. | # Of Holes: | | | Interval Bottom: | 5581 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | Y | 12/06/2016 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
