COGIS - WELL SCOUT CARD

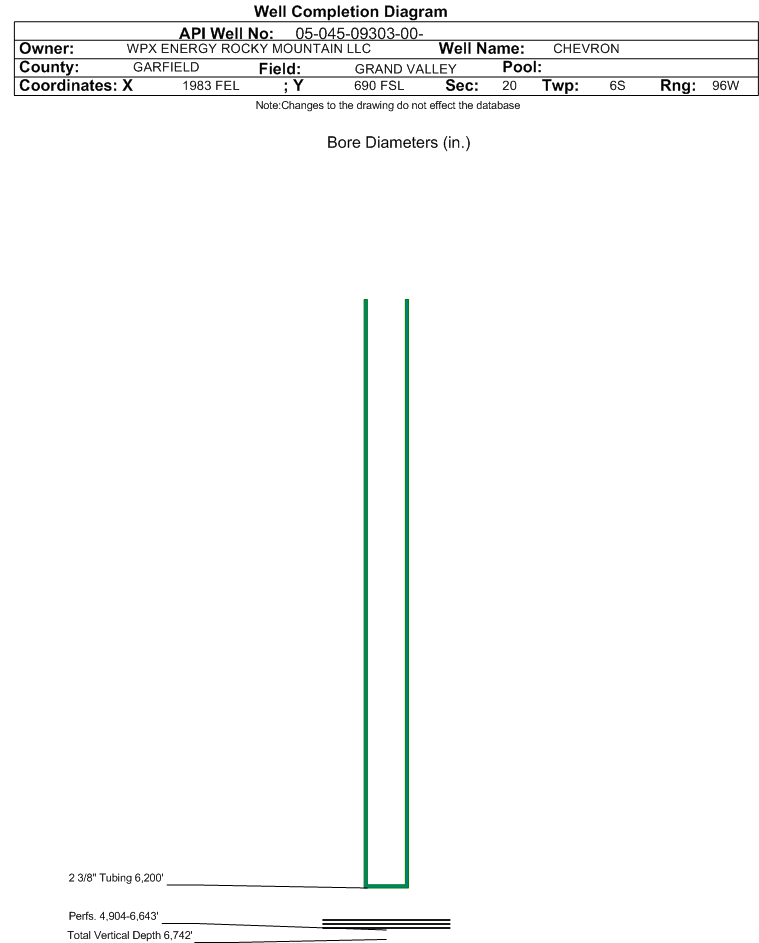

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09303		Well Classification: OW Status: PR - 6/26/2003
Well Name/No:CHEVRON #GM 434-20
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date6/26/2003
FacilityID:268849LocationID:335313
County:GARFIELD #045Location:SWSE 20 6S96W 6
Field:GRAND VALLEY - #31290Elevation:5526 ft.
Basin:PICEANCE BASIN
Planned Location:690FSL  1983 FELLat/Long: 39.504358 / -108.130337Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.504331 / -108.130199Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PR - 6/26/2003             Measured TD: 6765 ft.    Vertical TD: 6742 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PR - 6/26/2003
Wellbore PermitDIRECTIONAL
Permit #:20031200 Expiration Date:7/27/2004
Proposed Top PZ Location:Sec: Twp: Footage: 1100 FSL  2059 FEL
Bottom Hole Location:Sec: Twp: Footage: 1100 FSL  2059 FEL
Proposed Depth/Form:6820 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 160, Drill Unit: SE/4
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 850 ft., Weight: 32.3 , Citings Type: PLANNED
Cement:Sacks: 375, Top: 0 ft., Bottom: 850 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 6820 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 200, Top: , Bottom:
Wellbore Completed
Completion Date:2/28/2004
Spud Date:1/11/2004Spud Date Is:ACTUAL
Measured TD:6765 ft.Measured PB depth:6237 ft.
True Vertical TD:6742 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 1100 FSL  2059 FEL
Bottom Hole Location:Sec: Twp: Footage: 1100 FSL  2059 FEL
Log Types:HIGH DEFINITION IND.,COMP Z-DENSILOG, COMP NEU.,,GR,CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1976 ft.NN
FORT UNION2290 ft.NN
MESAVERDE3705 ft.NN
CAMEO COAL6230 ft.NN
ROLLINS6709 ft.NN

Formation WFCM                     Formation Classification:  OW                     Status:  PR - 4/1/2013                  Interval Top: 4904 ft.    Interval Bottom: 6643 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:2/28/2004
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:6200 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/12/2004Test Method:
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
CALC_MCF_GAS 1231
CASING_PRESS 1594
TUBING_PRESS 1409
Perforation Data:
Interval Top:4904 ft.# Of Holes:87
Interval Bottom:6643 ft.Hole Size:43 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)12
Total Gas Produced (MCF)8956
GOR746333
GOR DeterminationMCFE
Average BOE per Day4.263
Average MCFE per Day24.736

 Federal Financial Assurance  i

 Tribal Well  i No
