COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09292		Well Classification: GW Status: PR - 7/1/2021
Well Name/No:CHEVERON #GM 12-20
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date7/1/2021
FacilityID:268766LocationID:335426
County:GARFIELD #045Location:SWNW 20 6S96W 6
Field:GRAND VALLEY - #31290Elevation:5744 ft.
Basin:PICEANCE BASIN
Planned Location:1914FNL  662 FWLLat/Long: 39.511678 / -108.139628Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.511821 / -108.139529Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 7/1/2021             Measured TD: 6975 ft.    Vertical TD: 6948 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 7/1/2021
Wellbore PermitDIRECTIONAL
Permit #:20041473 Expiration Date:7/1/2005
Proposed Top PZ Location:Sec: Twp: Footage: 1784 FNL  642 FWL
Bottom Hole Location:Sec: Twp: Footage: 1784 FNL  642 FWL
Proposed Depth/Form:7040 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 510-10 , Unit Acreage: 320, Drill Unit: N/2
Wellbore Completed
Completion Date:3/4/2005
Spud Date:12/25/2004Spud Date Is:ACTUAL
Measured TD:6975 ft.Measured PB depth:5953 ft.
True Vertical TD:6948 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 1784 FNL  642 FWL
Bottom Hole Location:Sec: Twp: Footage: 1784 FNL  642 FWL
Log Types:HIGH RESOLUTION IND.,SPECTRAL DEN,DUAL SPACED NEU,CBL

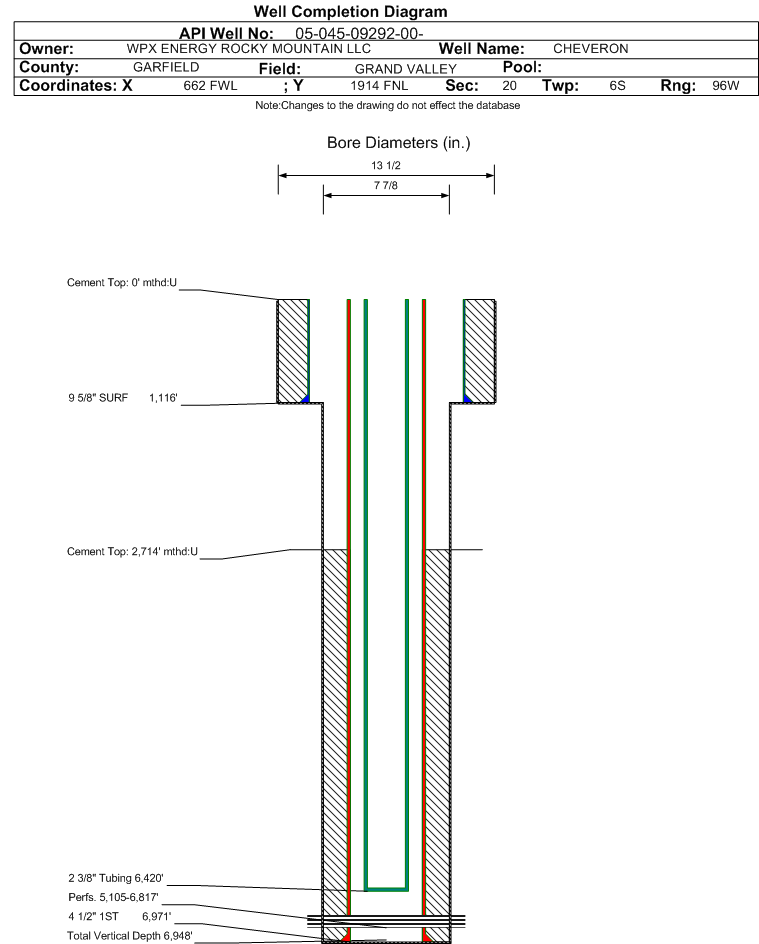

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 1116 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 375, Top: , Bottom: 1116 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 6971 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 990, Top: 2714 ft., Bottom: 6970 ft., Determination Method:
FormationInterval TopLog BottomCoredDSTs
WASATCH G2172 ft.NN
FORT UNION2498 ft.NN
MESAVERDE3875 ft.NN
CAMEO COAL6410 ft.NN
ROLLINS6901 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 7/1/2021                  Interval Top: 5105 ft.    Interval Bottom: 6817 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.250 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:3/4/2005
Treatment Summary:2500 GALS 7 1/2% HCL, 391900# 30/50, 9392 BBLS SLICKWATER
Tubing Size:2.375 in.Tubing Setting Depth:6420 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/10/2005Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1345
CASING_PRESS 1185
MCF_GAS 1345
TUBING_PRESS 1016
Perforation Data:
Interval Top:5105 ft.# Of Holes:71
Interval Bottom:6817 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)19
Total Gas Produced (MCF)15822
GOR832736
GOR DeterminationMCFE
Average BOE per Day7.525
Average MCFE per Day43.670

 Federal Financial Assurance  i

 Tribal Well  i No
