COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09290		Well Classification: OW Status: PR - 7/23/2003
Well Name/No:CHEVRON GM #21-20
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date7/23/2003
FacilityID:268762LocationID:335458
County:GARFIELD #045Location:NENW 20 6S96W 6
Field:GRAND VALLEY - #31290Elevation:5564 ft.
Basin:PICEANCE BASIN
Planned Location:388FNL  2430 FWLLat/Long: 39.515918 / -108.133407Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.516153 / -108.133214Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PR - 6/26/2003             Measured TD: 6901 ft.    Vertical TD: 6845 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PR - 6/26/2003
Wellbore PermitDIRECTIONAL
Permit #:20031199 Expiration Date:7/22/2004
Proposed Top PZ Location:Sec: Twp: Footage: 280 FNL  1853 FWL
Bottom Hole Location:Sec: Twp: Footage: 280 FNL  1853 FWL
Proposed Depth/Form:6935 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 320, Drill Unit: N/2
Wellbore Completed
Completion Date:12/13/2003
Spud Date:11/17/2003Spud Date Is:ACTUAL
Measured TD:6901 ft.Measured PB depth:6860 ft.
True Vertical TD:6845 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 280 FNL  1853 FWL
Bottom Hole Location:Sec: Twp: Footage: 280 FNL  1853 FWL
Log Types:DUAL INDUCTION,SPECTRAL DENSITY,DUAL SPACED NEUTRON, CBL

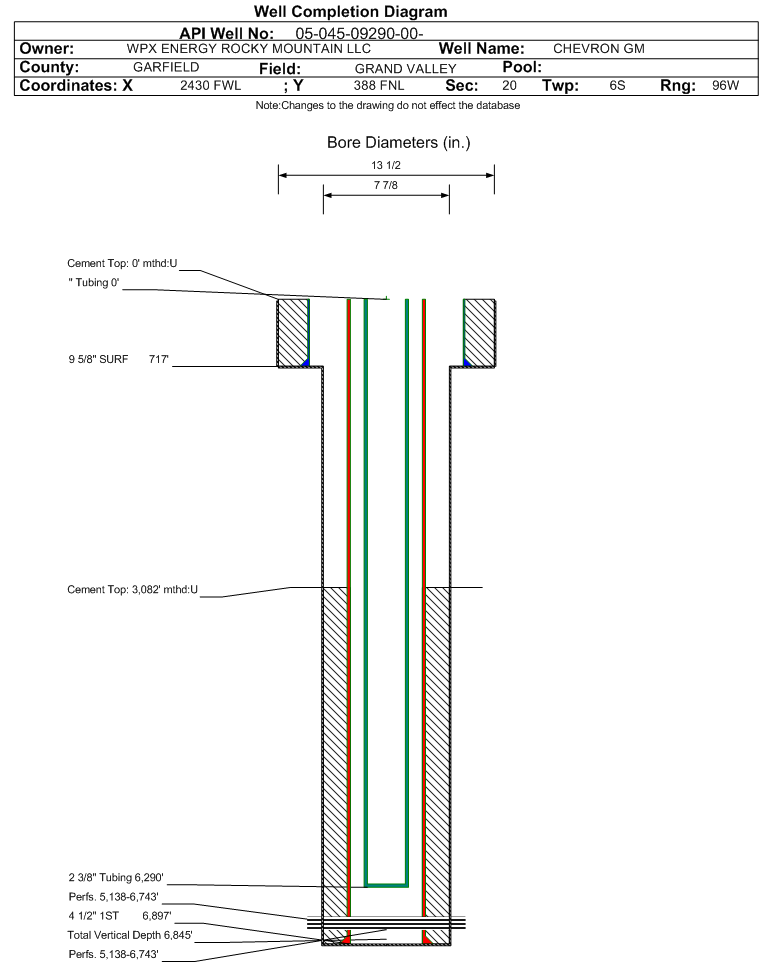

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 717 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 300, Top: 0 ft., Bottom: 717 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 6897 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 840, Top: 3082 ft., Bottom: 6897 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G2039 ft.NN
FORT UNION2337 ft.NN
MESAVERDE3773 ft.NN
CAMEO COAL6339 ft.NN
ROLLINS6826 ft.NN

Formation WFCM                     Formation Classification:  OW                     Status:  PR - 4/1/2013                  Interval Top: 5138 ft.    Interval Bottom: 6743 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:12/13/2003
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:6290 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/20/2004Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
MCF_GAS 1072
Perforation Data:
Interval Top:5138 ft.# Of Holes:77
Interval Bottom:6743 ft.Hole Size:

Formation WMFK                     Formation Classification:  OW                     Status:  CM - 2/20/2004                 Interval Top: 5138 ft.    Interval Bottom: 6743 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORKCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:12/13/2003
Treatment Summary:6323-6743'1000 GAL 7 1/2% HCL. 124223# 20/40, 2928 BBL SLICK WATER.;5868-6048';1000 GAL7 1/2% HCL,119652# 20/40,2764 BBLS SLICK WTR;5484-5747';1000GAL 7 1/2% HCL,118435# 20/40, 3744 BBLS SLICK WTR. 5138-5394';750 GALS 7 1/2% HCL,140092# 20/40, 3157 BBLS S
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WMFK.
Perforation Data:
Interval Top:5138 ft.# Of Holes:77
Interval Bottom:6743 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)26
Total Gas Produced (MCF)22055
GOR848269
GOR DeterminationMCFE
Average BOE per Day10.486
Average MCFE per Day60.851

 Federal Financial Assurance  i

 Tribal Well  i No
