COGIS - WELL SCOUT CARD

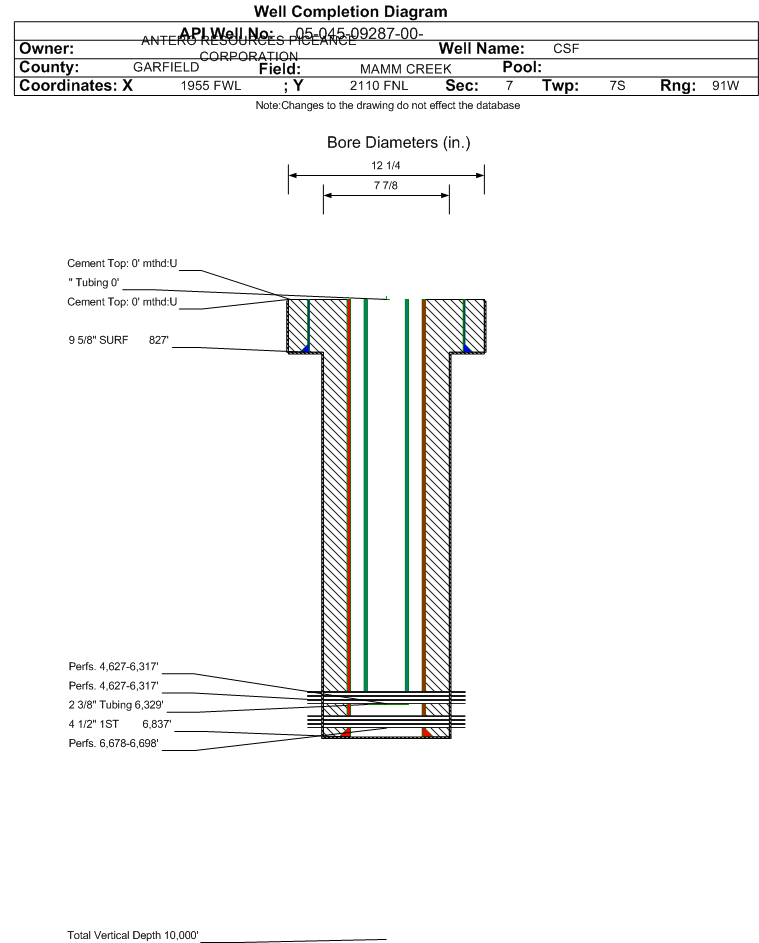

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09287		Well Classification: GW Status: PR - 3/1/2017
Well Name/No:CSF #22C-07-07-91
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC 66578
Facility Status:PRStatus Date3/1/2017
FacilityID:268723LocationID:335055
County:GARFIELD #045Location:SENW 7 7S91W 6
Field:MAMM CREEK - #52500Elevation:6831 ft.
Basin:PICEANCE BASIN
Planned Location:2110FNL  1955 FWLLat/Long: 39.463121 / -107.598861Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.463211 / -107.598952Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 3/1/2017             Measured TD: 6850 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 3/1/2017
Wellbore PermitDRIFTED
Permit #:20031278 Expiration Date:7/20/2004
Proposed Depth/Form:7200 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Casing:String Type: CONDUCTOR, Hole Size: 17.5 in., Size: 14 in., Top: , Depth: 40 ft., Weight: 36 , Citings Type: PLANNED
Cement:Sacks: 31, Top: 0 ft., Bottom: 40 ft.
Wellbore Completed
Completion Date:11/24/2003
Spud Date:8/14/2003Spud Date Is:ACTUAL
Measured TD:6850 ft.Measured PB depth:6660 ft.
True Vertical TD:True Vertical PB depth:
Log Types:DUAL LATEROLOG,SDDSNL.TMDLL,EMIL, CBL,BOREHOLE BREAKOUT ANAYLST LOG
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 827 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 350, Top: 0 ft., Bottom: 827 ft., Determination Method: CBL
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6837 ft., Weight: 12.75 , Citings Type: ACTUAL
Cement:Sacks: 2030, Top: 0 ft., Bottom: 6837 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.2439 ft.NN
OHIO CREEK2439 ft.2819 ft.NN
WILLIAMS FORK2819 ft.6349 ft.NN
CAMEO COAL6349 ft.6637 ft.NN
ROLLINS6643 ft.NN

Formation RLNS                     Formation Classification:  GW                     Status:  AB - 9/15/2009                 Interval Top: 6678 ft.    Interval Bottom: 6698 ft.

 Completed Information for Formation ROLLINS
1st Production Date:N/AChoke Size:0.281 in.
Formation Name:ROLLINSCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/1/2003
Treatment Summary:RLNS: FRAC'D W/ 147,747 GALS SLICKWATER & 81,001# 20/40 OTTAWA SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/17/2003Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:FLARED
Test TypeMeasure
BBLS_H2O 984
BBLS_OIL 0
CALC_BBLS_H2O 984
CALC_BBLS_OIL 0
CALC_GOR 0
CALC_MCF_GAS 302
CASING_PRESS 818
MCF_GAS 302
Perforation Data:
Interval Top:6678 ft.# Of Holes:80
Interval Bottom:6698 ft.Hole Size:0.32 in.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 3/1/2017                  Interval Top: 4627 ft.    Interval Bottom: 6317 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:11/26/2005Choke Size:0.281 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/1/2003
Treatment Summary:WFCM: FRAC'D W/ 741,434 GALS SLICKWATER & 528,592 20/40 OTTAWA SAND.
Tubing Size:2.375 in.Tubing Setting Depth:6329 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/5/2003Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:FLARED
Test TypeMeasure
BBLS_H2O 264
BBLS_OIL 96
BTU_GAS 1197
CALC_BBLS_H2O 264
CALC_BBLS_OIL 96
CALC_GOR 607
CALC_MCF_GAS 583
CASING_PRESS 975
MCF_GAS 583
TUBING_PRESS 400
Perforation Data:
Interval Top:4627 ft.# Of Holes:221
Interval Bottom:6317 ft.Hole Size:0.32 in.

Formation WMFK                     Formation Classification:  GW                     Status:  CM - 3/11/2009                 Interval Top: 4627 ft.    Interval Bottom: 6317 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:0.281 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:11/24/2003
Treatment Summary:FRAC'D 6069'-6315' WITH 180,343 GALS.SLICKWATER AND 112,544 LBS 20/40 OTTAWS SAND, FRAC'D 5590'-5859' WITH 183,425 GAL SLICKWATER AND 120,531 LBS.20/40 OTTAWA SAND; FRAC'D 5046'-5545' WITH 194,812 GALS. SLICKWATER AND 161,574 LBS.20/40 OTTAWA SAND, FRAC'D
Tubing Size:2.375 in.Tubing Setting Depth:6329 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/5/2003Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:FLARED
Test TypeMeasure
BBLS_H2O 264
BBLS_OIL 96
CALC_BBLS_H2O 264
CALC_BBLS_OIL 96
CALC_GOR 6073
CALC_MCF_GAS 583
CASING_PRESS 975
MCF_GAS 583
TUBING_PRESS 400
Perforation Data:
Interval Top:4627 ft.# Of Holes:221
Interval Bottom:6317 ft.Hole Size:
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
11/2024 - 10/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)12
Total Gas Produced (MCF)1642
GOR136833
GOR DeterminationMCFE
Average BOE per Day0.805
Average MCFE per Day4.691

 Federal Financial Assurance  i Y

 Tribal Well  i No
